SMG2750
MTU
Key Specification
Application Fields
1.Industrial Field: Building foundations, trenching, demolition
2.Commercial Field: Data centers, telecom base stations, shopping malls,hotels, office buildings, banks and securities institutions.
3.Public Infrastructure: Hospitals,airports, subways,schools and government facilities.
4.Special Scenarios:Remote areas (islands, plateaus), marine vessels,offshore platforms and disaster relief sites.
Key Configurations
Genset features
1. Engine and alternator shall be mounted on a same frame steel skid.
2. Built-in damper for anti-vibration.
3. World-famous diesel engine brand.
4. World-famous AC alternators brand.
5. Intelligent and reliable control module.
6. Full range protection function and alarm shutdown feature.
Alternator Feature
1. Brush-less, 4 poles, rotation magnet.
2. IP21-23) enclosure is standard for all industrial alternators.
3. The insulation system is Class H
4. Wide range of flange adapters and single bearing disc coupling.
5. AVR auto voltage regulator, auto exciter, auto adjustment
ATS System
If the generator set will be used as a standby power, the auto transfer switch (ATS) is necessary and essential. Because ATS can automatically transfer load from Mains power to generator set. In normal, when the Main power fails or voltage drops below 80% of the normal voltage, ATS will auto start standby generator set after a preset time of 0-10 sec (adjustable according to the users). Once generator reaches at rated speed, the ATS will transfer the load to standby generator sets automatically.
Genset model: MTU/SMG2750 | Fuel type: Diesel | ||

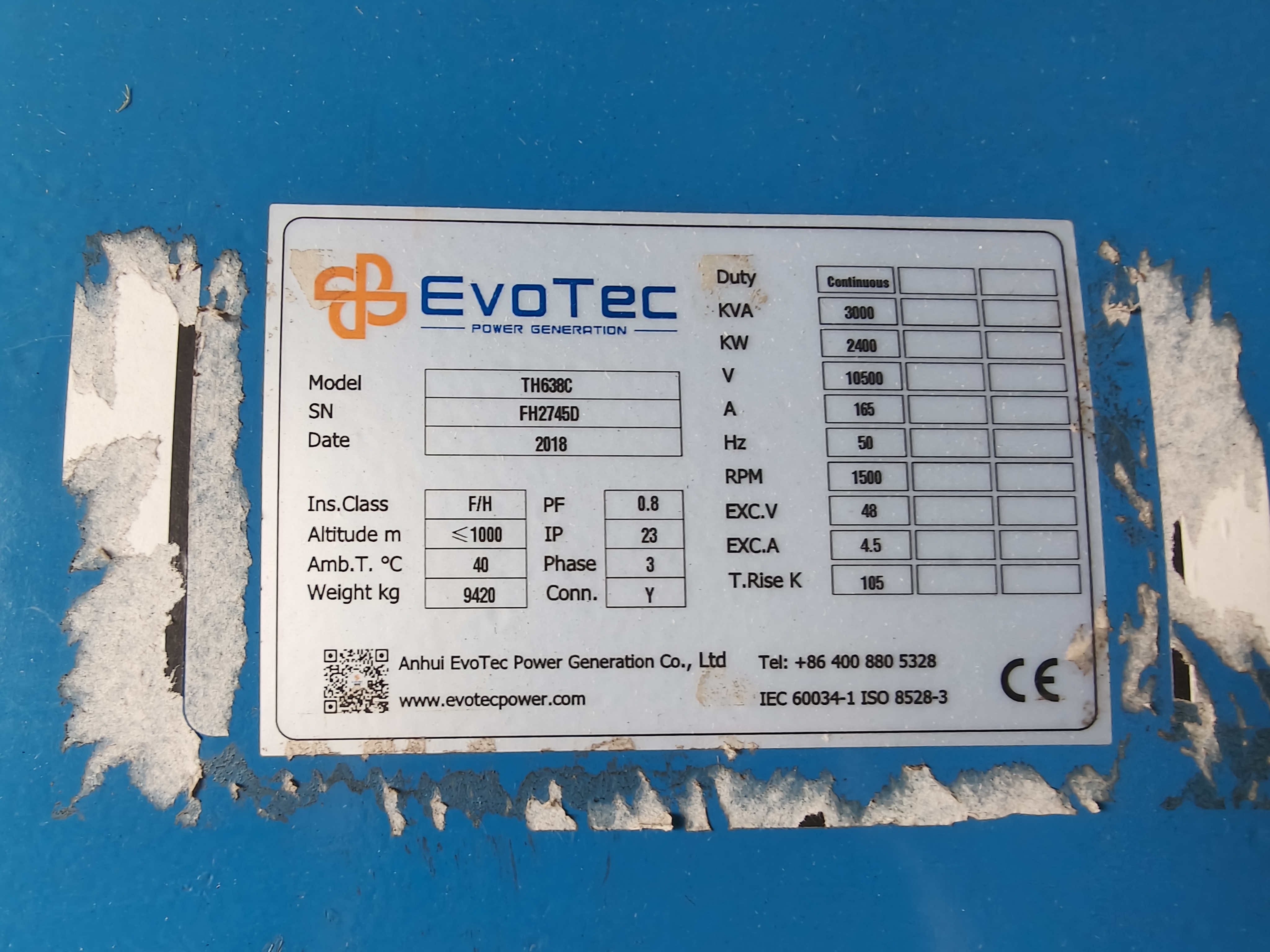

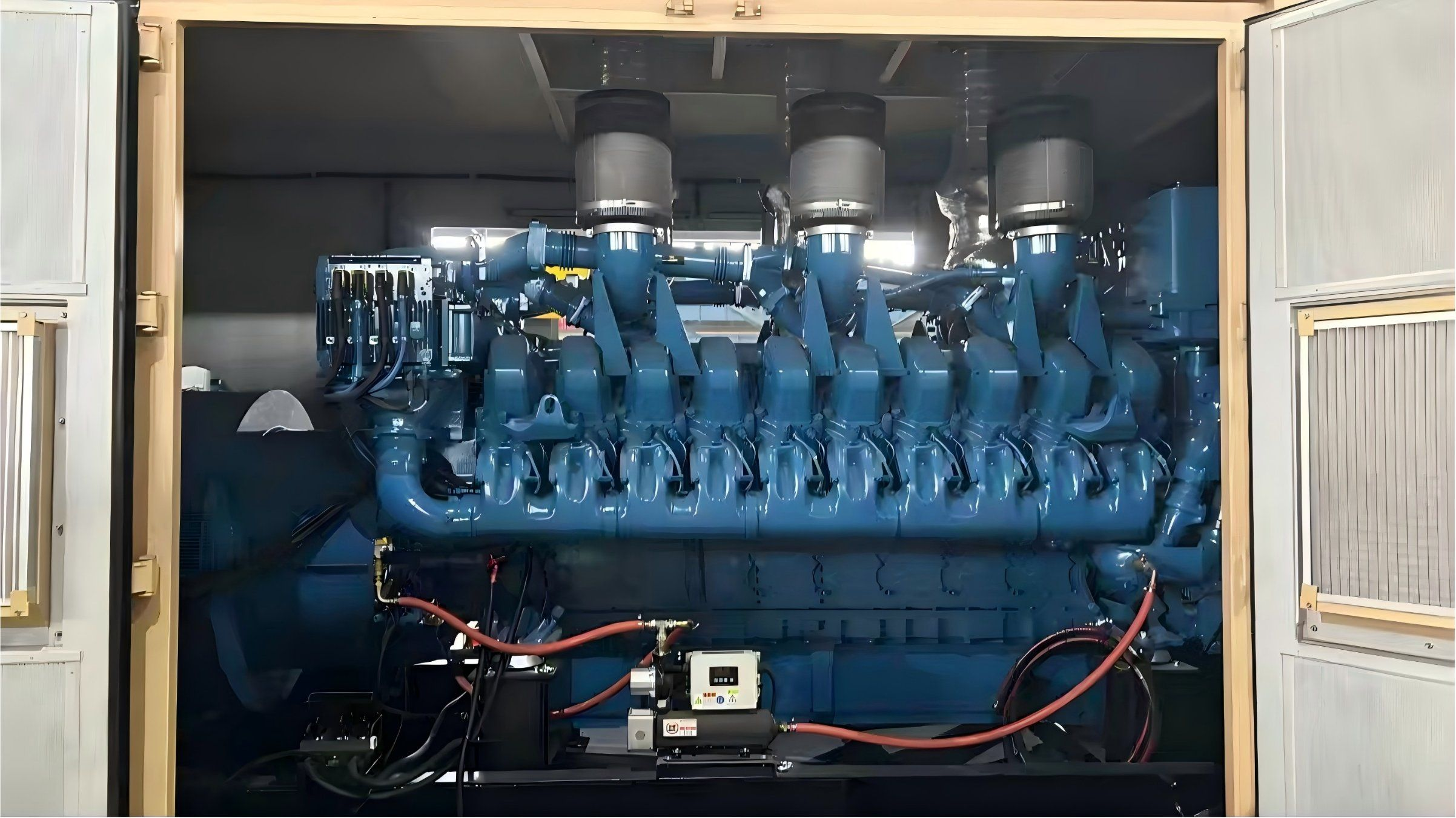

Engine brand&Model: MTU/20V4000G23 | Alternator brand: MTU/TH638C | ||
Out-put Power(KW/KVA): 2000/2500 | Speed(RPM): 1500 | ||
Output Type: AC Three Phase | Stroke: 20 Stroke | ||
Sound Level(DB): 60-105 | Conditions of use: Land use | ||
Dimension(MM): 13200*3000*3200 | Gross weight(KGS): 40200 | ||
Standard Accessory: Exhaust Silencer, Flexible Pipe, Battery Cables, battery, air breaker | |||
Optional Parts: Parallel System, Fuel Tank, wheels, ATS | |||
No Warranty Period for Used Generator | |||
1. Perfect protection;
2. Different power solutions can be customized according to different voltage, frequency, power.
3. Wide power coverage (6-3000KVA), and equipped with world famous engine, alternator and control brands;
4. Can be started and carry with full load within 12s;
5. Compact structural design with lugs for hoisting transportation;
6. Vertical and base fuel tank with basting pre-treatment, making it possible for longer life span in outdoor use;
7. International and professional control module promise Simple operation and stable performance;
8. Multiple optional configuration: ATS, synchronizing, preheating, tropical radiator, remote monitor and control
system, etc;
9. Strict load test from 0, 10%, 20%, 50%, 75% to 100% before delivery;
10.Complete accessory;
FAQ
1.Q: What is your minimum order quantity for this product?
A: 1 Set.
2. Q: What is your generator power range?
A: 10kw-5000kw.
3. Q: Is it okay to make the customer's own brand?
A: We can be your OEM manufacturer.
4. Q: What is the delivery time?
A: The fastest 15 working days after receiving the 30% T/T deposit.
5. Q: Where is your loading port?
A: Shenzhen port or according to customers' requirement.
6. Q: What is your company's available production capacity?
A: 500 units per year.
7.Q: What is the warranty period?
A: 12 months after shipment or 1000 working hours.
