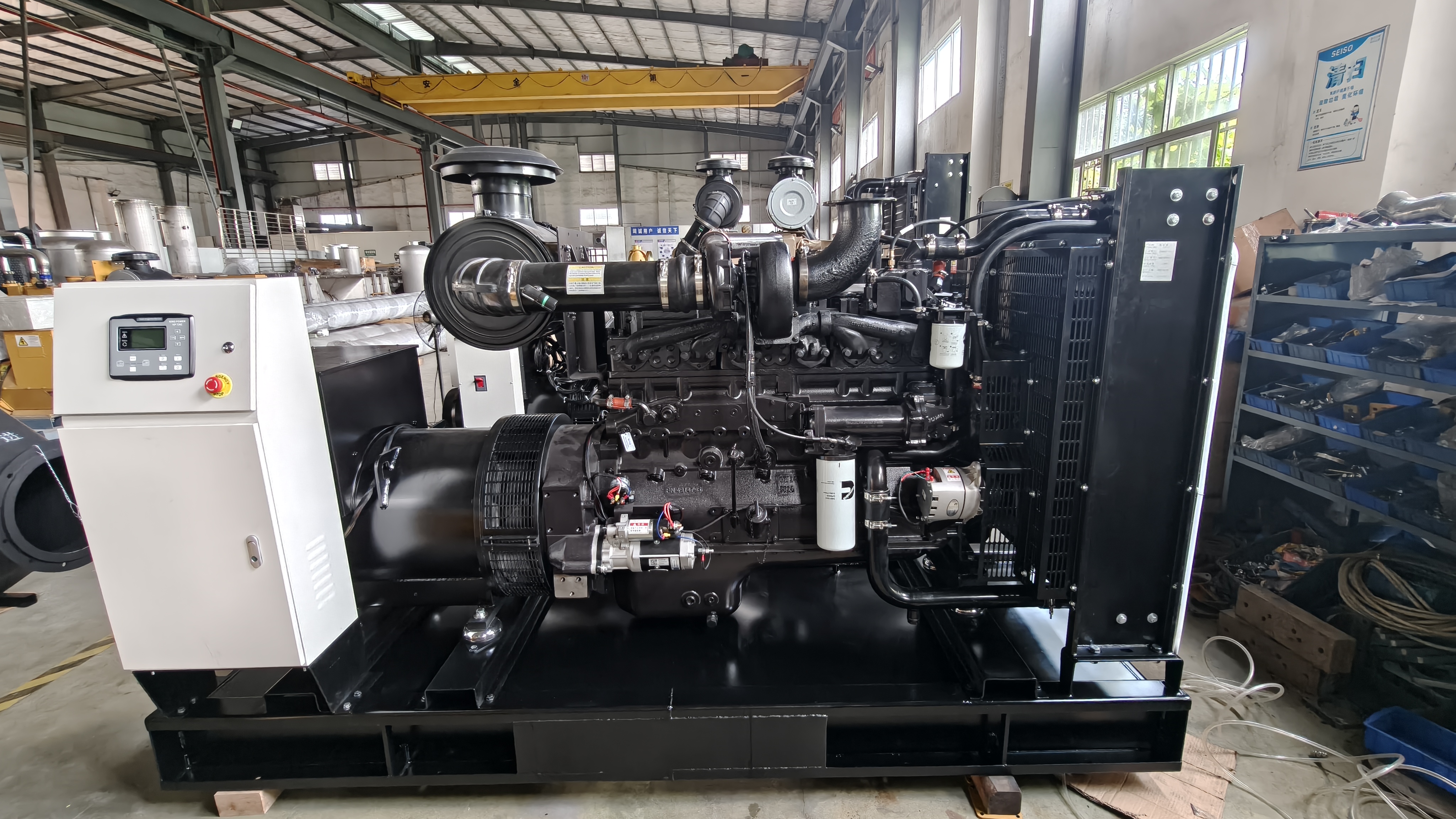

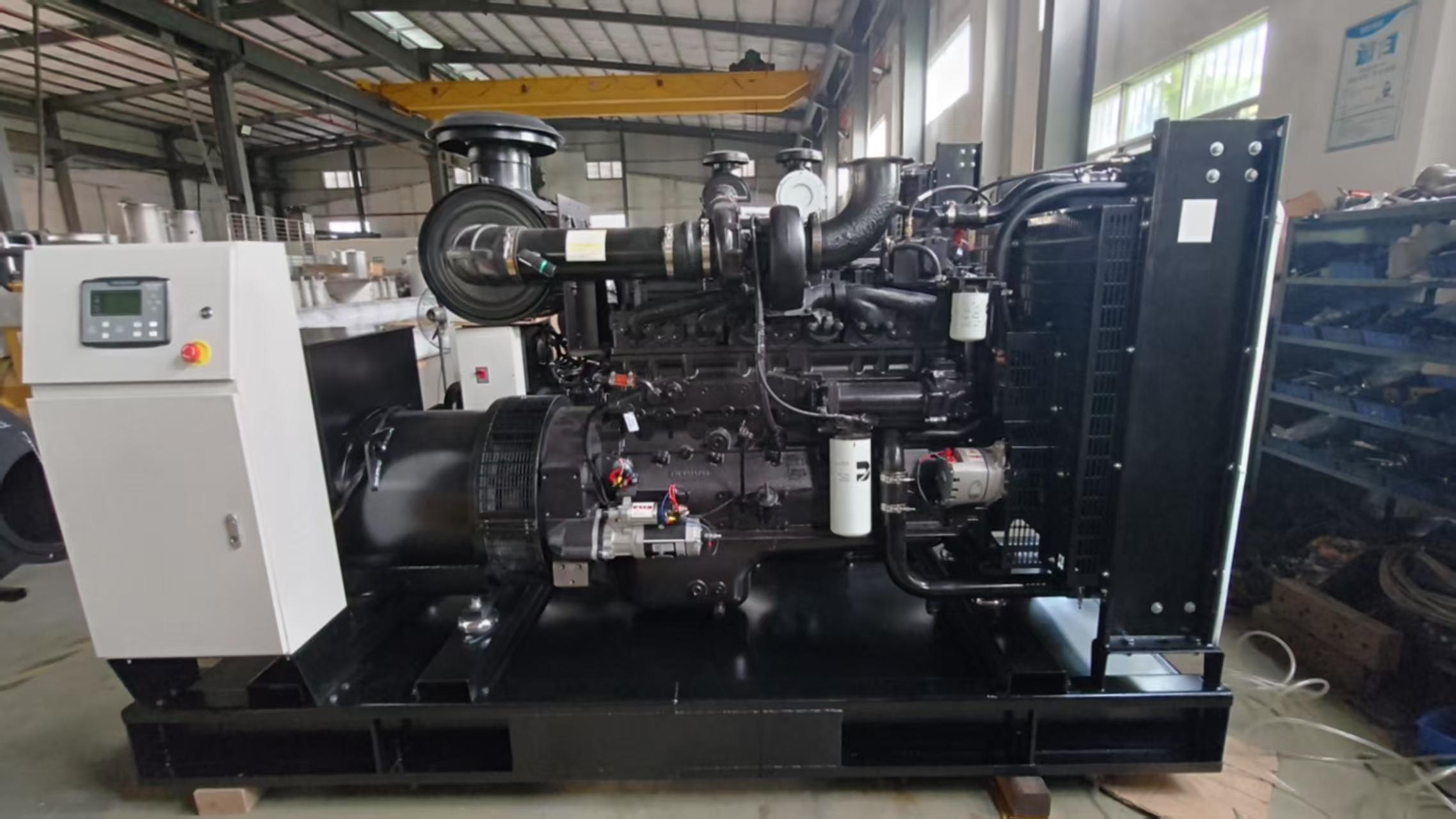

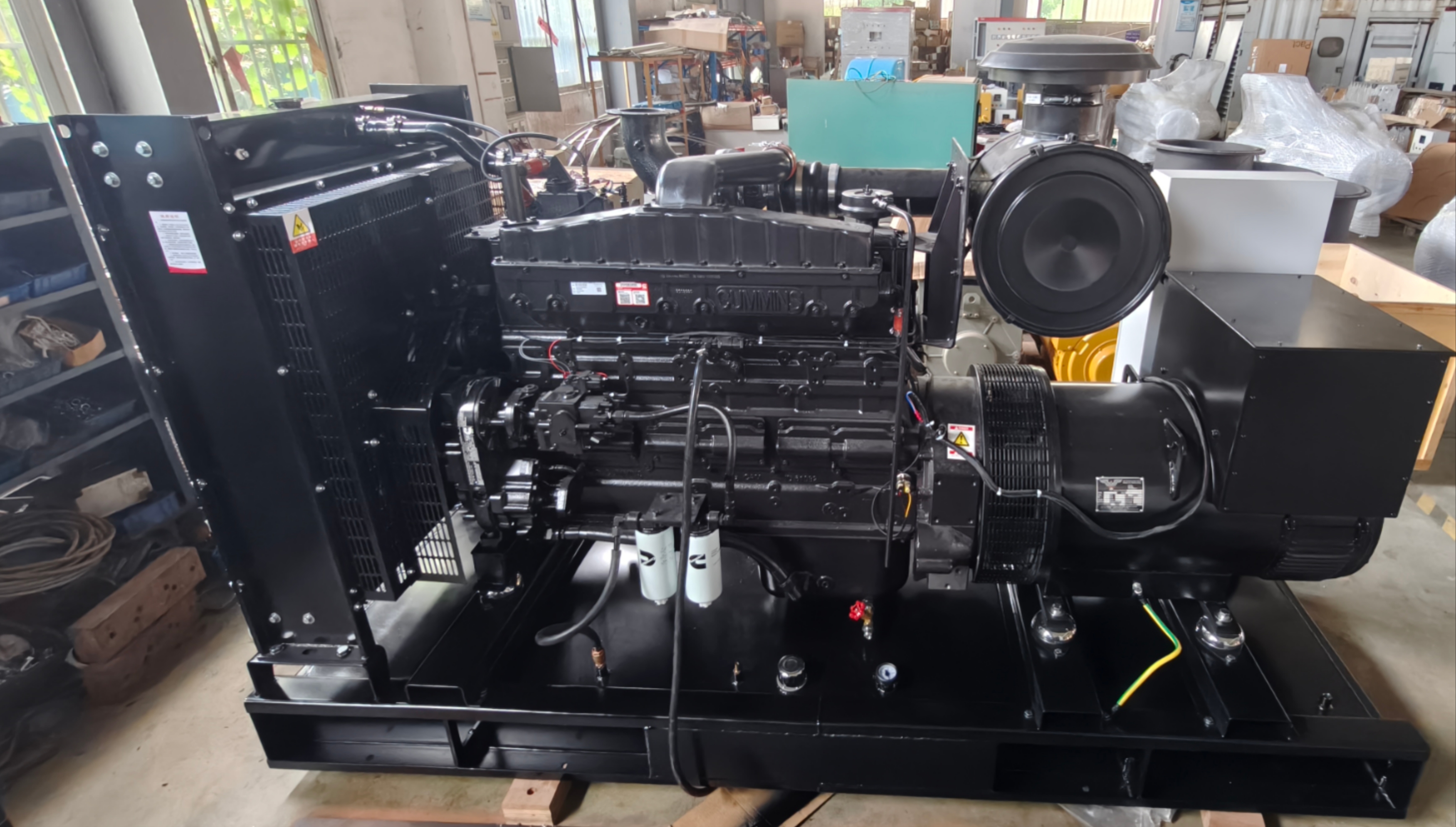

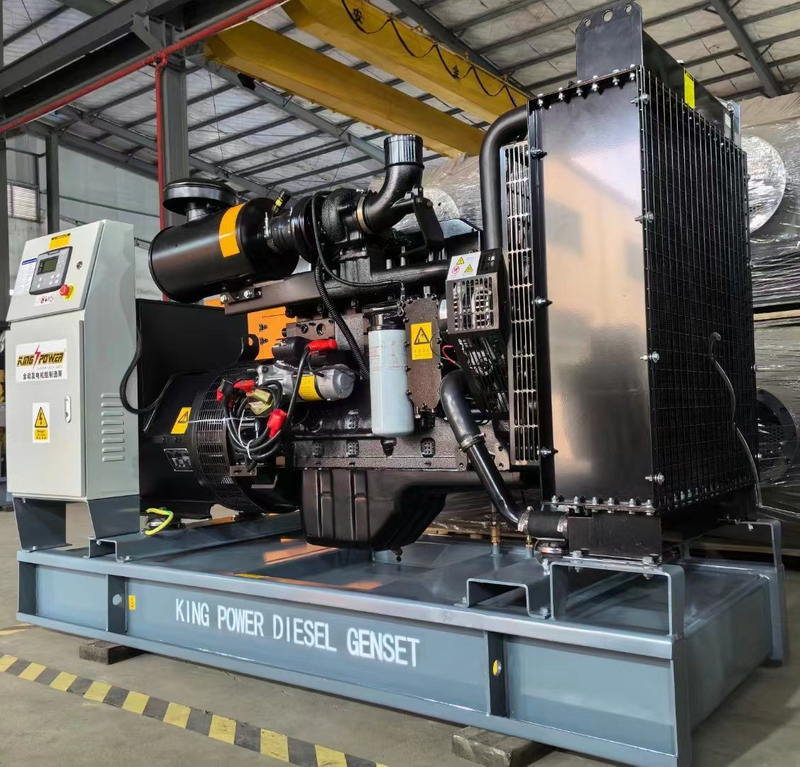

Hot Sale! High-Efficiency 300KW/375KVA 3-Phase 50Hz Diesel Generator Set

Industrial Grade 300KW/375KVA 50Hz 3-Phase Diesel Generator Set

Model: KPG375C
Application: Prime/Standby Power for Heavy Industry, Data Centers, Hospitals, Mining Operations

Core Components & Technical Specifications

1. Prime Mover

• Type: 6-Cylinder, Turbocharged & Intercooled, Inline Diesel Engine

• Displacement: 14.0L

• Rated Power: 360KW (483HP) @ 1500rpm

• Fuel Consumption: ≤205g/kW·h (Full Load)

• Cooling System: Integrated Radiator with Thermostatic Control

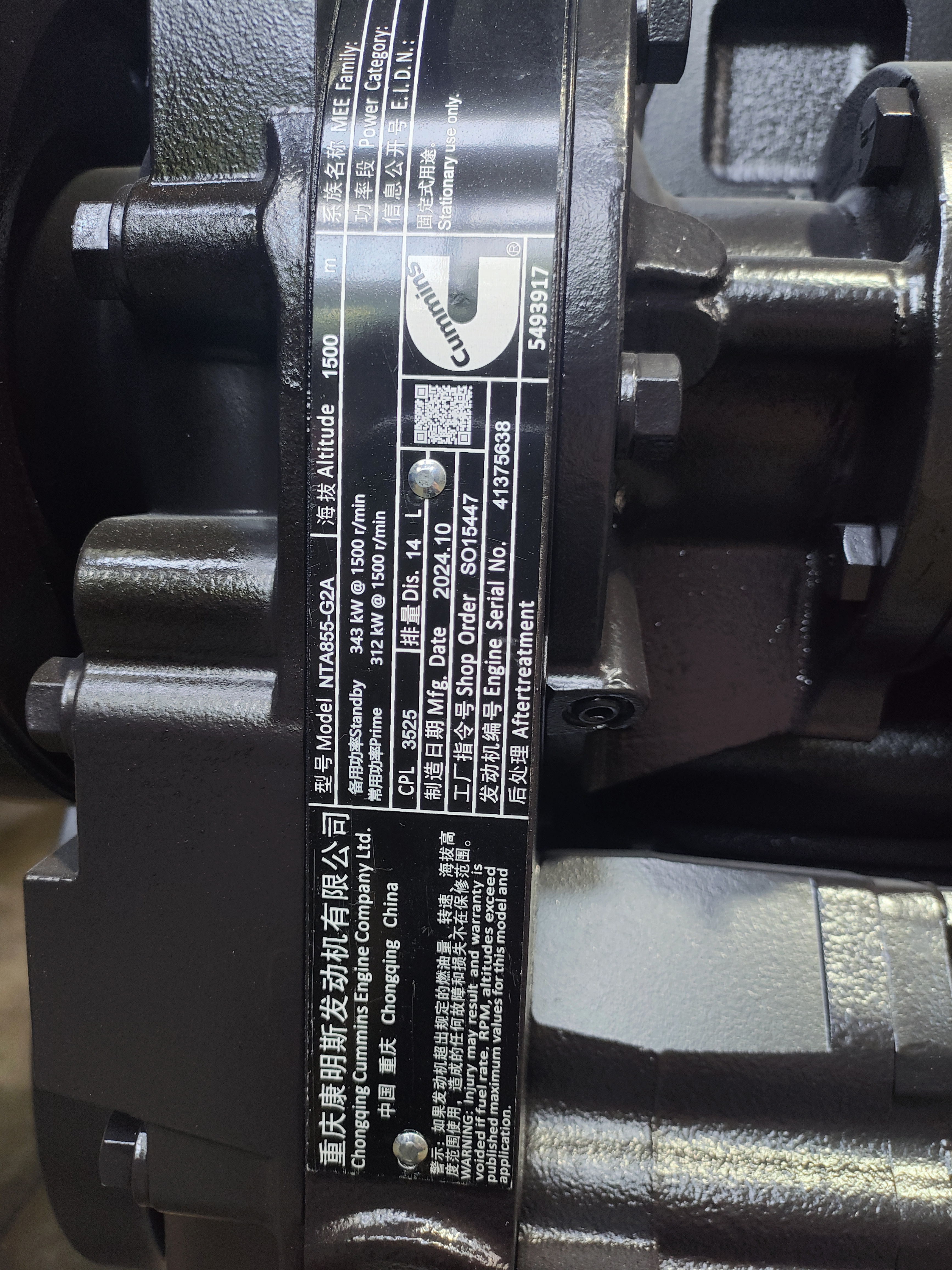

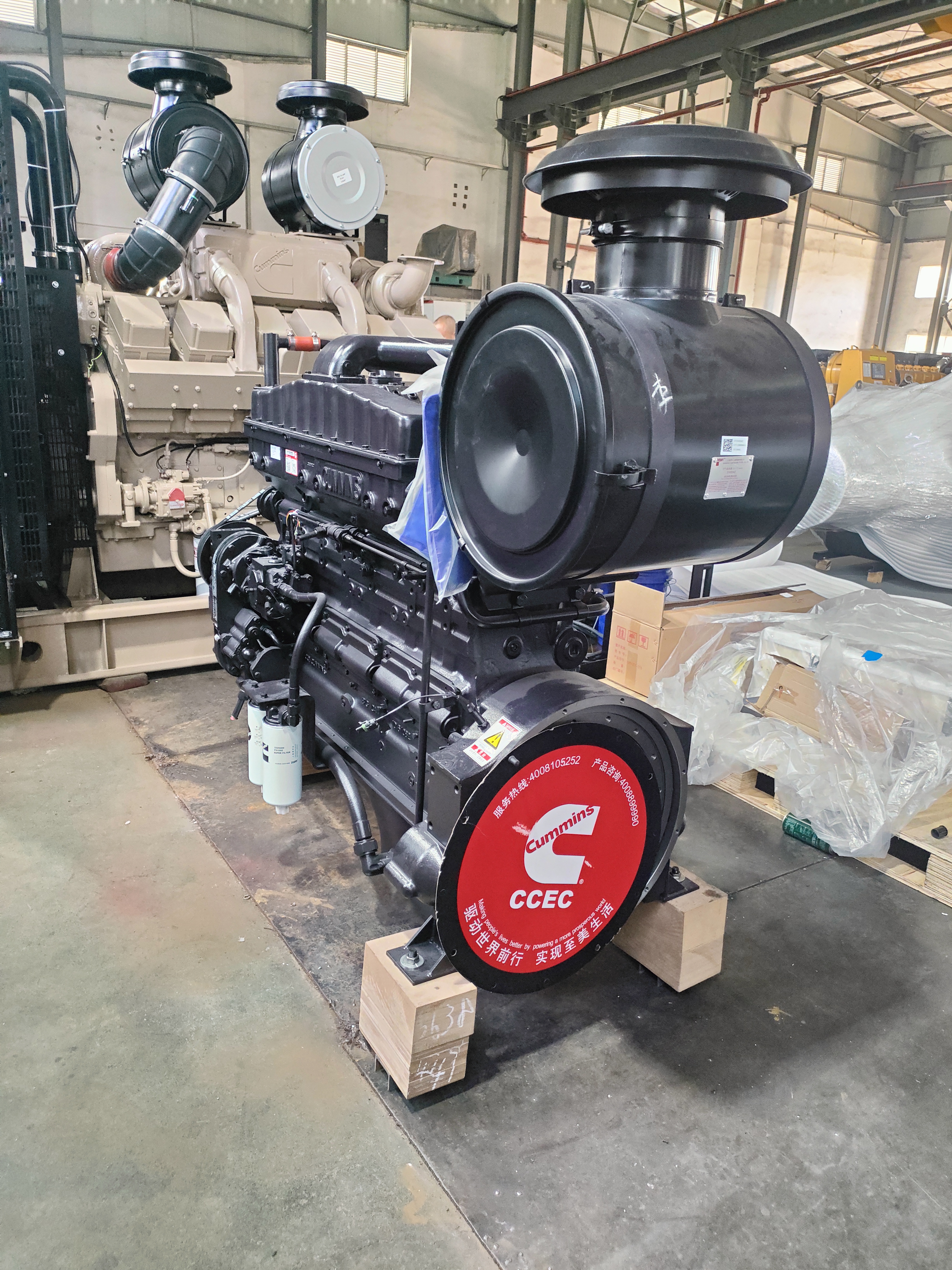

• Engine Model: Cummins NTA855-G2A (Tier 2/Stage II Compliant)

2. Alternator

• Type: Brushless, Self-Excited, 4-Pole Synchronous Alternator

• Output: 375KVA/300KW (0.8 Power Factor)

• Voltage Regulation: ±0.5% (Static), ±1.5% (Transient)

• Insulation Class: H (180°C Continuous Rating)

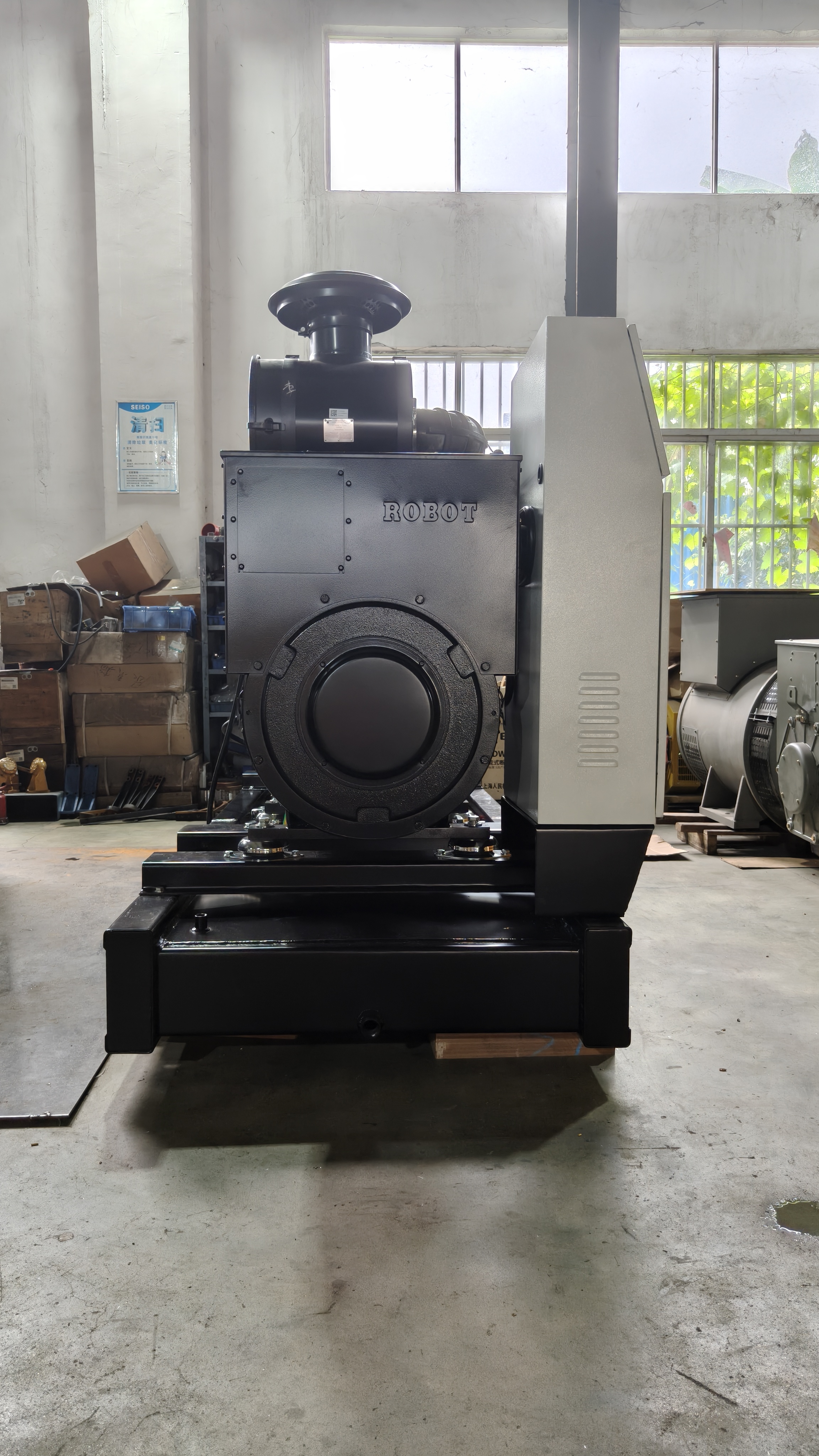

• Brand/Model: Robot RB-300-4

3. Control System

• Display: 5.7" LCD with Multi-Language Support

• Functions:

• Auto Start/Stop (ATS Compatible)

• Real-Time Monitoring (Voltage, Frequency, Oil Pressure, etc.)

• Fault Diagnosis & Alarm Logging

• Remote Control Interface (RS485/Modbus)

• Controller Model: KING POWER KP720Z

Performance Advantages

✅ High Reliability:

• Cummins engine with 12,000+ hours B10 life expectancy

• Robot alternator with IP23 enclosure for harsh environments

✅ Energy Efficiency:

• 1500rpm low-speed design reduces fuel consumption by 12% vs. 1800rpm units

• AVR-controlled voltage stability supports sensitive loads

✅ Ease of Maintenance:

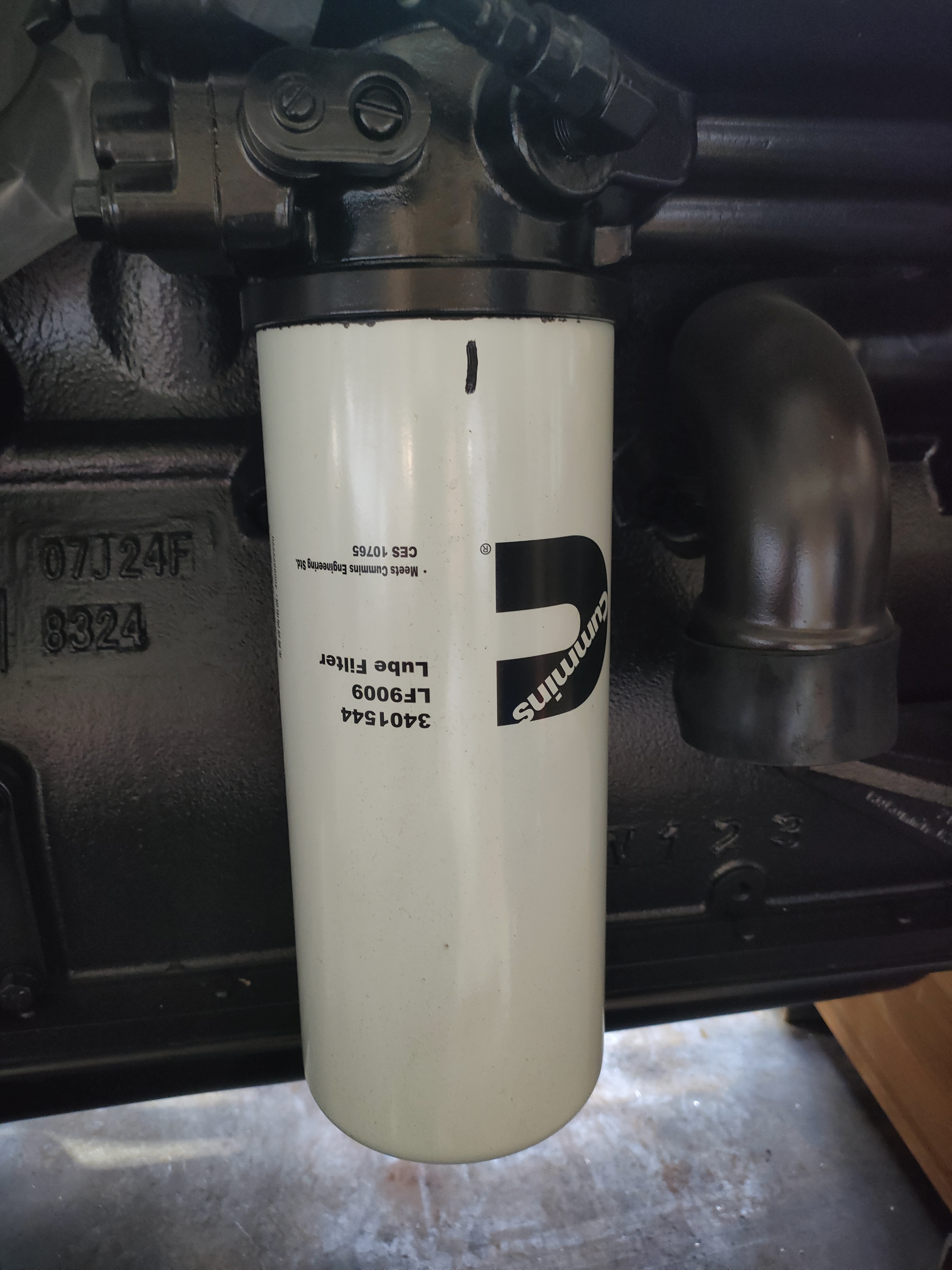

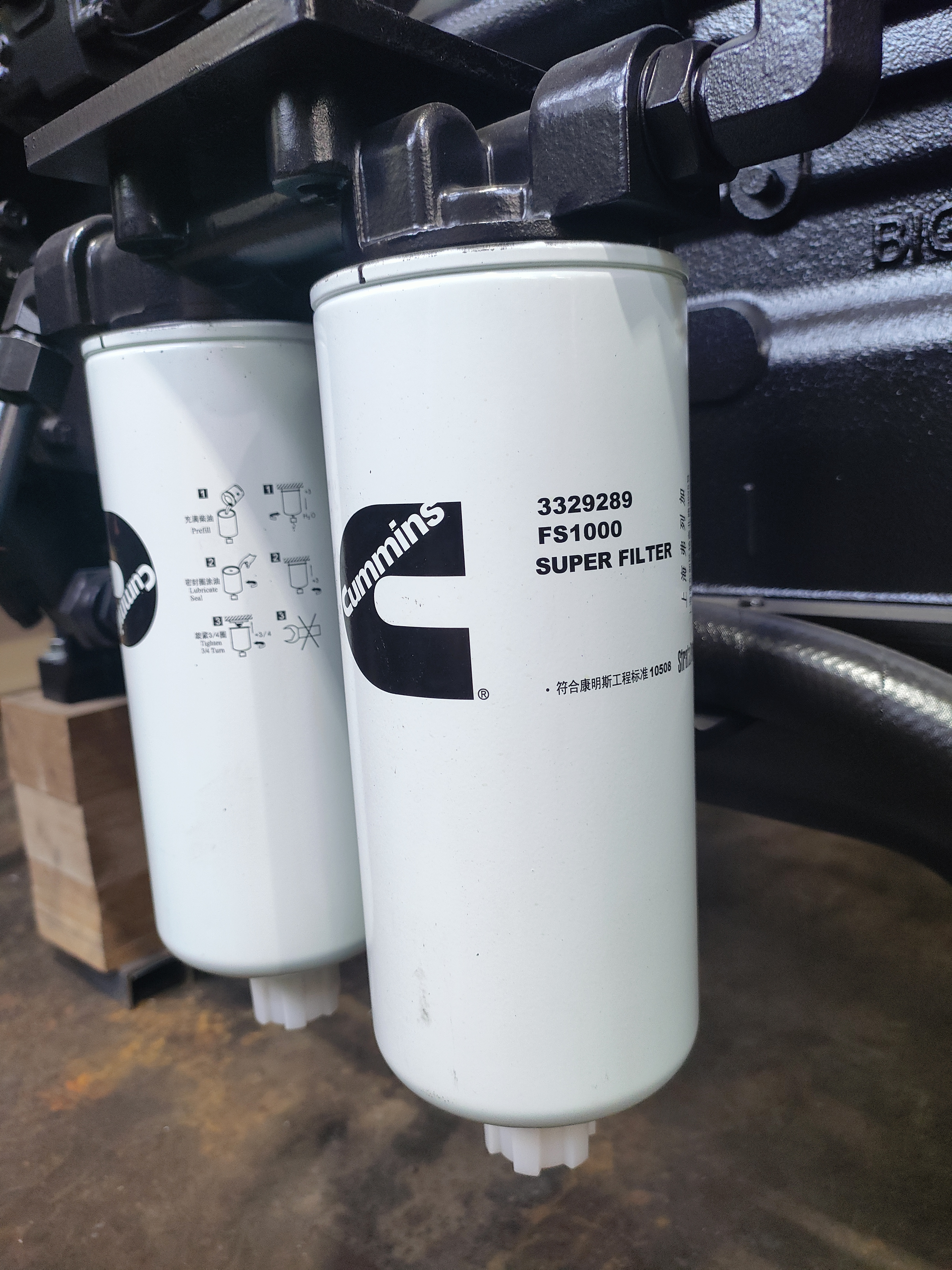

• Modular design with 500-hour service intervals

• KP720Z controller provides predictive maintenance alerts

Standard Configuration

• Base Frame: Heavy-duty steel with anti-vibration mounts

• Soundproof Canopy: 75dB(A) @ 7m (Optional 85dB(A) for open type)

• Battery Charger: Automatic trickle charging system

Certifications & Compliance

• ISO 8528, CE, EPA Tier 2 (Export Models Available with Custom Certifications)

• Meets GB/T 2820.5-2009 (China National Standard for Standby Generators)

Optional Upgrades

• Parallel Operation Kit: For synchronized power expansion (up to 16 units)

• ATS (Automatic Transfer Switch): 4P 400A, 3-Phase 4-Wire

• Cold Weather Package: -30°C Startup with Battery Warmer & Oil Heater

• Emission Control: DPF (Diesel Particulate Filter) for Euro V Compliance

Why Choose This Model?

• Proven Durability: Cummins NTA855 engine with 2M+ units in field service

• Precision Power: Robot alternator maintains ±1% voltage stability under dynamic loads

• Smart Control: KP720Z controller reduces downtime via self-diagnostic capabilities

Warranty: 1 Years/1000 Hours (Whichever Comes First)
Delivery: 25 Days ARO (Ex-Works China)
