| Quantity: | |
|---|---|
KPD750BG
KING POWER
8502200000
| Specification | Details |
|---|---|
| Brand Name | King Genset |
| Model | 300gfm |
| Rated Power | 300kw |
| Fuel Type | Biomass, MSW, Coconut Shell, Rice Husk |
| Speed | 500rpm/600rpm |
| Structure | Inline 4 Stroke |
| Type | Naturally/Turbocharger |
| Regulator | AVR |
| Rated Voltage | 400/230V |
| Frequency | 50/60Hz |
| Power Supply Range | Rate: 10kw - 1100kw, Prime: 8kw - 880kw |
| Capacity | 1CBM biogas produces 1.5-2.5kw.h power |
| Voltage and Frequency | 400V/230V, 50/60Hz |
| Model Number | 10-1100GF |
| Rated Speed | 1000/1500rpm |
| Phase | AC 3 phase 4 wire |
| Starting System | 24V DC electric motor |
| Cooling Method | Water cooler |
| Lubricant Method | Passive and splash |
| Isolation Class | H |
| Protection | IP23 |
| Power Factor | 0.8 lagging |
| Exciting Method | Brushless |
| Voltage Stability | ≤±2% |
| Voltage Transient | ≤±10% |
| Voltage Stable Time | ≤1 s |
| Engine Capacity | 1.81-95L |
| Cylinder Number | 2-16 |
| Cylinder Diameter | 100-190mm |
| Range | 115-210mm |
| Heat Consumption | ≤9.8mj/kw.h |
| Oil Consumption | ≤1.63g/kw |
| Work Site Requirements | |
|---|---|
| Ambient Temperature | -40ºC~40ºC |
| Relative Humidity | Less than 95% (35ºC) |
| Site Elevation | Not higher than 2500m |
| Outdoor Installation | Simple rain shelter required |

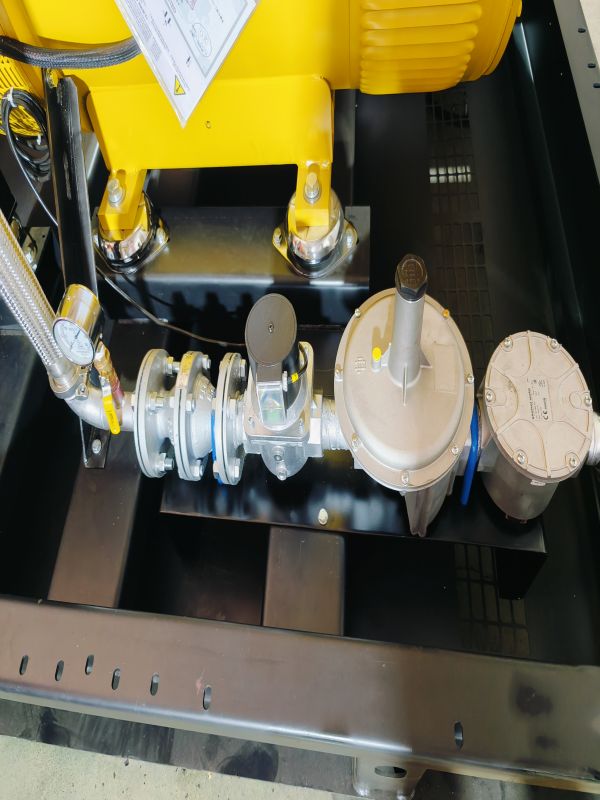

| Fuel Gas Requirements | |
|---|---|
| Temperature of Biogas | ≤40ºC |
| Pressure of Biogas | 5~20kPa, velocity of pressure ≤ 1kPa/min |
| H2S | ≤200mg/Nm3 |
| NH3 | ≤20mg/Nm3 |
| Coke Tar Content | ≤20mg/Nm3 |
| Impurities Particle Size | ≤5μm |
| Impurity Content | ≤30mg/Nm3 |
| Moisture Content of Biogas | ≤40g/Nm3 |
| Biogas Gas Calorific Value | ≥4.2MJ/Nm3 |
Original Manufacturer Supply: King Genset offers direct supply, ensuring authenticity and quality.
Power Supply Range: Delivers a wide range from 10kw to 1100kw, accommodating various industrial needs.
Prime Power Versatility: Supports 8kw to 880kw, providing flexibility for different operational demands.
Biogas Efficiency: Converts 1CBM of biogas into 1.5-2.5kw.h of power, maximizing energy output.
Voltage and Frequency Options: Available in 400V/230V with 50/60Hz, suitable for diverse setups.
Eco-Friendly Fuel Sources: Utilizes household and animal waste, promoting sustainable energy solutions.
Adaptable Gas Handling: Capable of processing over 20 different gases, enhancing versatility.
Proven Global Reliability: With over 1000 systems installed in 20+ countries, King Genset is a trusted choice.
Dedicated Customer Support: More than 50 service professionals ensure responsive and reliable assistance.
By choosing King Genset, you invest in a reliable, eco-friendly power generation solution tailored to reduce costs and environmental impact.
Unlock the Potential of Biogas Power Generation with King Genset
Waste Water Treatment Systems: Harness the power of biogas to efficiently manage energy needs in waste water treatment facilities. Reduce costs and environmental impact with King Genset's reliable solutions.
Landfill Gas Power Plants: Convert landfill gas into a sustainable energy source with our 100kw-800kw biogas generators. Ensure a greener future while maintaining operational efficiency.
Farm and Household Mini Power Generation: Provide eco-friendly power solutions for farms and rural homes. Our generators offer a dependable energy source, supporting both small-scale and large-scale operations.
City Garbage Treatment: Transform city waste into valuable energy, reducing municipal waste management costs and contributing to sustainable urban development.
Farm and Animal Manure Power Plants: Leverage animal waste to generate power, optimizing farm operations and promoting sustainable practices.
Work Site Requirements for Optimal Performance:
Ambient temperature: -40ºC to 40ºC
Relative humidity: Less than 95% at 35ºC
Elevation: Not higher than 2500m
Outdoor installations require a simple rain shelter
Maximize your facility's efficiency with King Genset's biogas generator sets, tailored for sustainable and cost-effective energy solutions.
Versatile Gas Compatibility: King Genset's biogas generator set can efficiently handle over 20 different gases, offering you unmatched flexibility in power generation.
Proven Expertise: With over 50 years of experience in internal combustion engine development, King Genset ensures reliability and innovation in every unit.
Robust Construction: The generator features a world-famous diesel engine and AC alternator, both mounted on a sturdy steel skid, ensuring durability and stability.
Advanced Control and Safety: Benefit from an intelligent control module with full-range protection and alarm shutdown features for enhanced safety.
Global Support Network: With after-sale service centers worldwide, King Genset guarantees prompt and reliable customer support.
Eco-Friendly Power: Designed for sustainable energy solutions, this biogas generator helps reduce your operational costs and environmental impact.
High ROI: Enjoy a high price-performance ratio, making it a cost-effective choice for your industrial or agricultural facility.
Embrace the future of power generation with King Genset's biogas solutions, tailored to meet the needs of modern energy-conscious facility managers like you.
Reliable Packaging Solutions:
EPE/Ply-wood Packing: Ensures protection during transit, maintaining the integrity of your King Genset biogas generator.
Plywood Package by Seaway: Ideal for secure and efficient shipping.
Flexible Payment Terms:
30% T/T Deposit: Initiate your order with a manageable upfront payment.
Balance Payment: Complete payment before delivery or opt for a 100% irrevocable L/C at sight.
Versatile Price Terms:
FOB, CFR, CIF, EXW: Choose the pricing model that best suits your operational needs.
Timely Delivery:
20-35 Working Days: Receive your generator set promptly after deposit confirmation.
SEO Keywords: King Genset, biogas generator set, packaging solutions, shipping terms, sustainable energy, industrial facility managers
Ensure your operations run smoothly with King Genset's reliable packaging and shipping solutions for biogas generator sets. Designed to meet the needs of industrial and agricultural managers, our offerings provide security, flexibility, and efficiency.
Warranty Commitment:
One Year or 1000 Hours: Enjoy peace of mind with King Genset's comprehensive warranty, covering one year or 1000 operational hours, whichever comes first.
Dual Coverage: Benefit from warranty support not only from King Genset but also from engine and alternator suppliers.
After-Sales Support:
Free Technical Assistance: Receive complimentary technical support and spare parts during the warranty period.
Installation and Commissioning Help: Need installation support? King Genset offers expert assistance, charging only necessary fees.
Lifetime Online Support: Access ongoing technical guidance online to ensure your biogas generator set operates efficiently.
Why Choose King Genset?
Proven Reliability: Each generator set is rigorously tested before delivery, ensuring optimal performance.
Sustainable Solutions: Ideal for industrial and agricultural managers seeking eco-friendly power generation.
King Genset is committed to supporting your sustainable energy goals with reliable and efficient service.
If you need other power generator,please feel free to contact us.
