KPG281S
KING POWER
8502120000

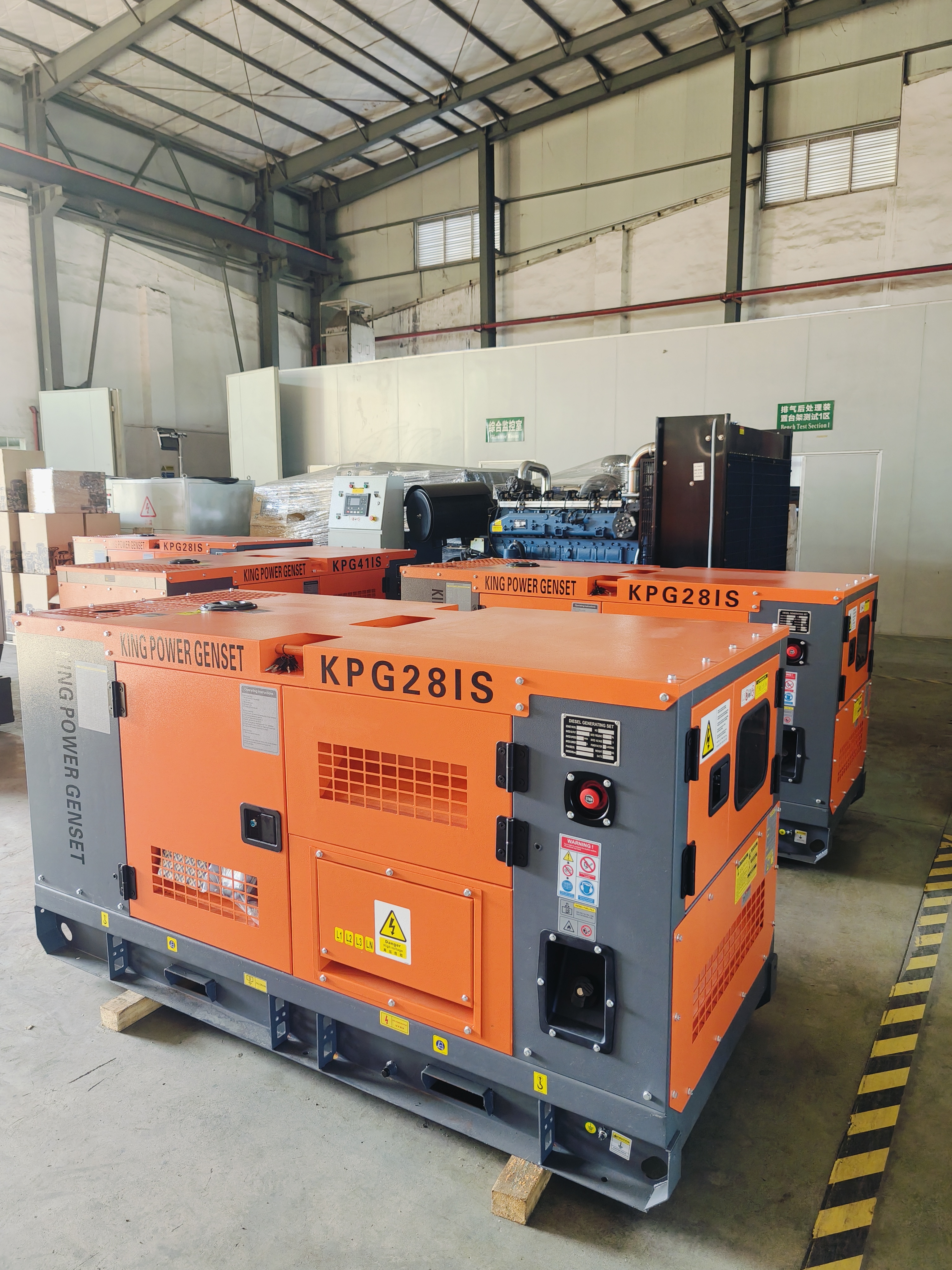

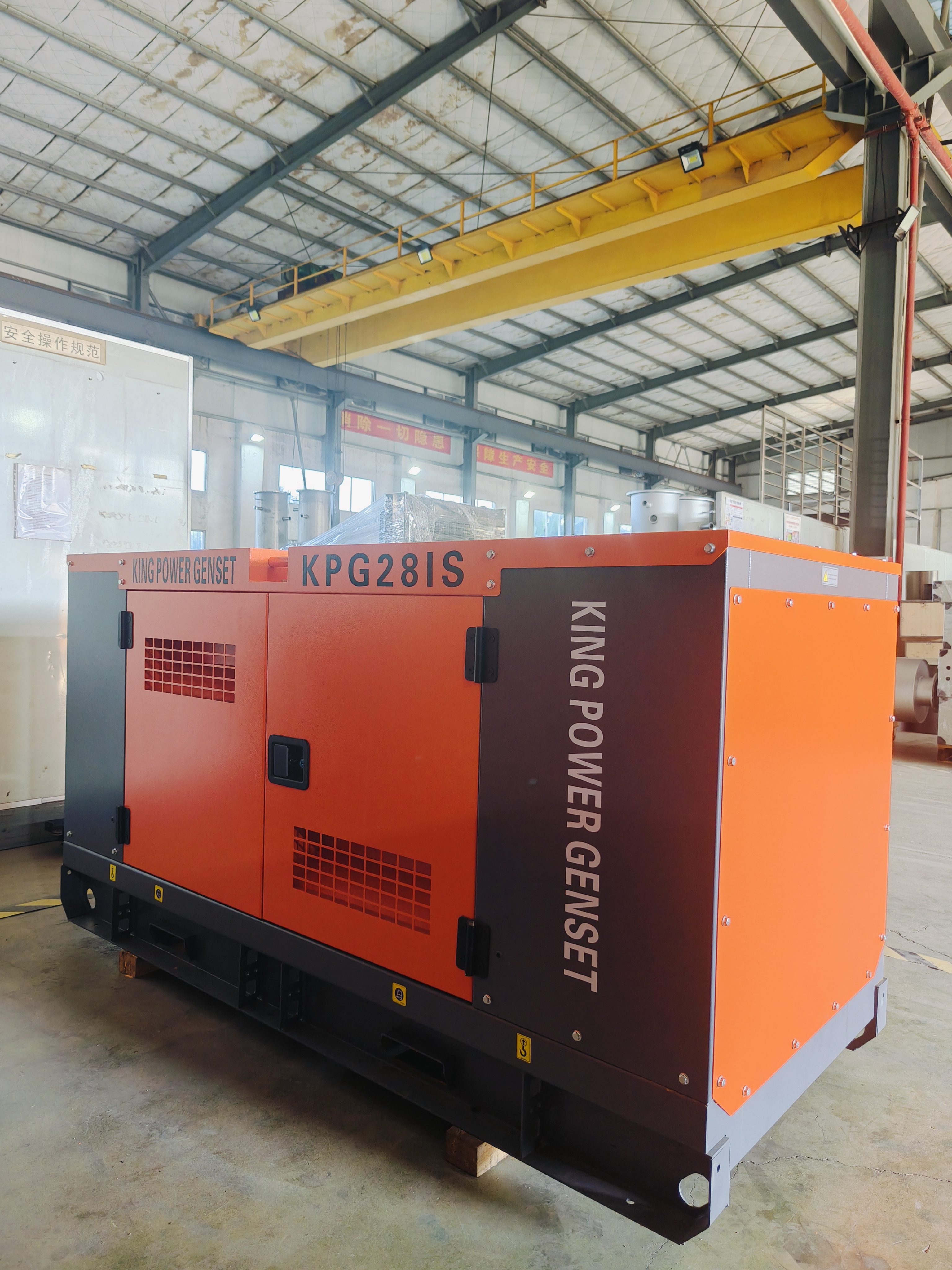

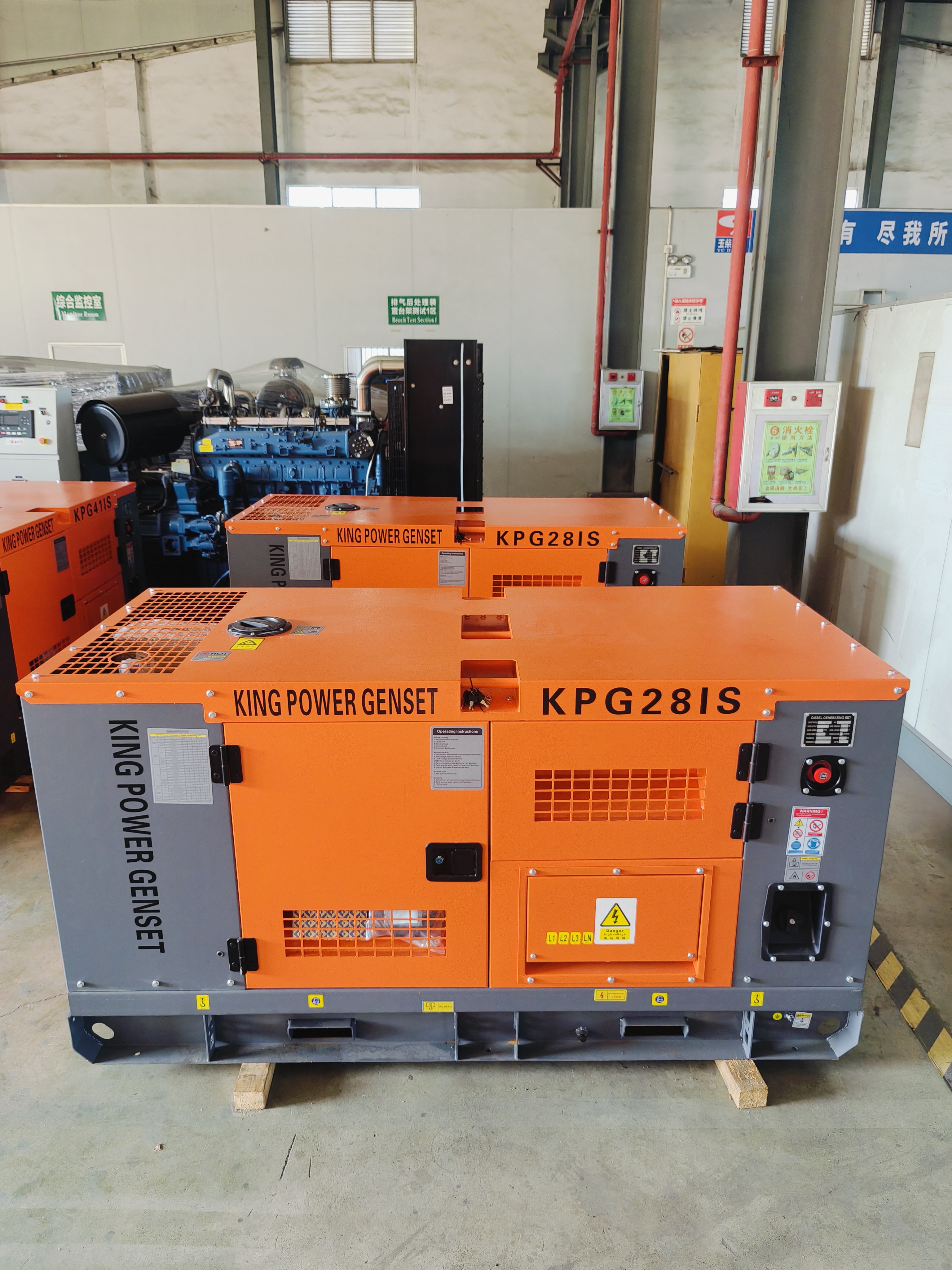

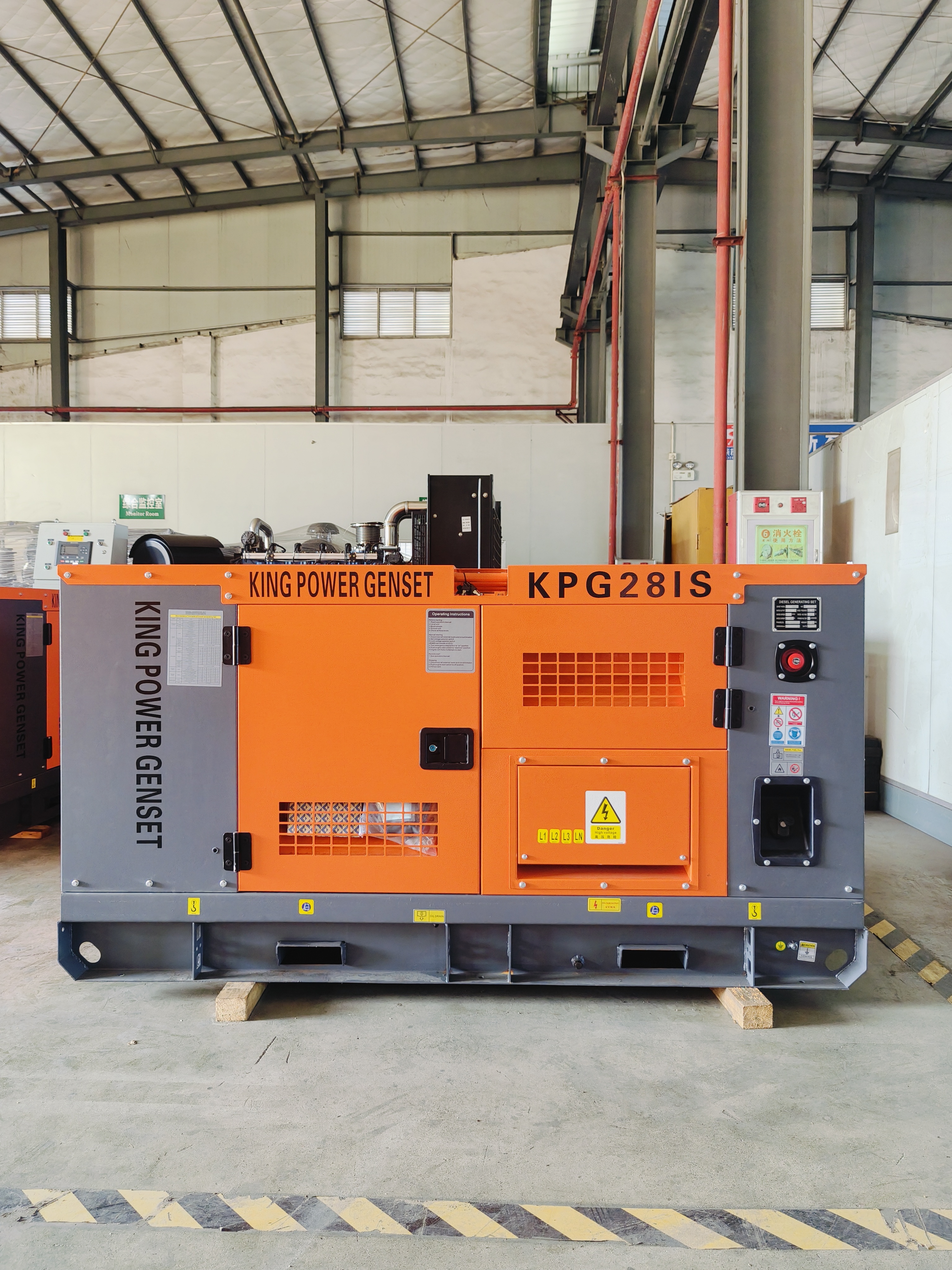

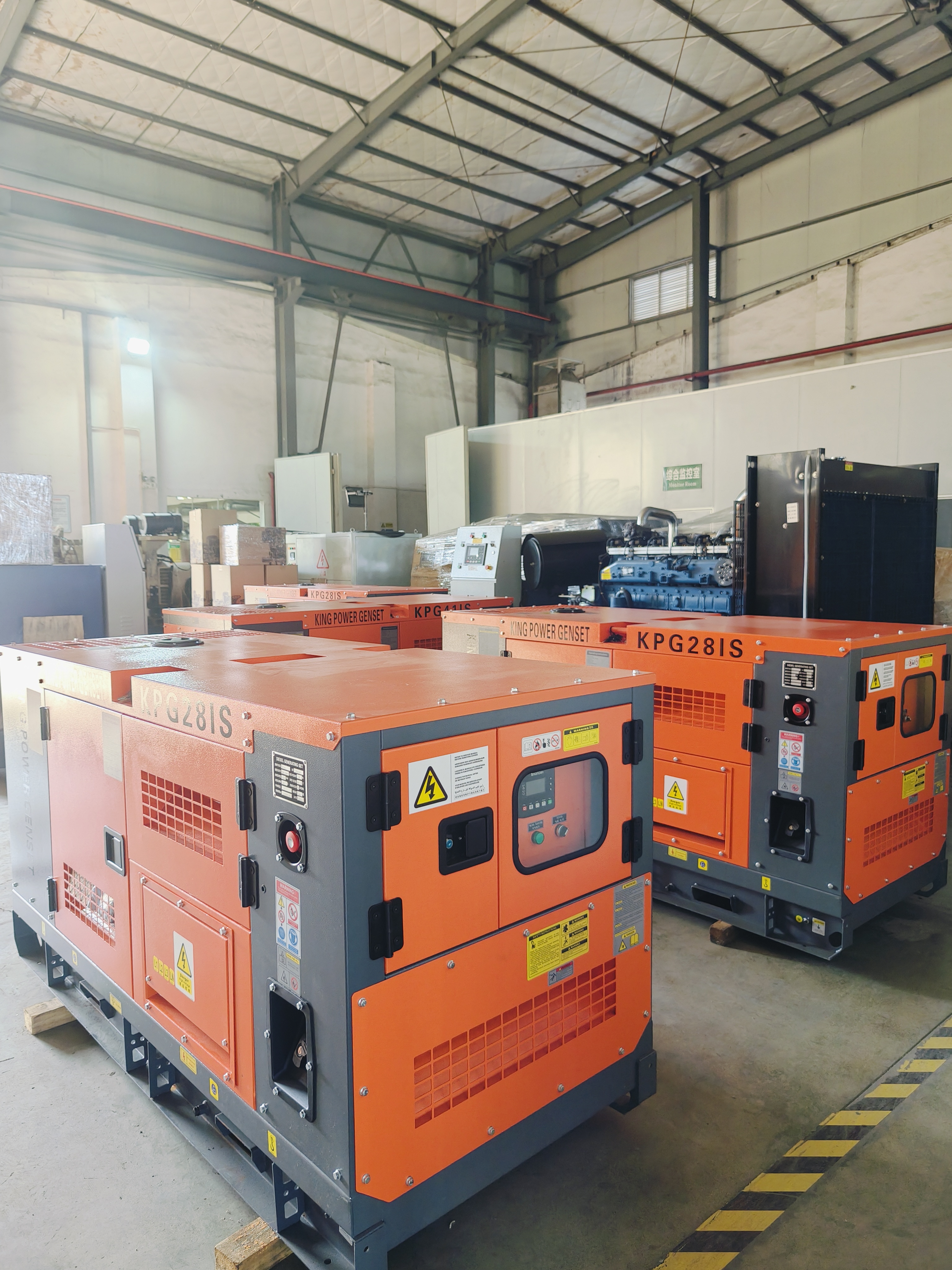

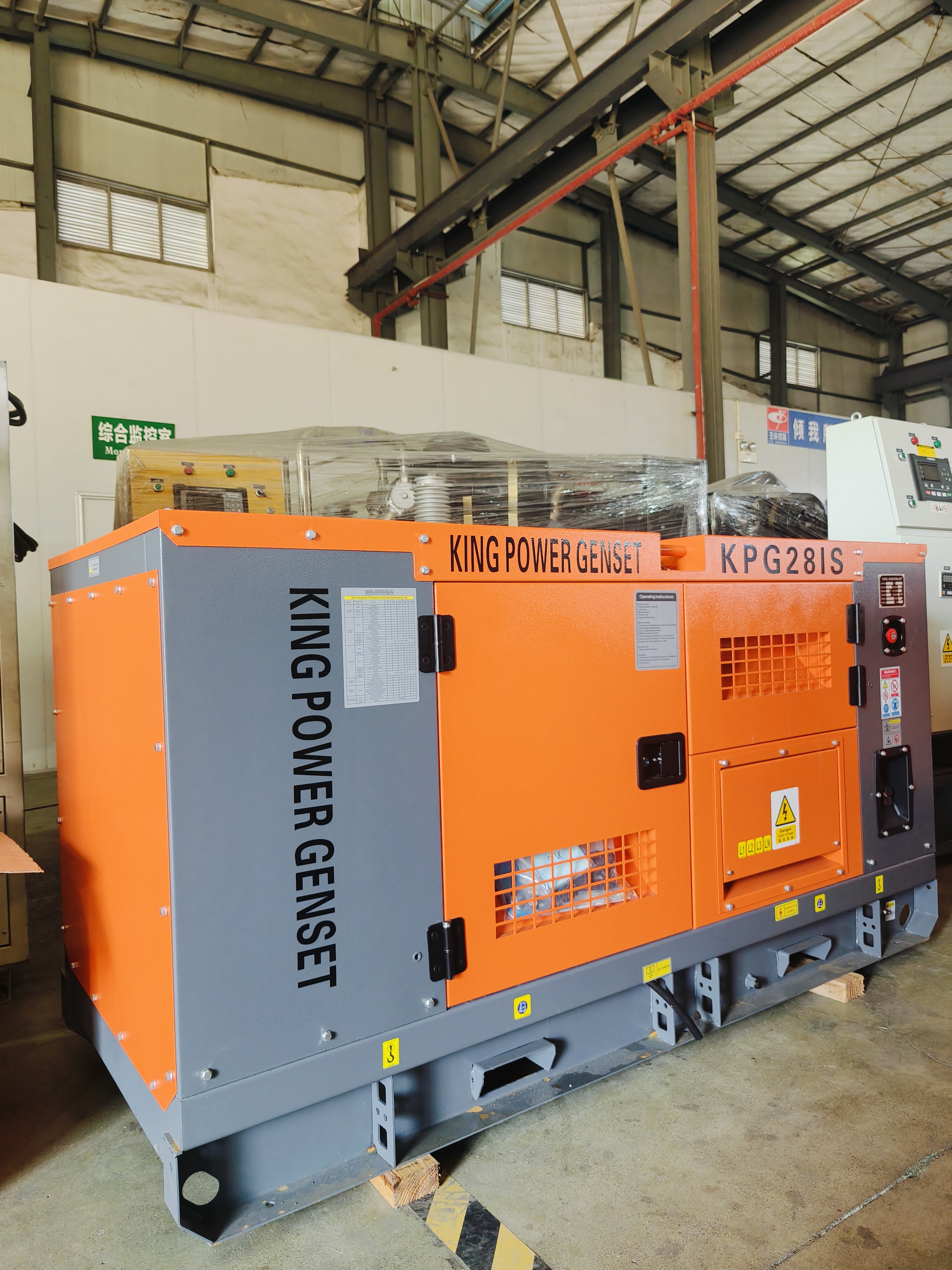

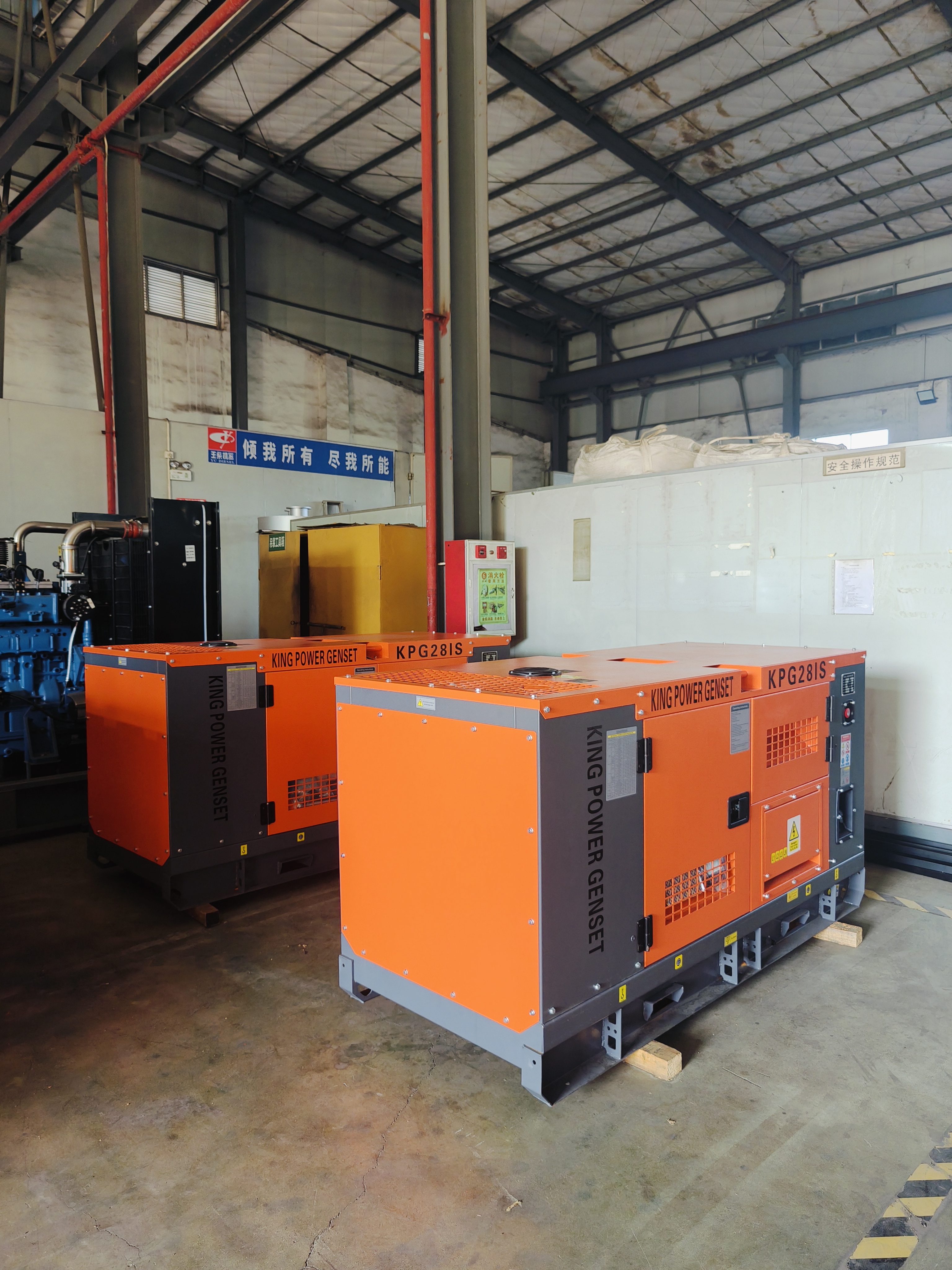

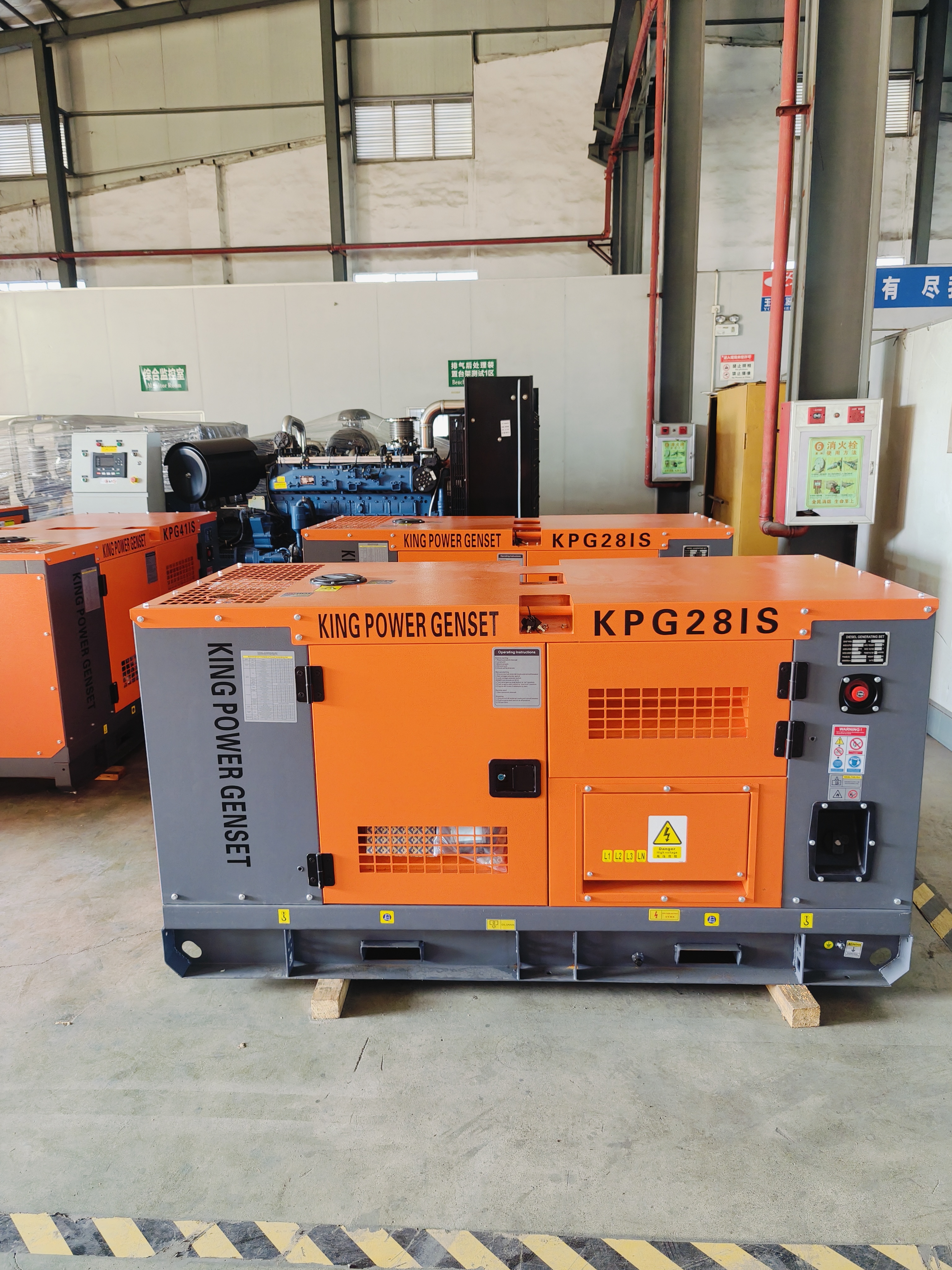

20KW Silent Type Diesel Generator Set
Basic Info:
| Genset model: King Power/KPG281S | Installation Method: Fixed |
| Fuel type: Diesel | Cooling Method: Water Cooling |
| Conditions of use: Land use | Usage: Common/standby units |
| Excitation Mode: AC Rotating Exciter | Excitation Mode: AC Rotating Exciter |
| Output Type: AC Three Phase | Stroke: Four Stroke |
| Trademark: King Power | Out-put Power(KW/KVA): 20/25 |
| Origin: Shenzhen, China | Dimension(MM):2100*900*1100 |
| Sound Level(DB): 60-85 | Gross weight(KGS): 850 |
| Speed(RPM): 1500/1800 | Engine brand&Model: 4B3.9-G1 |
| HS code: 8502120000 | Advantage: Anti-Vibration, Fuel-saving, high Efficiency |
| Alternator brand: Robot/Marathon/Leroy-somer | |
| Optional Parts: Parallel System, Fuel Tank, wheels, ATS | |
| Standard Accessory: Exhaust Silencer, Flexible Pipe, Battery Cables, battery, air breaker | |
| Environment: Work in Any Kinds of Harsh Climate | |
| Warranty Period: 1 Year or 1000 Hours from the genset's delivery from the seller, subject to whichever comes first. | |
Package & Payment & Delivery Date
Package:EPE/ Ply-wood packing.
Payment term: 30% T/T as deposit, 70% balance shall be paid before delivery. Or 100% irrevocable L/C at sight.
Price term: FOB, CFR, CIF, EXW
Delivery time: 20-35 working days after getting the deposit.
Genset features
1. Engine and alternator shall be mounted on a same frame steel skid.
2. Built-in damper for anti-vibration.
3. World-famous diesel engine brand.
4. World-famous AC alternators brand.
5. Intelligent and reliable control module.
6. Full range protection function and alarm shutdown feature.
7. Supply of all the necessary spare parts.
8. High price performance ratio.
9. After-sale service centers located all over the world.
Alternator Feature
1. Brush-less, 4 poles, rotation magnet.
2. IP21-23) enclosure is standard for all industrial alternators.
3. The insulation system is Class H
4. Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
5. Wide range of flange adapters and single bearing disc coupling.
6. Standard 2/3 pitch windings avoid excessive neutral currents
7. AVR auto voltage regulator, auto exciter, auto adjustment
Standard Accessory
Steel base frame, 3 meters smoke pipe, Exhaust silencer, Flanges, bellows, Battery and connecting wires, Operation manual and documents, load test report, water temperature sensor, oil-pressure sensor, air breakers, control panel, maintaining tools, etc.
Optional Accessory
Water-proof canopy, engine coolant and oil heater, Alternator space heater, heat exchanger, remote control system with RS232/485 communication interface, floating battery charger, fuel-water separator, daily or base fuel tank, ATS, VTS, paralleling system, synchronizer, moving trailer or wheels, sound-proof canopy, extra spare parts.
Silent Canopy performance
1. Steel Weatherproof Canopy
2. Built In Fuel Tank
3. Built In Control Panel
4. Built In Start Battery
5. Power Output Rapid Insert
6. Doors for Looking or maintaining
7. Air Louver for Intake & Exhaust
8. Exhaust Gas Silencer
9. Assembled smoke pipes
10. Filled with high quality silencer cotton
11. Strong sense of design
12. Easy for operating
ATS System
If the generator set will be used as a standby power, the auto transfer switch (ATS) is necessary and essential. Because ATS can automatically transfer load from Mains power to generator set. In normal, when the Main power fails or voltage drops below 80% of the normal voltage, ATS will auto start standby generator set after a preset time of 0-10 sec (adjustable according to the users). Once generator reaches at rated speed, the ATS will transfer the load to standby generator sets automatically.
