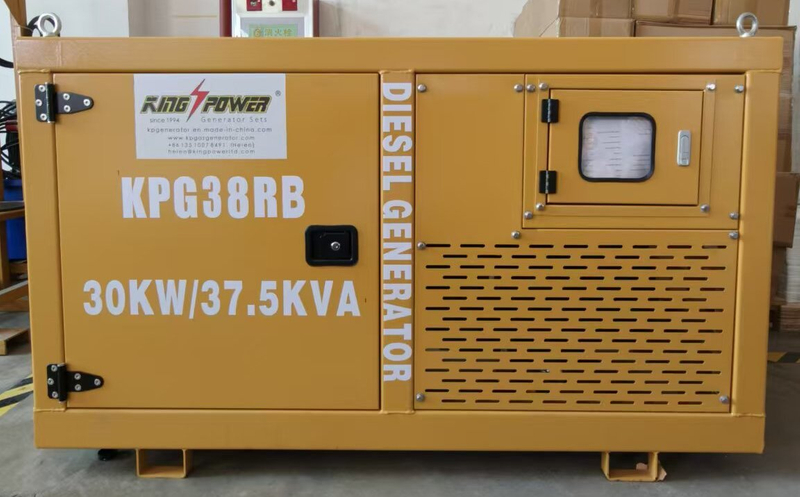

The KPG38RB 30KW/37.5KVA Diesel Generator Set is a high-performance power solution engineered specifically for refrigerated trucks and cold chain logistics. Designed to ensure uninterrupted temperature control during transit, this generator set combines robust construction, fuel efficiency, and advanced control technology to safeguard perishable goods, pharmaceuticals, and other temperature-sensitive cargo. With a compact yet powerful design, it is ideal for medium- to large-sized refrigerated vehicles requiring reliable backup or primary power.
Rated Power Output: 30KW (37.5KVA) at 50Hz/60Hz
Prime Power: 27KW (33.75KVA) for continuous operation
Engine Model: Robot RB495BD (4-Cylinder, Turbocharged Diesel)
Displacement: 2.98L
Fuel Consumption: ≤ 228 g/kWh at 100% load
Cooling System: Liquid-cooled with thermostat-controlled fan
Emission Compliance: Meets EU Stage V / EPA Tier 4 Final standards
Alternator Model: Robot RB-30-4 (Brushless, 4-Pole)
Voltage Regulation: ±1% AVR (Automatic Voltage Regulator)
Insulation Class: H (180°C rated)
Protection Grade: IP23 (Weather-resistant enclosure)
Controller Model: KingPower KP610 (Digital Intelligent Control Panel)
Display: LCD screen with real-time monitoring (voltage, frequency, runtime, alarms)
Features: Auto-start/stop, remote control capability, fault diagnostics, and overload protection
Runtime at Full Load: ~8 hours (standard tank)
Noise Level: ≤115 dB(A) at 7 meters (soundproof canopy option reduces noise further)
Dimensions (L×W×H): 1,750mm × 720mm × 1,050mm
Weight: 630 kg (dry weight)
Compact & Durable Construction
The generator set is housed in a rugged steel frame with anti-corrosion powder coating, ensuring longevity in harsh environments.
A weatherproof canopy (optional) protects internal components from dust, rain, and UV exposure.
Efficient Engine Performance
The Robot RB495BD diesel engine delivers high torque at low RPMs, reducing fuel consumption and wear.
Turbocharging enhances power output while maintaining compliance with global emission standards.
Reliable Alternator
The Robot RB-30-4 brushless alternator minimizes maintenance needs and provides stable power output with minimal harmonic distortion (<3%).
Suitable for both resistive (heating) and inductive (refrigeration compressor) loads.
Advanced Control System

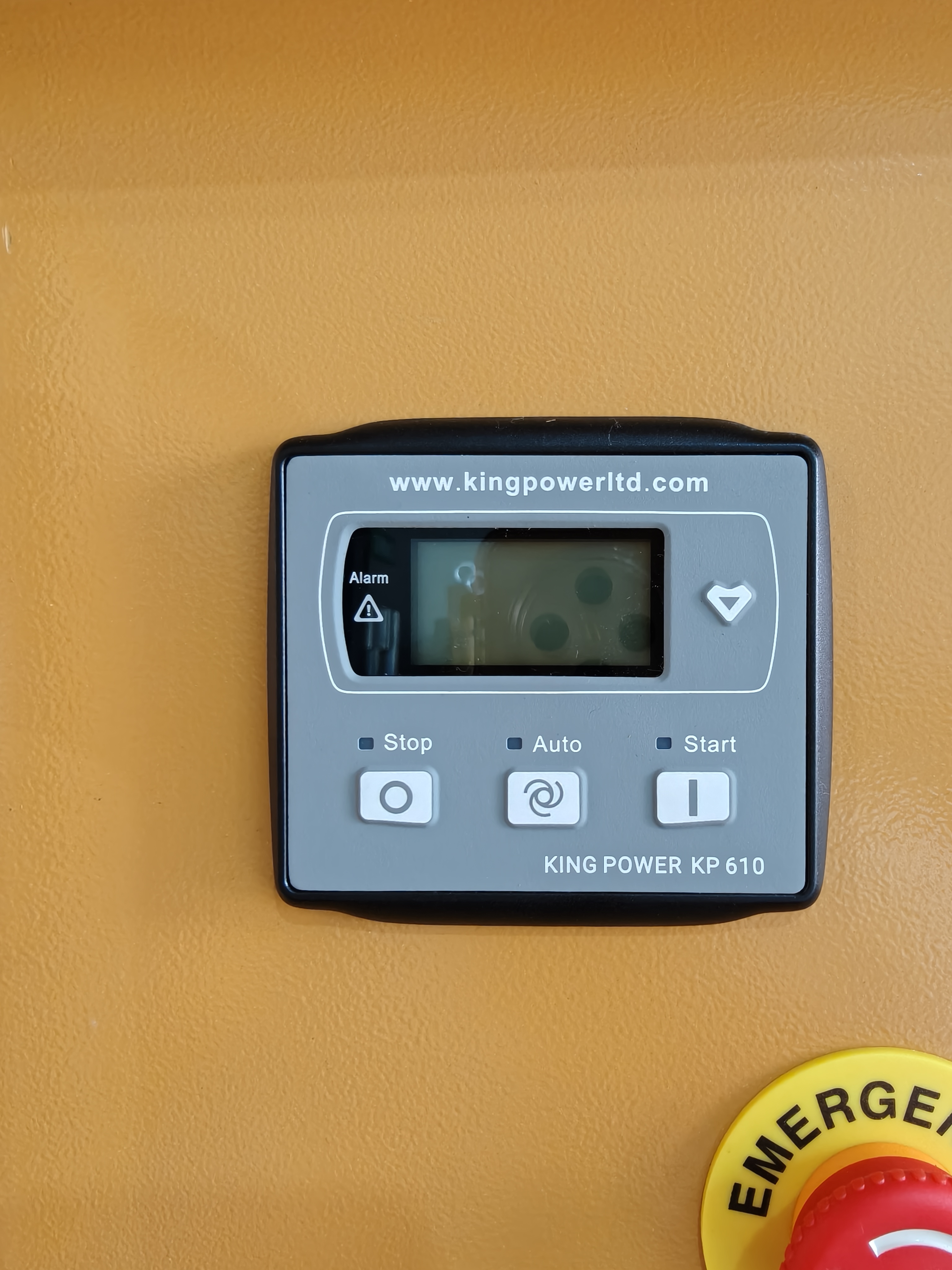

The KingPower KP610 controller offers intuitive operation via an LCD interface, showing critical parameters and alarms.
Supports auto-start/stop based on battery voltage or remote signals, ensuring seamless integration with truck systems.
Easy Maintenance Access
Side panels are removable for quick access to filters, belts, and engine components.
Oil drain and fuel fill points are strategically placed for convenience.
Cold Start Capability: The generator set starts reliably in temperatures as low as -15°C (optional pre-heat kit available for -30°C).
Load Response: Smooth power transition during sudden load changes (e.g., refrigeration compressor cycling).
Overload Protection: The KP610 controller automatically shuts down the generator if overloads exceed 110% for more than 30 seconds.
Vibration Isolation: Mounted on anti-vibration dampers to reduce noise and mechanical stress on the truck chassis.
The KPG38RB is designed for:
Refrigerated Trucks: Maintaining -20°C to +10°C temperatures for food, pharmaceuticals, and chemicals.
Mobile Cold Rooms: Powering standalone refrigeration units in disaster relief or event logistics.
Backup Power: Providing emergency power to critical systems in case of vehicle electrical failure.
Off-Grid Operations: Supporting remote locations without access to grid electricity (e.g., mining camps, agricultural sites).
Mounting: Designed for secure installation on truck chassis or trailers using vibration-dampening mounts.
Electrical Connection: Pre-wired for easy hookup to the truck’s battery and refrigeration system.
Exhaust System: Includes a stainless-steel muffler and flexible exhaust pipe for safe venting.
Routine Checks:
Daily: Check oil level, coolant, and fuel.
Weekly: Inspect air filter and clean the radiator fins.
Monthly: Replace engine oil and filter (every 250 hours).
Long-Term Storage:
Drain fuel and add stabilizer if storing for >30 days.
Run the generator monthly to prevent internal corrosion.
Warranty: 2-year limited warranty (engine: 1 year, alternator: 3 years).
Soundproof Canopy: Reduces noise by 10–15 dB(A).
Extended Fuel Tank: Up to 300L for longer runtime.
ATS (Automatic Transfer Switch): Enables seamless switching between generator and grid power.
Remote Monitoring Kit: Allows real-time tracking of generator status via smartphone or PC.
Cost-Effective: Low fuel consumption and minimal maintenance reduce operational costs.
Versatile: Compatible with most refrigerated truck models and refrigeration units.
Global Support: Backed by a network of authorized service centers worldwide.
Eco-Friendly: Meets stringent emission standards, reducing environmental impact.
The KPG38RB 30KW/37.5KVA Diesel Generator Set is a top-tier solution for refrigerated transport, offering unmatched reliability, efficiency, and ease of use. Whether powering a single truck or an entire fleet, this generator ensures your cargo arrives fresh and intact, every time.
Contact us today for a customized quote or to learn more about our cold chain power solutions!
