Introduction of 1000kw Container Type Natural Gas Generator Set
Designed to meet high-power demand scenarios, this 1000kW container-type natural gas generator set adopts a parallel operation design, integrating 4 Sets of 250 kW units for a stable and efficient power supply.

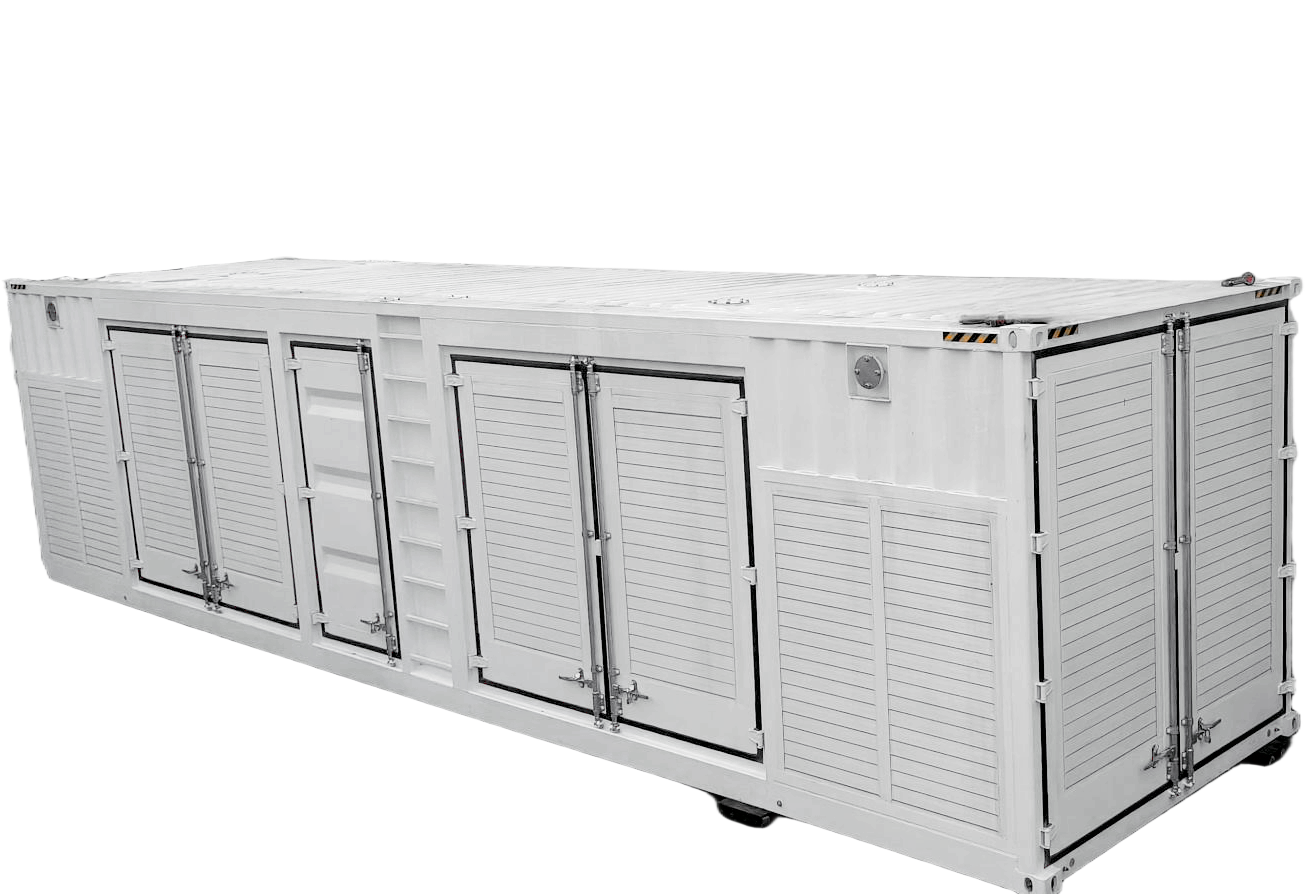

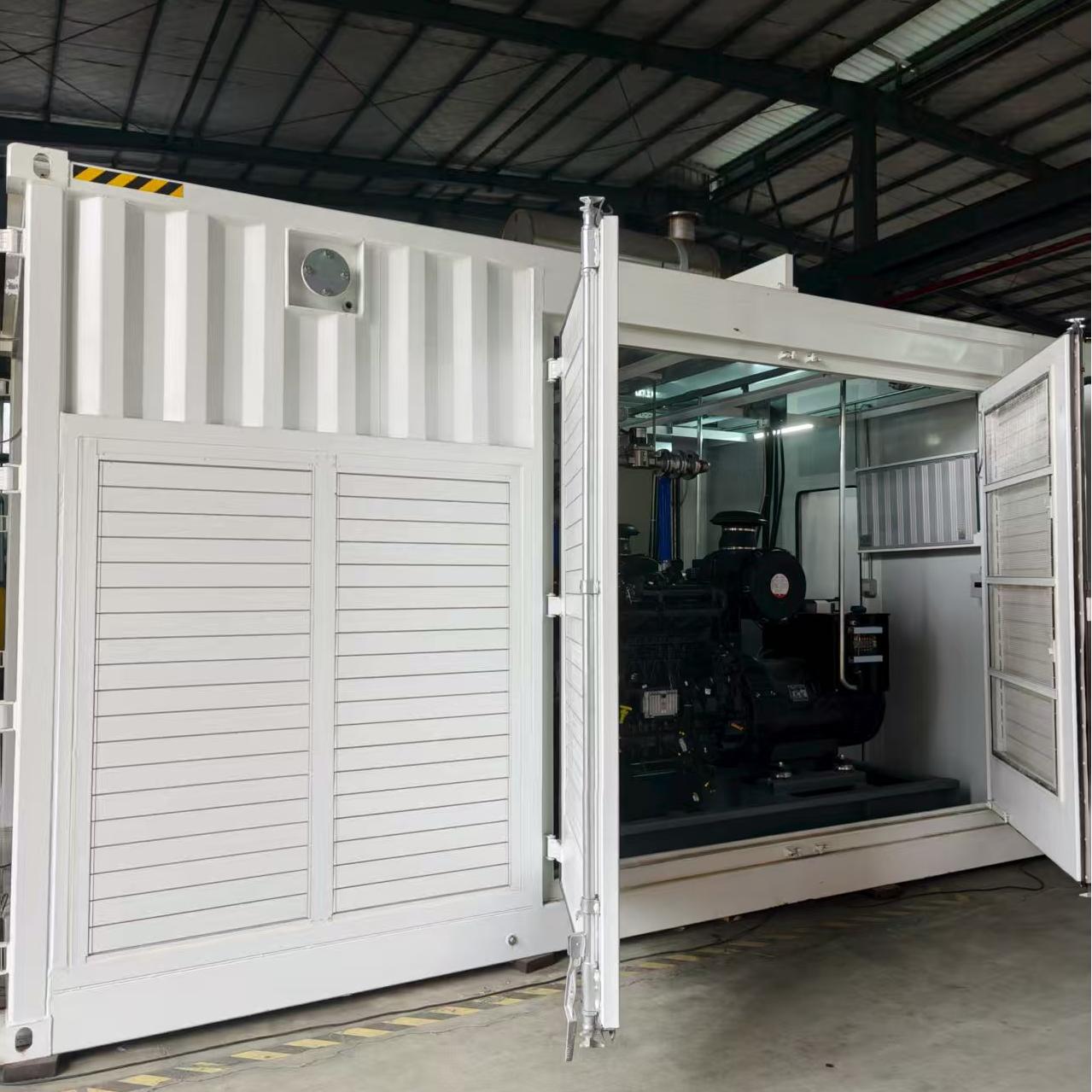

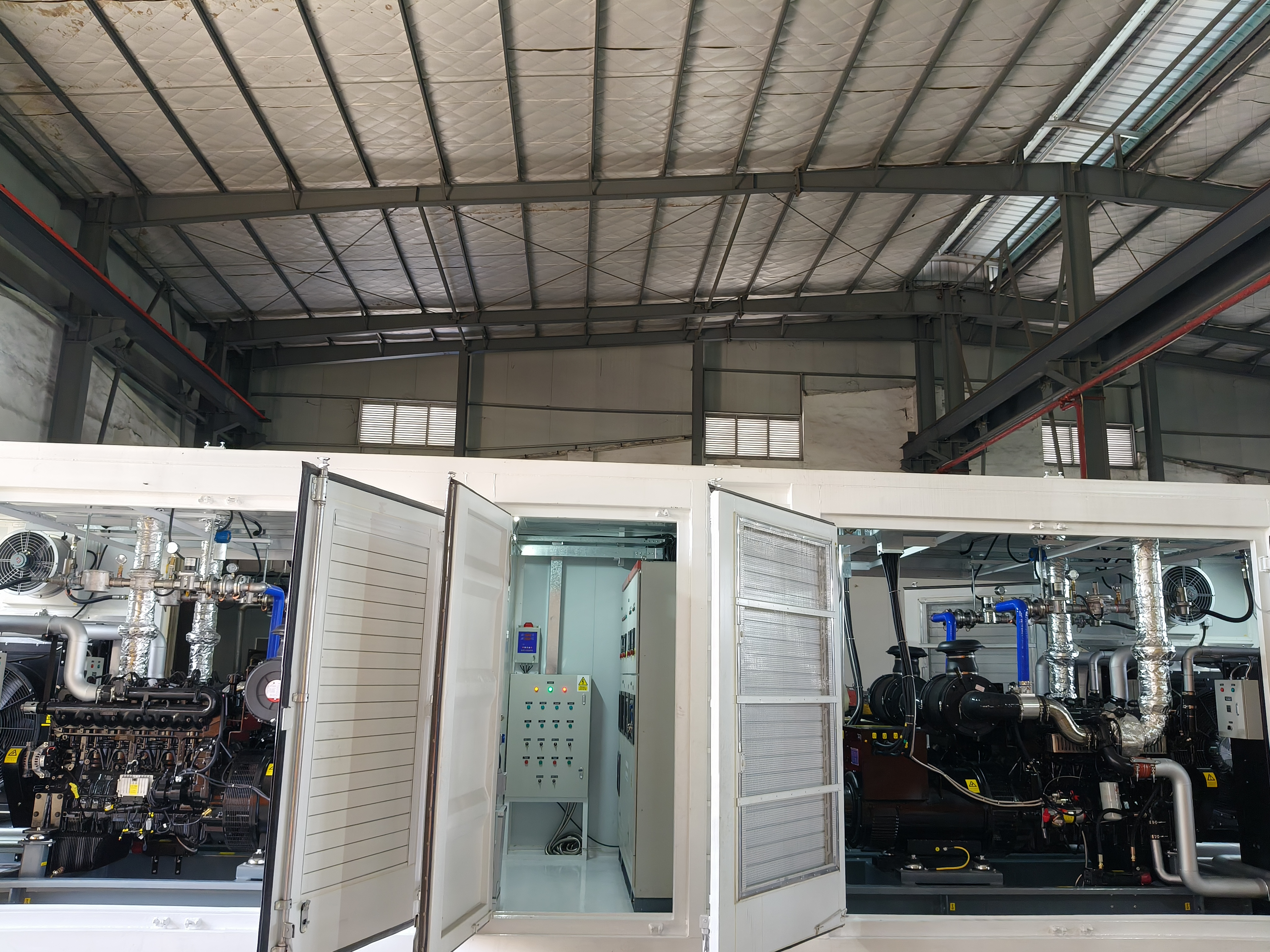

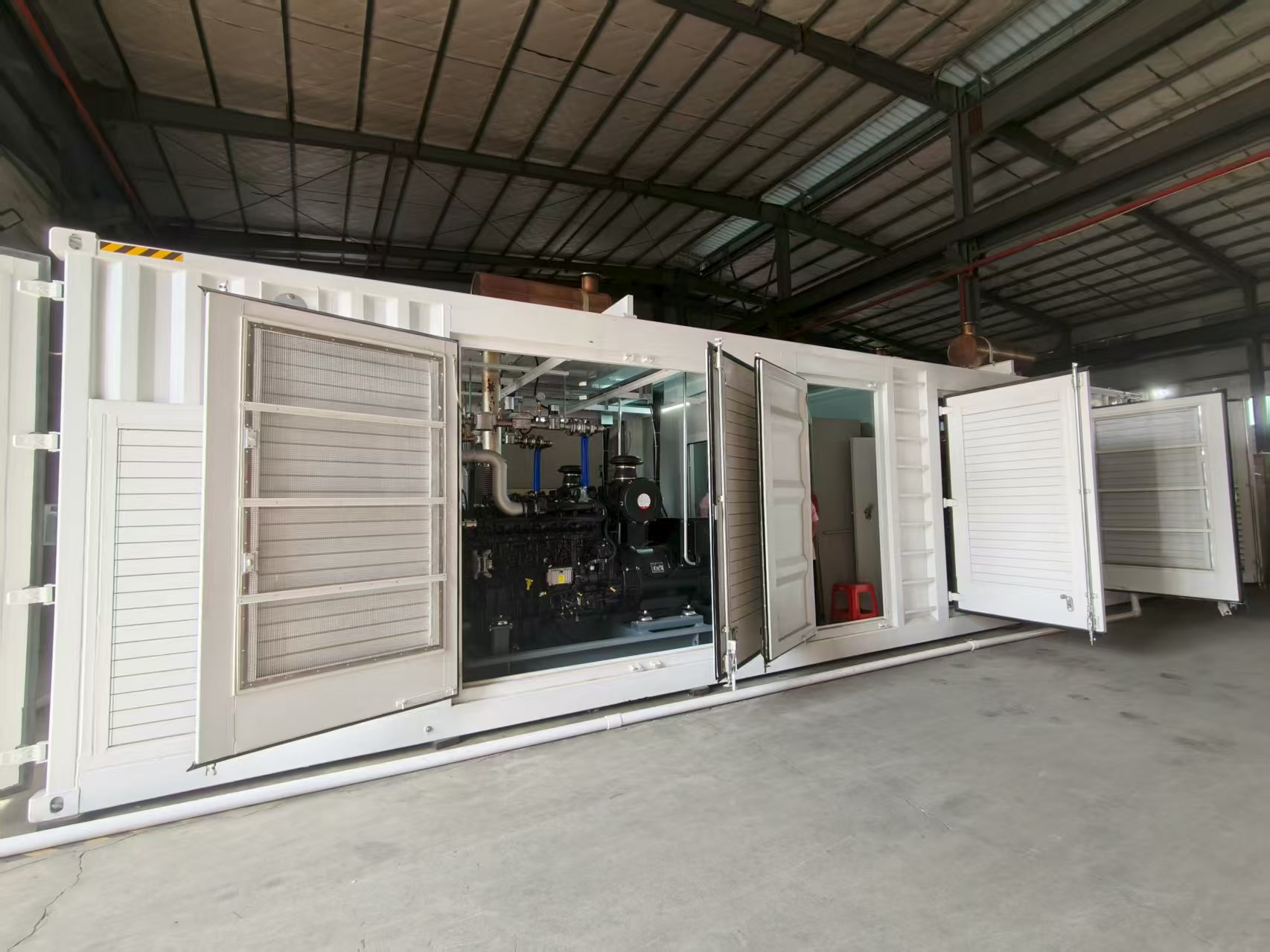

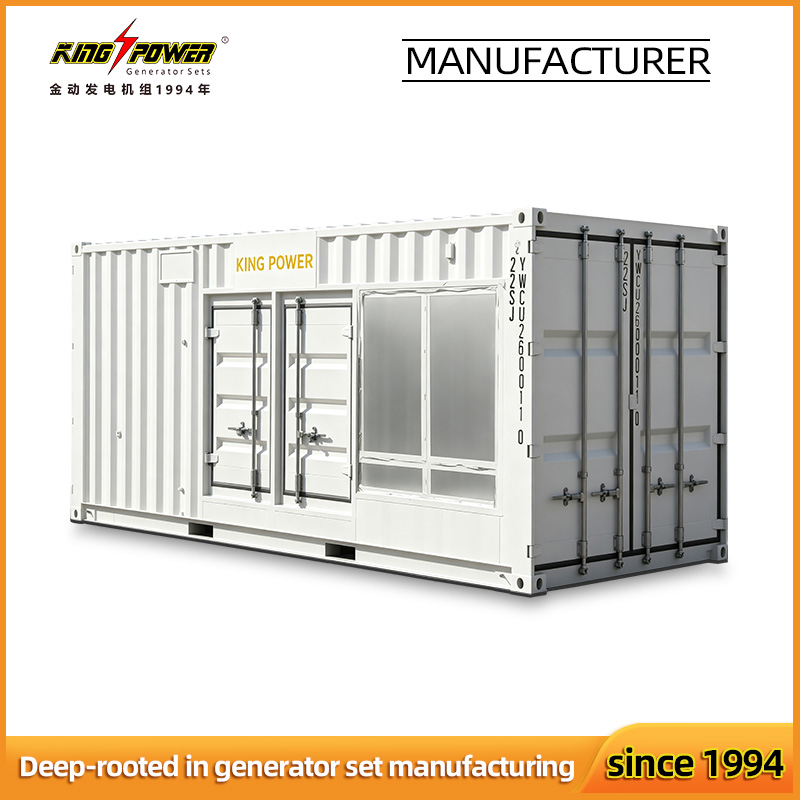

Featuring a modular structure, the entire system is housed in a 12-meter-long container divided into three compartments. This rational layout places two generators on each side of the container, with a central control console in between—greatly facilitating daily operation, inspection, and maintenance work.
The central control console is the core of the system’s operation, equipped with four paralleling cabinets (one dedicated to each generator) and one utility connection cabinet. This configuration enables precise control over each unit, supports seamless switching between grid-connected and off-grid modes, and ensures clear and intuitive operational logic for operators.

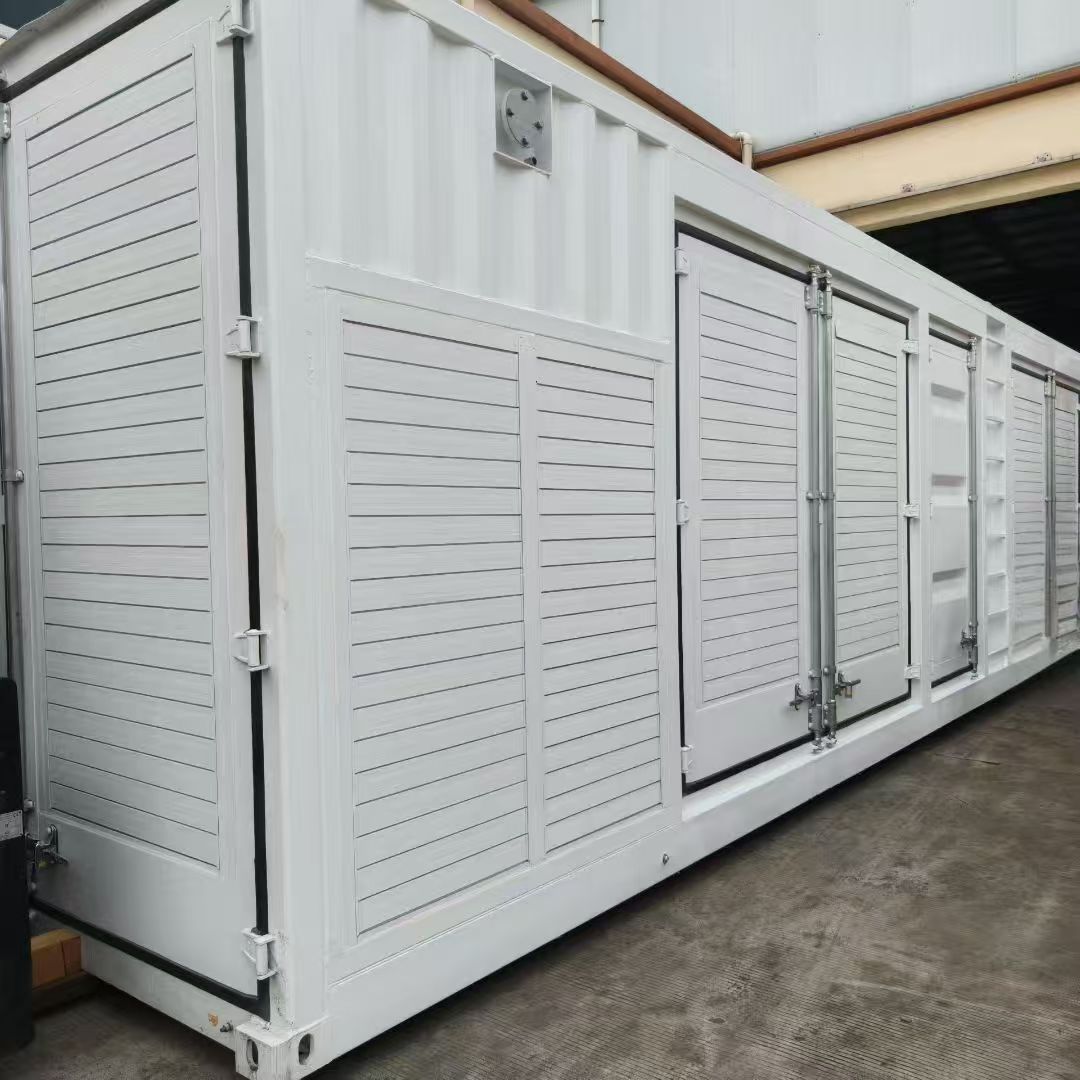

In terms of safety protection, the generator set is fitted with a gas leakage alarm system. Once gas leakage is detected, the system immediately triggers an audible alert to warn on-site personnel. Meanwhile, the control cabinet automatically opens the side louvers of the container for rapid ventilation, effectively reducing potential safety risks.
To adapt to harsh low-temperature environments, all cables of the system are designed to operate reliably within the temperature range of -10°C to -50°C. Additionally, each compartment is equipped with built-in heaters that activate automatically in extreme cold conditions, ensuring the stable performance of the entire generator set. For energy efficiency, the radiator fan only starts when the ambient temperature exceeds 60°C, avoiding unnecessary energy consumption through intelligent temperature-sensing control.
KEY SPECIFFICATIONS

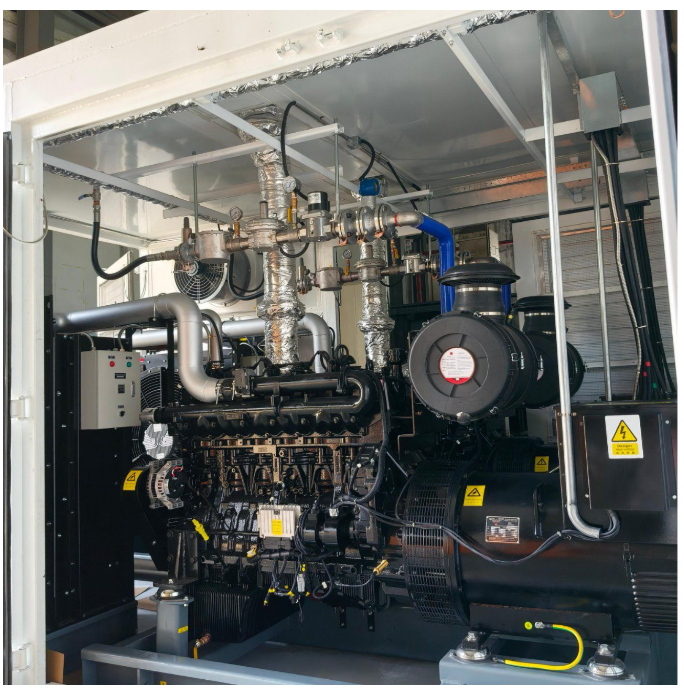

Genset features
1. Engine and alternator shall be mounted on a same frame steel skid.
2. Built-in damper for anti-vibration.
3. World-famous gas engine brand.
4. World-famous AC alternators brand.
5. Intelligent and reliable control module.
6. Full range protection function and alarm shutdown feature.
Alternator Feature
1. Brush-less, 4 poles, rotation magnet.
2. (IP21-23) enclosure i standard for all industrial alternators.
3. The insulation system is Class H
4. Wide range of flange adapters and single bearing disc coupling.
5. AVR auto voltage regulator, auto exciter, auto adjustment
Standard Accessory
Ignition & speed control system, Steel base frame, 3 meters smoke pipe, Exhaust silencer, Flanges, Bellows, Battery and connecting wires, Operation manual and documents, Load test report, Water temperature sensor, Oil-pressure sensor, MCCB, Control panel, Maintaining tools, etc.
Our Advantages
1. Multiple choices: KINGPOWER brand gas engines, Cumins,Deutz or MWM gas engines;
2. Perfect genset configuration: pressure reduce valve, solenoid valve, gas mixer, pressure gauge,electric heater,frequency converter, booster pump, parallel operation system etc.;
3. Widely used in construction site , manufacturing & Industrial Plants, Data Centers, hotels, etc;
4. Independent research and development team to ensure the quality and warranty;
5. Free choice for international or KINGPOWER ignition and speed control system;
Technical Specifications
(Custom configurations available upon request.)
| Genset model: King Power/KPC1250NG | Fuel type: Natural gas |
| Engine brand&Model: KP6TAA1159C-NG | Alternator brand: Robot/RB-250-4 |
| Out-put Power(KW/KVA): 1000/1250 | Speed(RPM): 1500 |
| Output Type: AC Three Phase | Stroke: Four Stroke |
| Sound Level(DB): 103db@7m | Conditions of use: Land use |
| Dimension(MM): 12000*3000*3000 | Gross weight(KGS): 21936 |
| Standard Accessory: Exhaust Silencer, Flexible Pipe, Battery Cables, battery, air breaker |
| Optional Parts: Parallel System, electric heater,safety gas valve system |
| Warranty Period: 1 Year or 1000 Hours from the genset's delivery from the seller, subject to whichever comes first. |
After Sales Service
We can provide customer with on-line training or sending engineers to customer side for face-to-face guidance. Guidance on line is free for the whole life span of the generator set.
One year or 1000 hours warranty will be provided to our customer, during which all the spare parts will be provided for free if it was proved that the problem is caused by our product's quality defect.
Our after-sales staffs will communicate with customer by phone regularly so as to know the machine usage, give some maintenance measures and help customers solve problems.
Why Choose Us?
1. Perfect protection;
2. Different power solutions can be customized according to different voltage, frequency, power.
3. Wide power coverage (20-3000KW), and equipped with world famous engine, alternator and control brands;
4. Can be started and carry with full load within 12s;
5. Compact structural design;
6. International and professional control module promise Simple operation and stable performance;
7. Multiple optional configuration: biogas desulfurization, synchronizing, remote monitor and control system, etc;
8. Strict load test from 0, 10%, 20%, 50%, 75% to 100% before delivery;
10.Complete accessory;
FAQ
1.Q: What is your minimum order quantity for this product?
A: 1 Set.
2. Q: What is your generator power range?
A: 10kw-3000kw.
3. Q: Is it okay to make the customer's own brand?
A: We can be your OEM manufacturer.
4. Q: What is the delivery time?
A: The fastest 15 working days after receiving the 30% T/T deposit.
5. Q: Where is your loading port?
A: Shenzhen port or according to customers' requirement.
6. Q: What is your company's available production capacity?
A: 500 units per year.
7.Q: What is the warranty period?
A: 12 months after shipment or 1000 working hours.
