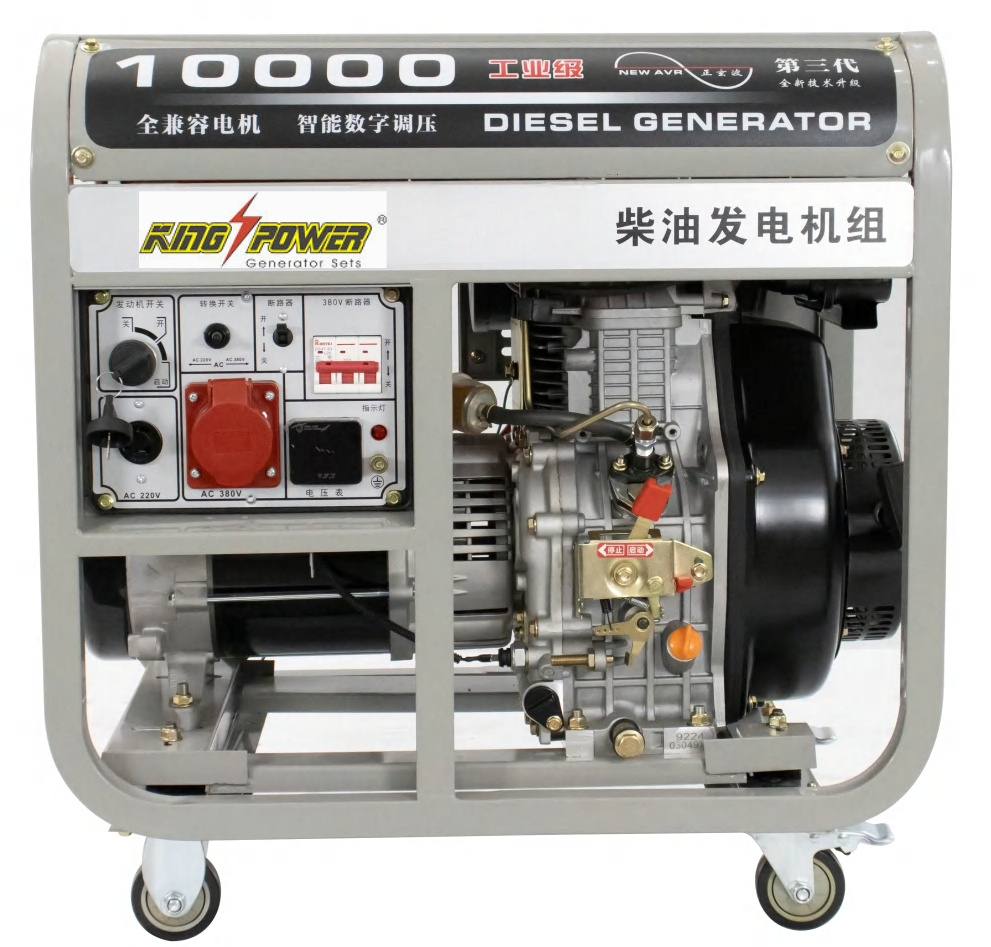

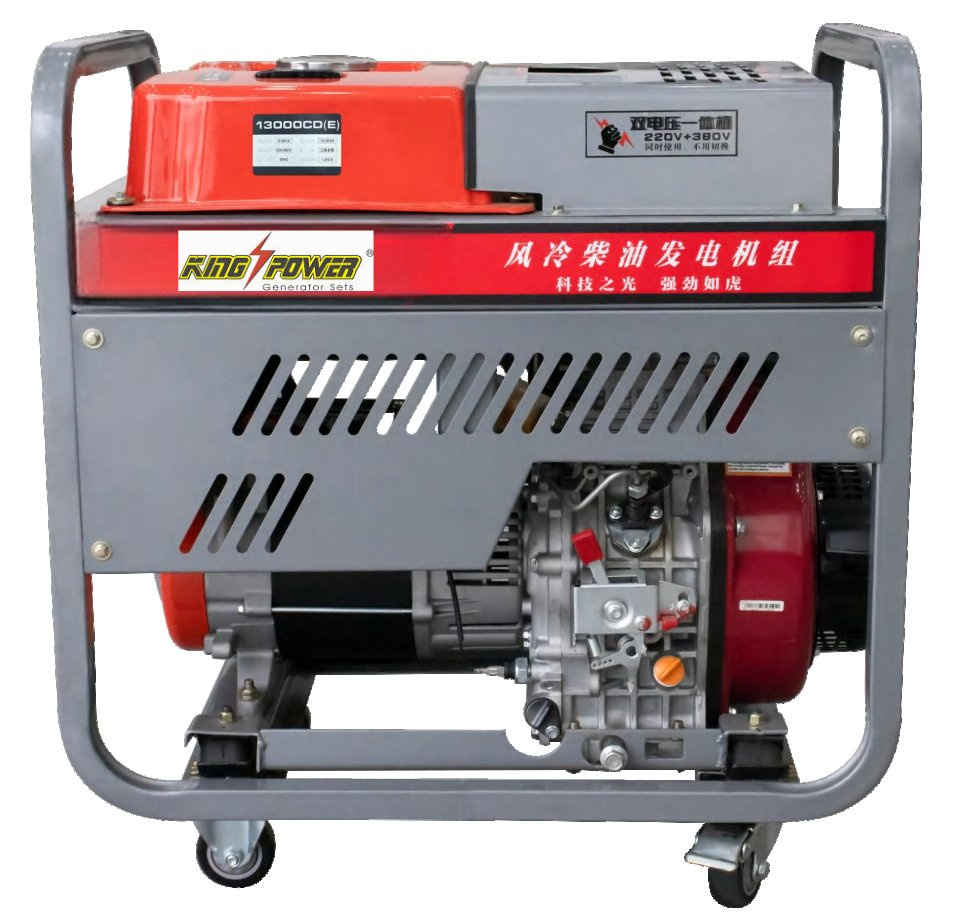

KP12000CE/KP12800CE/KP13000CE
KING POWER
85021100
Applications
1.Sturdy and durable – engineered for construction sites, farms, outdoor operations, emergency backup and off-grid power scenarios.
2.Strong power & stable output – single-cylinder, direct-injection design provides steady, reliable power under heavy load.
3.High fuel efficiency – optimized direct injection and combustion system lowers operating costs.
4.Enhanced safety – diesel fuel has lower flammability, making it safe for outdoor, remote and long-hour continuous use.
5.Long service life – robust frame and high-quality parts support reliable long-term operation.
6.Easy maintenance – user-friendly structure reduces daily inspection and servicing effort.
7.Wide applications – ideal for open-frame diesel generators, silent diesel generators, mobile power, water pumps, fire pumps and welding generators.
Key Configurations
Engine features
1.Single-cylinder, 4-stroke, air-cooled, direct-injection diesel engine.
2.Recoil / electric start system for quick and easy startup.
3.Efficient air cooling system ensures stable performance during long-time running.
5.Optimized combustion chamber and injection for low fuel consumption.
6.High-strength wear-resistant components for extended service life.
Technical Specifications
Rated.power(KW) | 7 | 8 | 9 |
Max.power(KW) | 7.5 | 8.5 | 9.5 |
Rated voltage(V) | 230/400 | 230/400 | 230/400 |
Frequency(HZ) | 50 | 50 | 50 |
Power factor(cosfi) | 1.0/0.8 | 1.0/0.8 | 1.0/0.8 |
Engine Model | KP192F | KP175F | KP1100F |
Engine type | Single-cylinder,4-stroke,air-cooled,direct-injection | ||
BorexStroke(mm) | 92*75 | 95x75 | 100x85 |
Displacement(cc) | 498 | 532 | 667 |
Starting Mode | Recoil start/Electric start | ||
Oil volume(L) | 1.65 | 1.65 | 2.0 |
Lube type | CF-4 15W40 | CF-4 15W40 | CF-4 15W40 |
Fuel tank capacity(L) | 25 | 25 | 25 |
Fuel type | 0#in summer,-10#in winter,diesel oil | ||
Dimension(mm) | 710x555x690 | ||
Net weight(kg) | 118 | 120 | 135 |
After Sales Service
We can provide customer with on-line training or sending engineers to customer side for face-to-face guidance. Guidance on line is free for the whole life span of the generator set.
One year or 1000 hours warranty will be provided to our customer, during which all the spare parts will be provided for free if it was proved that the problem is caused by our product's quality defect.
Our after-sales staffs will communicate with customer by phone regularly so as to know the machine usage, give some maintenance measures and help customers solve problems.
Why Choose Us?
1. Perfect protection;
2. Different power solutions can be customized according to different voltage, frequency, power.
3. Wide power coverage (6-3000KVA), and equipped with world famous engine, alternator and control brands;
4. Can be started and carry with full load within 12s;
5. Compact structural design with lugs for hoisting transportation;
6. Vertical and base fuel tank with basting pre-treatment, making it possible for longer life span in outdoor use;
7. International and professional control module promise Simple operation and stable performance;
8. Multiple optional configuration: ATS, synchronizing, preheating, tropical radiator, remote monitor and control
system, etc;
9. Strict load test from 0, 10%, 20%, 50%, 75% to 100% before delivery;
10.Complete accessory;
FAQ
1.Q: What is your minimum order quantity for this product?
A: 1 Set.
2. Q: Is it okay to make the customer's own brand?
A: We can be your OEM manufacturer.
3. Q: What is the delivery time?
A: The fastest 15 working days after receiving the 30% T/T deposit.
4. Q: Where is your loading port?
A: Shenzhen port or according to customers' requirement.
5. Q: What is your company's available production capacity?
A: 500 units per year.
6.Q: What is the warranty period?
A: 12 months after shipment or 1000 working hours.
