Single & Three Phase 50Hz 220V 230V 380V Small Power Home Use Diesel Generator

Name: Single & Three Phase 50Hz 220V 230V 380V Small Power Home Use Diesel Generator
Brand: KING POWER
Rating: 5.0 (15 reviews)

Kingpower silent diesel generator, single/three phase 50Hz, 220V/230V/380V. Compact small power genset for home standby power. Low noise, stable output, ideal for residential emergency backup power supply.

Quantity:
Availability:





Inquire Add to Basket

Model:
KPG13RK
Brand:
KING POWER
Code:
8502110000

Product Description

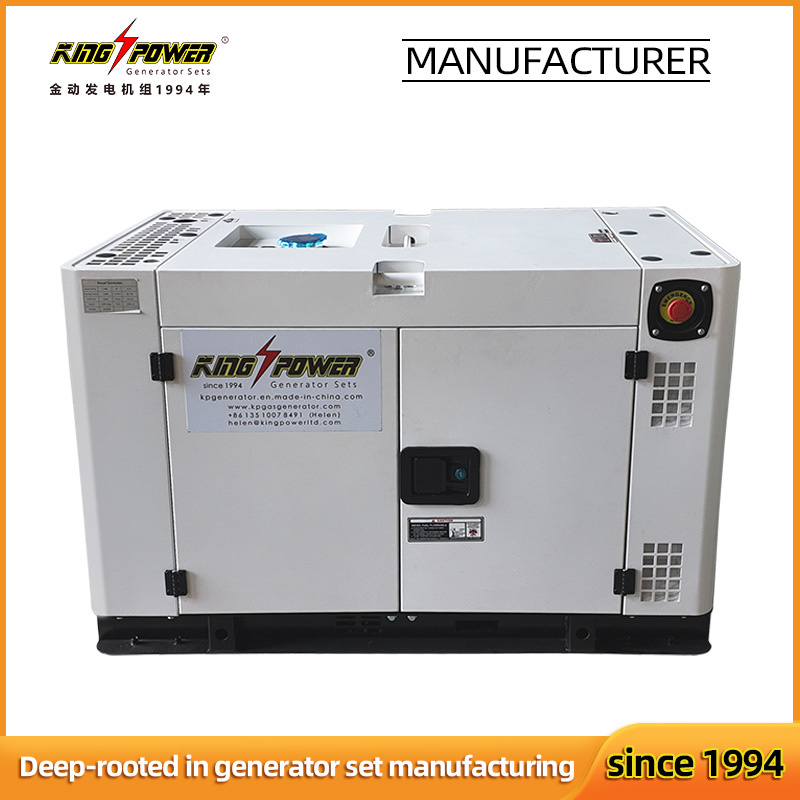

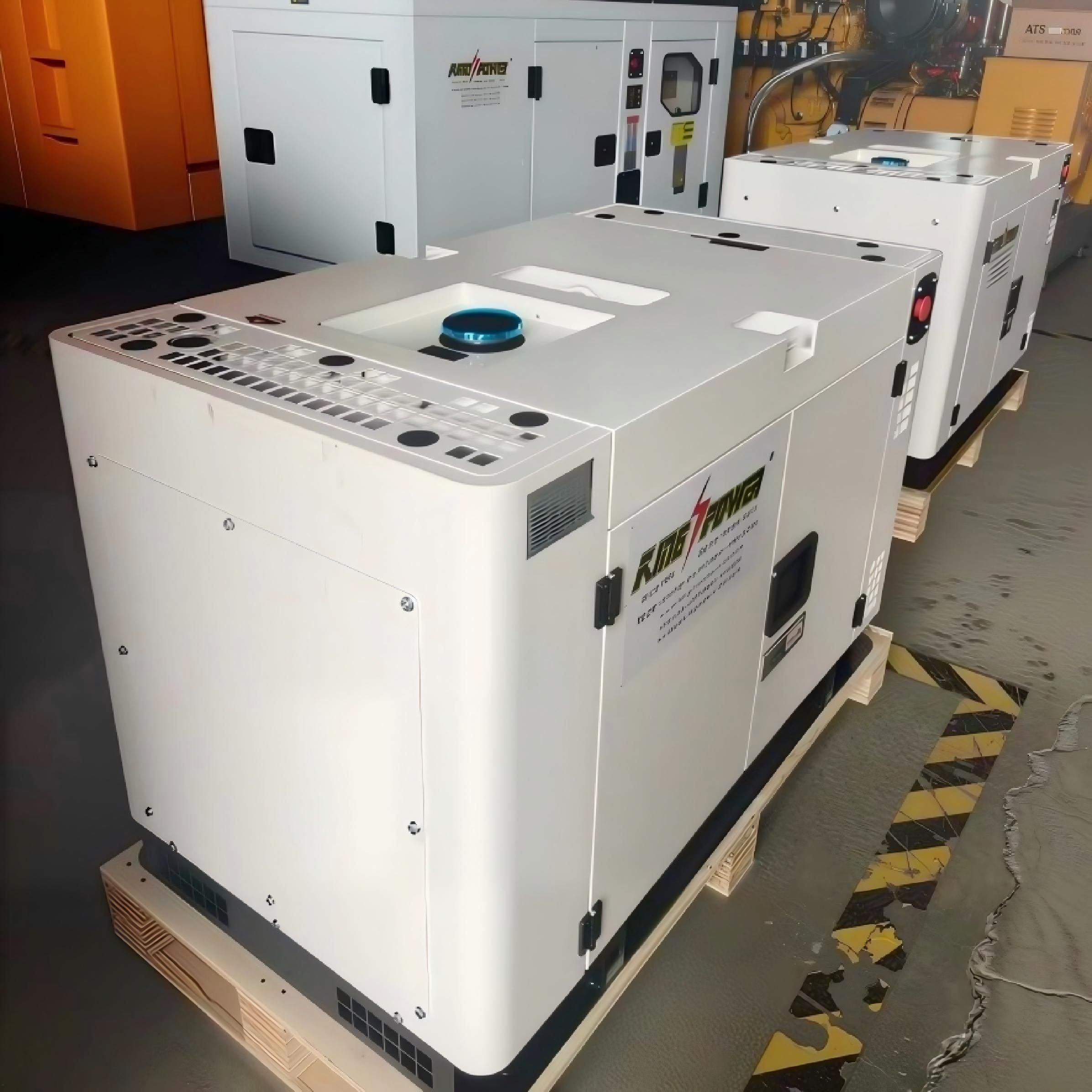

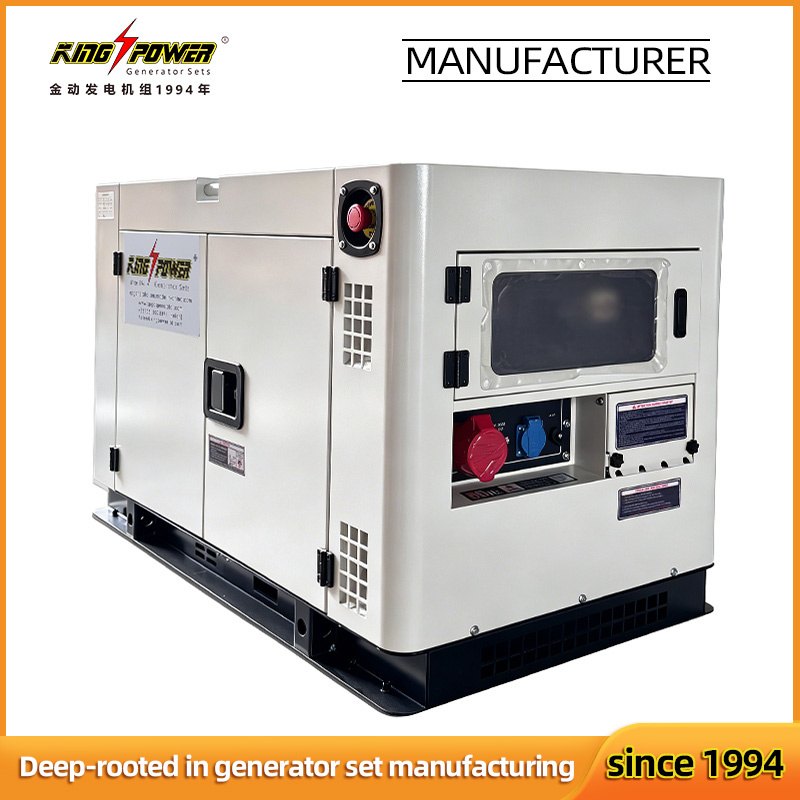

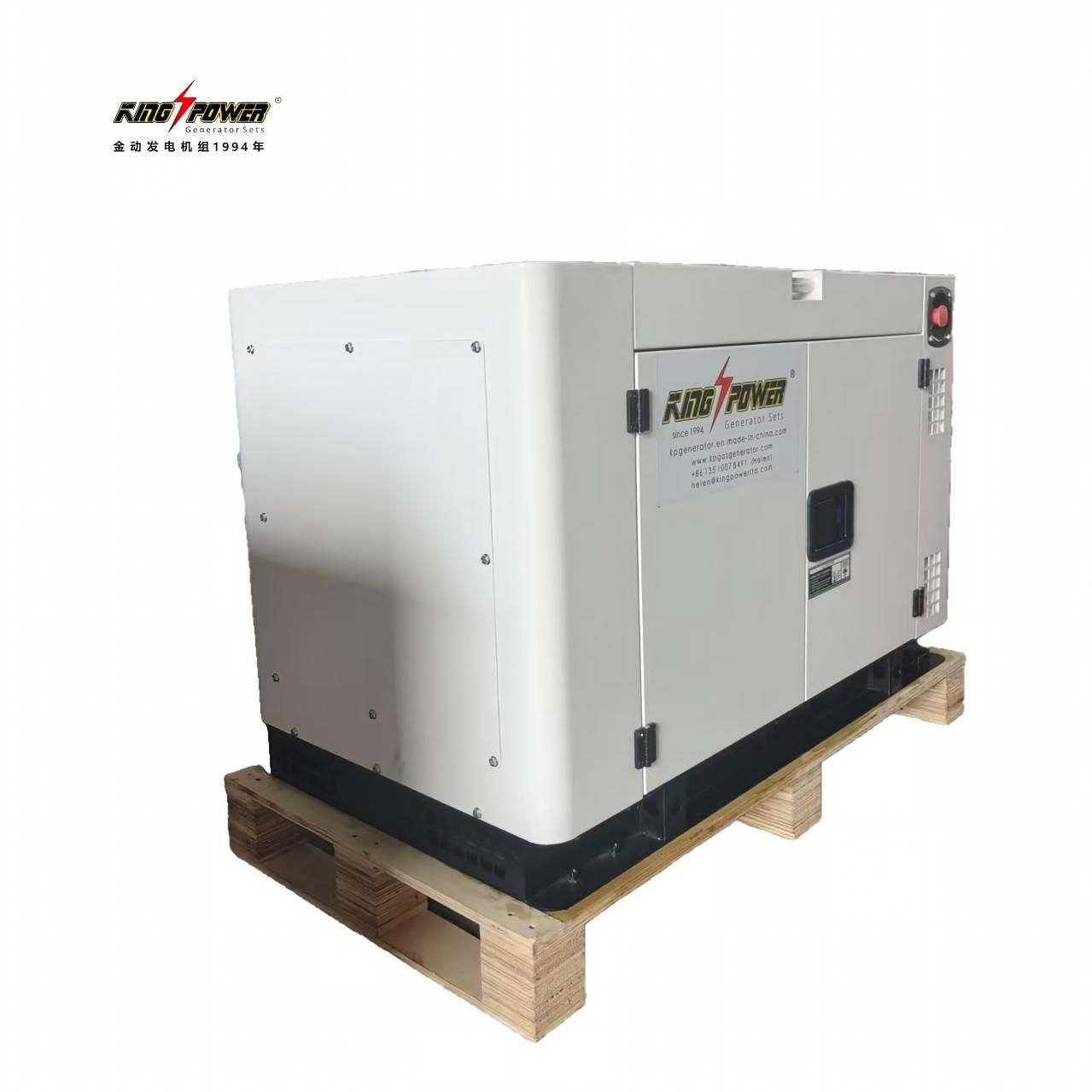

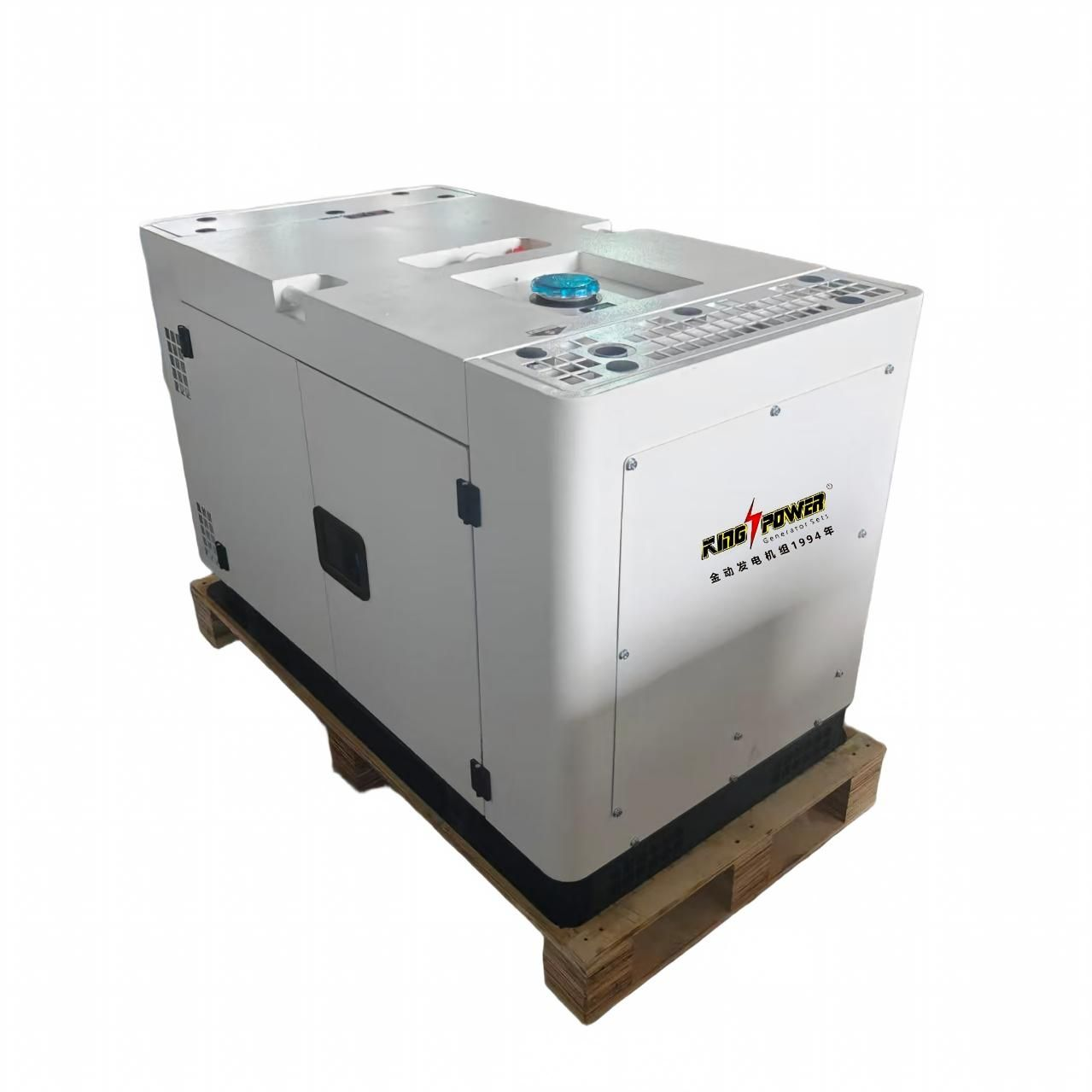

10kW Silent-Type Small Diesel Generator Set

This 10kW rated silent diesel genset provides stable, clean backup power for noise-sensitive locations. Built with a fully enclosed soundproof canopy, it adopts premium flame-retardant acoustic padding and multi-stage impedance muffler design to cut mechanical and exhaust noise. It reaches only 75–78 dB(A) at 7 meters, meeting noise requirements for homes, hospitals, schools and hotels.

Specification

Power System & Performance

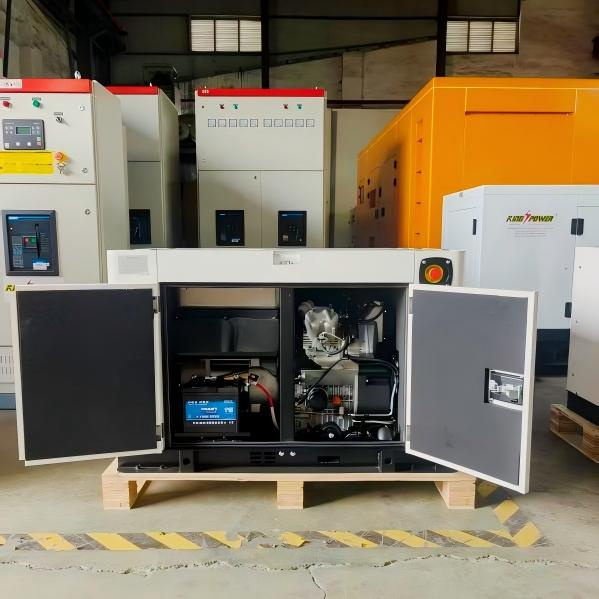

This 10kW silent diesel generator runs on a 997cc V-twin four-stroke direct injection diesel engine. Standard electric start supports reliable ignition, while optional ATS enables automatic power switchover for emergency backup. Equipped with a 26L fuel tank, it offers 8–12 hours continuous full-load operation with excellent fuel efficiency to lower running costs.

Electrical Performance & Configuration

It delivers switchable single/three-phase 220V/380V output at power factor 1.0. Built-in AVR stabilizes clean power for precision instruments and general loads. Measuring 1180×660×830mm and weighing 260–325kg, it supports optional tow trailer or vehicle-mounted installation. Standard features include starting battery, industrial muffler, monitoring panel and multi-protection system. Remote start and remote monitoring are available as upgrades to fit diverse application scenarios.

Technical Specifications

Genset model: King Power/KPG13RK		Fuel type: Diesel
Engine brand&Model: Robot/RK-2100ZDS-E		Alternator brand: Robot/RB-10-4
Out-put Power(KW/KVA): 10/13		Speed(RPM): 1500
Output Type: AC Three Phase		Stroke: Four Stroke
Sound Level(DB): <78db@7m		Voltage(V): 380V/220V
Dimension(MM):1180660830		Gross weight(KGS): 270

After Sales Service

The genset carries a 1-year or 1000-hour warranty from seller delivery, whichever comes first. Within the warranty term, buyers can obtain warranty coverage from engine/alternator manufacturers as well as King Power. Every generator set undergoes strict pre-delivery testing. King Power offers complimentary technical support and spare parts under warranty. We also provide paid installation and commissioning assistance when required. Free lifetime online technical support is available for all customers.

Why Choose Us?

1. Perfect protection;
2. Different power solutions can be customized according to different voltage, frequency, power.
3. Wide power coverage (6-3000KVA), and equipped with world famous engine, alternator and control brands;
4. Can be started and carry with full load within 12s;
5. Compact structural design with lugs for hoisting transportation;
6. Vertical and base fuel tank with basting pre-treatment, making it possible for longer life span in outdoor use;
7. International and professional control module promise Simple operation and stable performance;
8. Multiple optional configuration: ATS, synchronizing, preheating, tropical radiator, remote monitor and control
system, etc;
9. Strict load test from 0, 10%, 20%, 50%, 75% to 100% before delivery;
10.Complete accessory;
