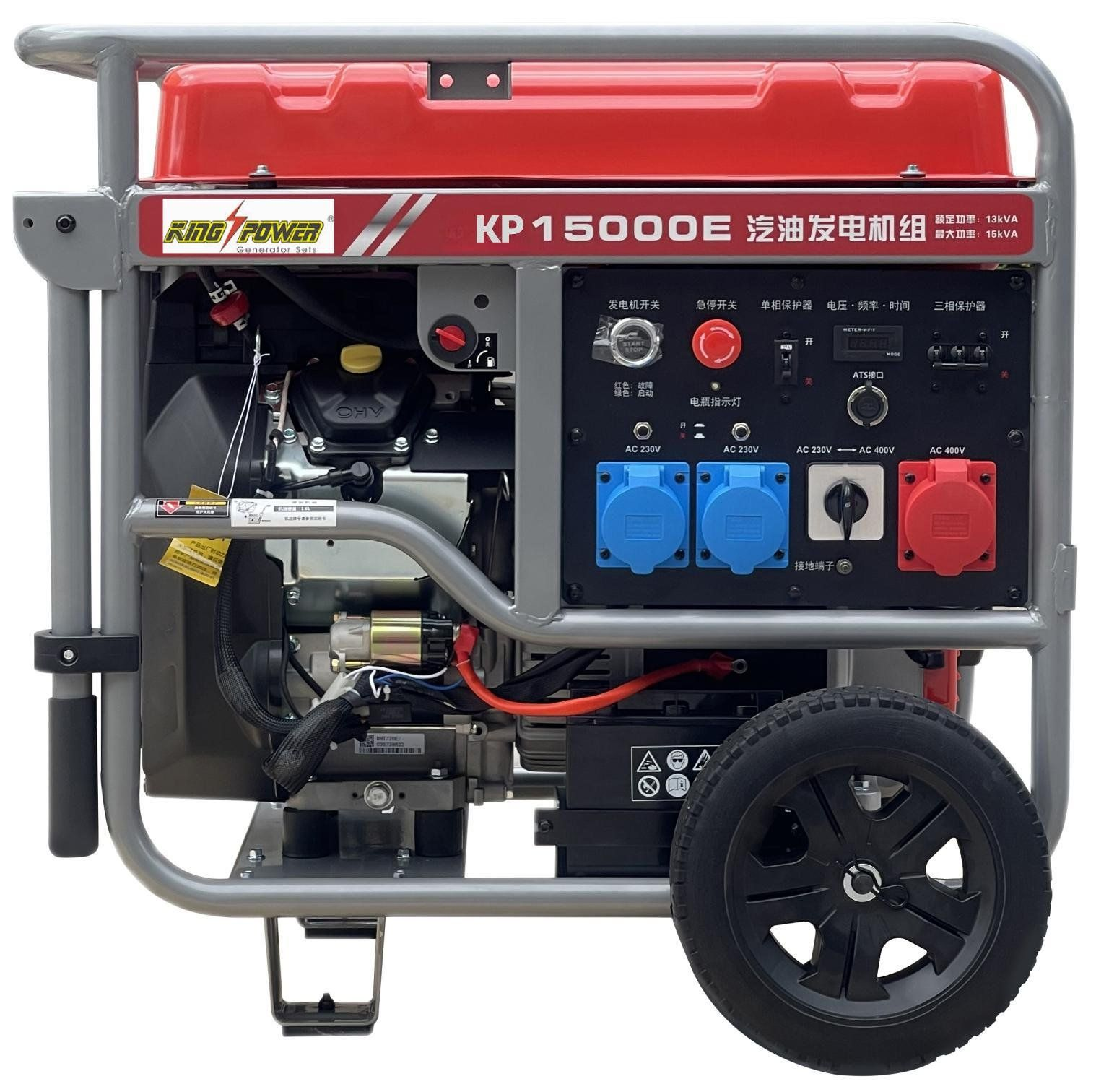

KP13000LED/KP15000LED/KP16500LED
KING POWER
8502200090
Specification
Applications
1.Sturdy and durable – built for heavy-duty industrial, farm, construction and standby power scenarios.
2.Strong power & stable output – two-cylinder design delivers smooth, consistent power under full load.
3.High fuel efficiency – optimized injection and combustion for lower running cost.
4.Enhanced safety – gasoline fuel is less flammable, ideal for outdoor, remote and long-hour use.
5.Long service life – rugged structure and premium components support continuous operation.
6.Easy maintenance – accessible layout simplifies daily checks and servicing.
7.Wide applications – suitable for silent gasoline generators, mobile power units, water pumps, fire pumps, pressure washers and welding generators
Key Configurations
Engine features
1.Two-cylinder, 4-stroke, air-cooled, OHV gasoline engine structure.
2.Reliable electric start system for fast and convenient startup.
3.Efficient forced air cooling to maintain stable performance during long-time running.
4.Optimized combustion chamber and injection system for low fuel consumption.
5.High-strength wear-resistant moving parts for extended durability.
6.Integrated safety protections including low oil pressure and overheat warning to avoid damage.
Technical Specifications
Excitation mode | AVR voltage automatic adjustment | ||
Rated power(KW) | 10 | 12 | 13 |
Max.power(KW) | 11 | 13.5 | 15 |
Voltage(V) | 230/400 | 230/400 | 230/400 |
Pase number | Single-phase/Three-phase | ||
Power factor(cosfi) | 1.0/0.8 | 1.0/0.8 | 1.0/0.8 |
Insulation grade | F | F | F |
Engine model | KP720E | KKP760E | KP760E |
BorexStroke(mm) | 80x71 | 82x72 | 82x72 |
Displacement(cc) | 713 | 760 | 760 |
Fuel consumption | 374 | 374 | 374 |
Ignition mode | Inductive discharge | ||
Engine type | V-twin,air-cooled,4-stroke,OHV | ||
Oil volume(L) | 1.5 | 1.5 | 1.5 |
Starting system | Electric start | ||
Fuel tank capacity(L) | 50 | 50 | 50 |
Fuel type | 92#and above unleaded gasoline | ||
Battery capacity | 12V-36AH maintenance-free battery | ||
Control panel | Digital display | ||
Packing size(mm) | 840x610x935 | 840x610x935 | 840x610x935 |
Weight(kg) | 155 | 160 | 165 |
After Sales Service
We can provide customer with on-line training or sending engineers to customer side for face-to-face guidance. Guidance on line is free for the whole life span of the generator set.
One year or 1000 hours warranty will be provided to our customer, during which all the spare parts will be provided for free if it was proved that the problem is caused by our product's quality defect.
Our after-sales staffs will communicate with customer by phone regularly so as to know the machine usage, give some maintenance measures and help customers solve problems.
Why Choose Us?
1. Perfect protection;
2. Different power solutions can be customized according to different voltage, frequency, power.
3. Wide power coverage (6-3000KVA), and equipped with world famous engine, alternator and control brands;
4. Can be started and carry with full load within 12s;
5. Compact structural design with lugs for hoisting transportation;
6. Vertical and base fuel tank with basting pre-treatment, making it possible for longer life span in outdoor use;
7. International and professional control module promise Simple operation and stable performance;
8. Multiple optional configuration: ATS, synchronizing, preheating, tropical radiator, remote monitor and control
system, etc;
9. Strict load test from 0, 10%, 20%, 50%, 75% to 100% before delivery;
10.Complete accessory;
FAQ
1.Q: What is your minimum order quantity for this product?
A: 1 Set.
2. Q: Is it okay to make the customer's own brand?
A: We can be your OEM manufacturer.
3. Q: What is the delivery time?
A: The fastest 15 working days after receiving the 30% T/T deposit.
4. Q: Where is your loading port?
A: Shenzhen port or according to customers' requirement.
5. Q: What is your company's available production capacity?
A: 500 units per year.
6.Q: What is the warranty period?
A: 12 months after shipment or 1000 working hours.
