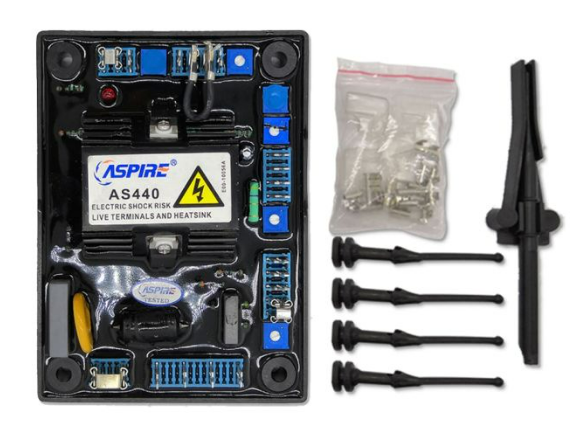

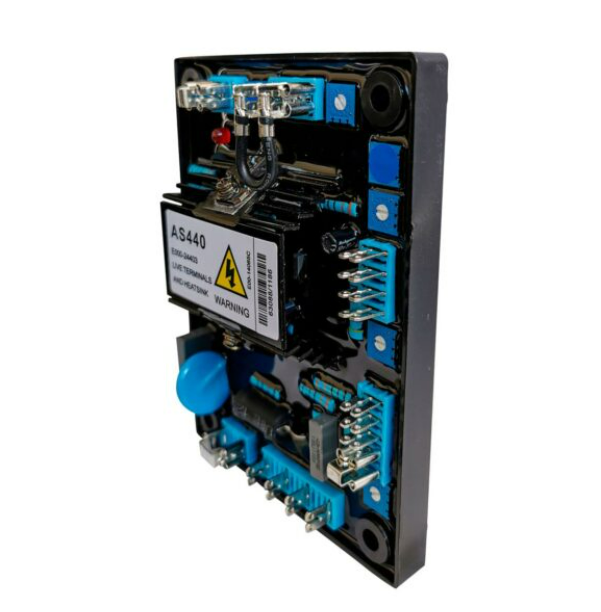

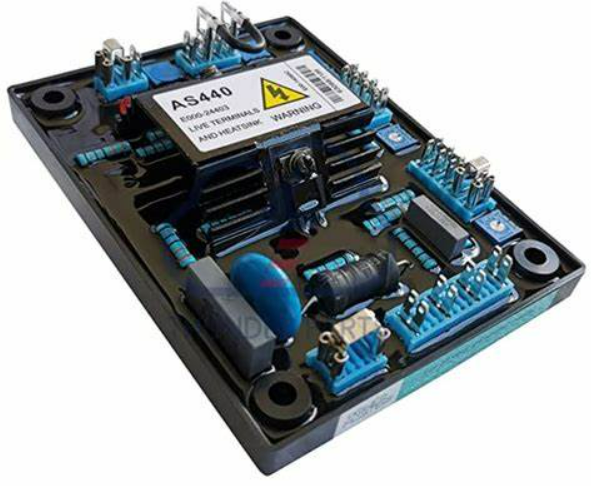

AS440
KING POWER
8503009090
The AS440 AVR is a high-performance Automatic Voltage Regulator engineered to stabilize generator output voltage by dynamically adjusting excitation current. It compensates for load fluctuations, ensuring consistent voltage levels and protecting sensitive equipment from power irregularities. Ideal for industrial, marine, and backup generator applications, the AS440 combines precision, reliability, and ease of use.
Dynamic Voltage Regulation: Compensates for sudden load changes to maintain ±1% voltage stability.
Compact & Durable Design: Robust housing for harsh environments (IP54 rating).
User-Friendly Interface: Adjustable settings via front-panel dials or remote control.
Overload & Short-Circuit Protection: Safeguards generator and connected loads.
Wide Compatibility: Suitable for brushless and brushed generators (up to 1500 kVA).
| Specification | Details |
|---|---|
| Input Voltage Range | 85–265V AC (single-phase) or 170–530V AC (three-phase) |
| Output Voltage Range | Adjustable (e.g., 200–240V or 380–440V, configurable) |
| Frequency Range | 50/60 Hz (auto-sensing) |
| Response Time | <20 ms (for load changes) |
| Protection Features | Overvoltage, undervoltage, overcurrent, and short-circuit shutdown |
| Operating Temperature | -20°C to +60°C |
| Mounting Options | DIN rail or panel-mount |
| Approvals | CE, ISO 9001, RoHS-compliant |
Backup power systems (UPS, emergency generators)
Industrial machinery (pumps, compressors)
Marine generators (ships, offshore platforms)
Renewable energy systems (wind, hydro)
The AS440 AVR enhances generator efficiency, reduces downtime, and extends equipment lifespan, making it a trusted choice for critical power applications.
