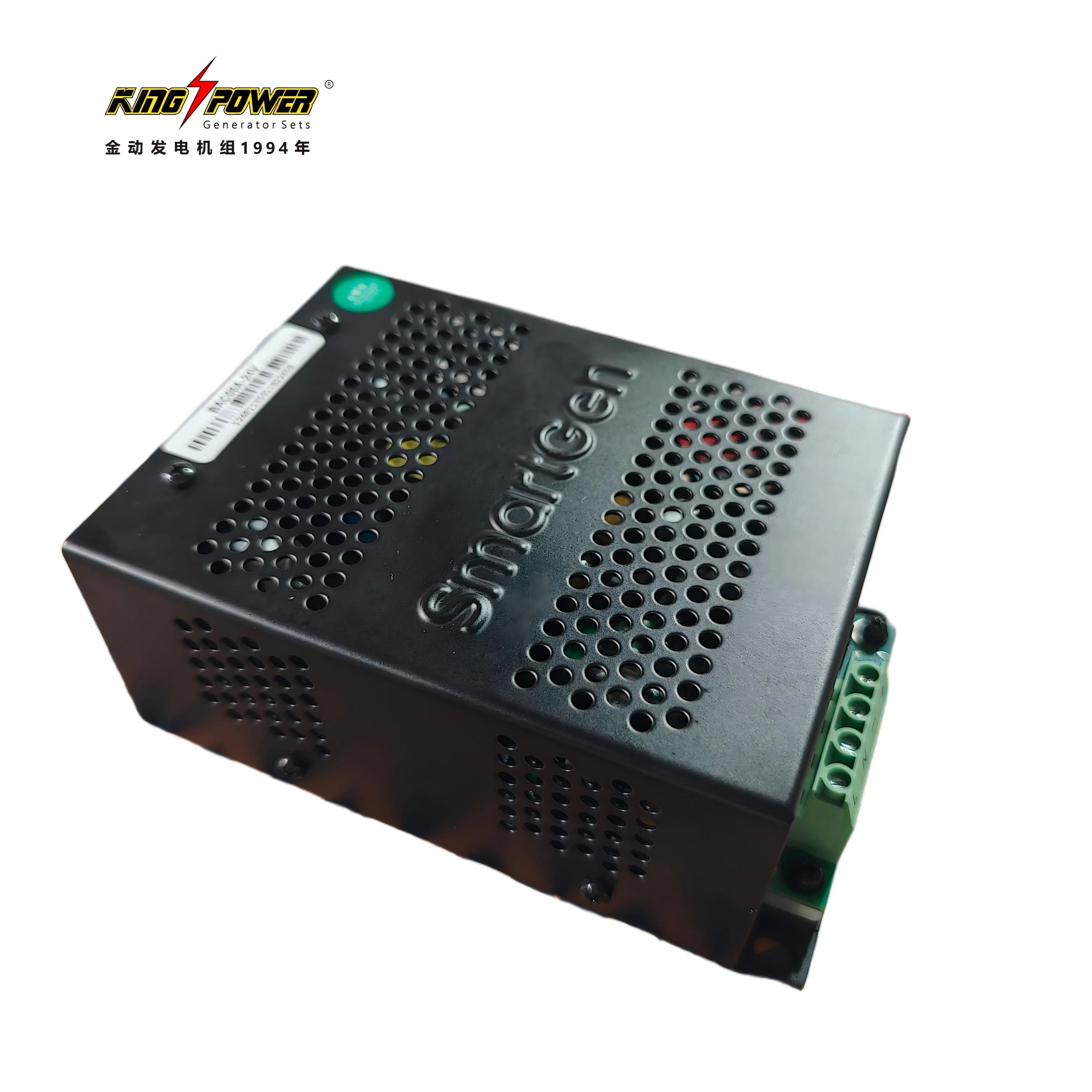

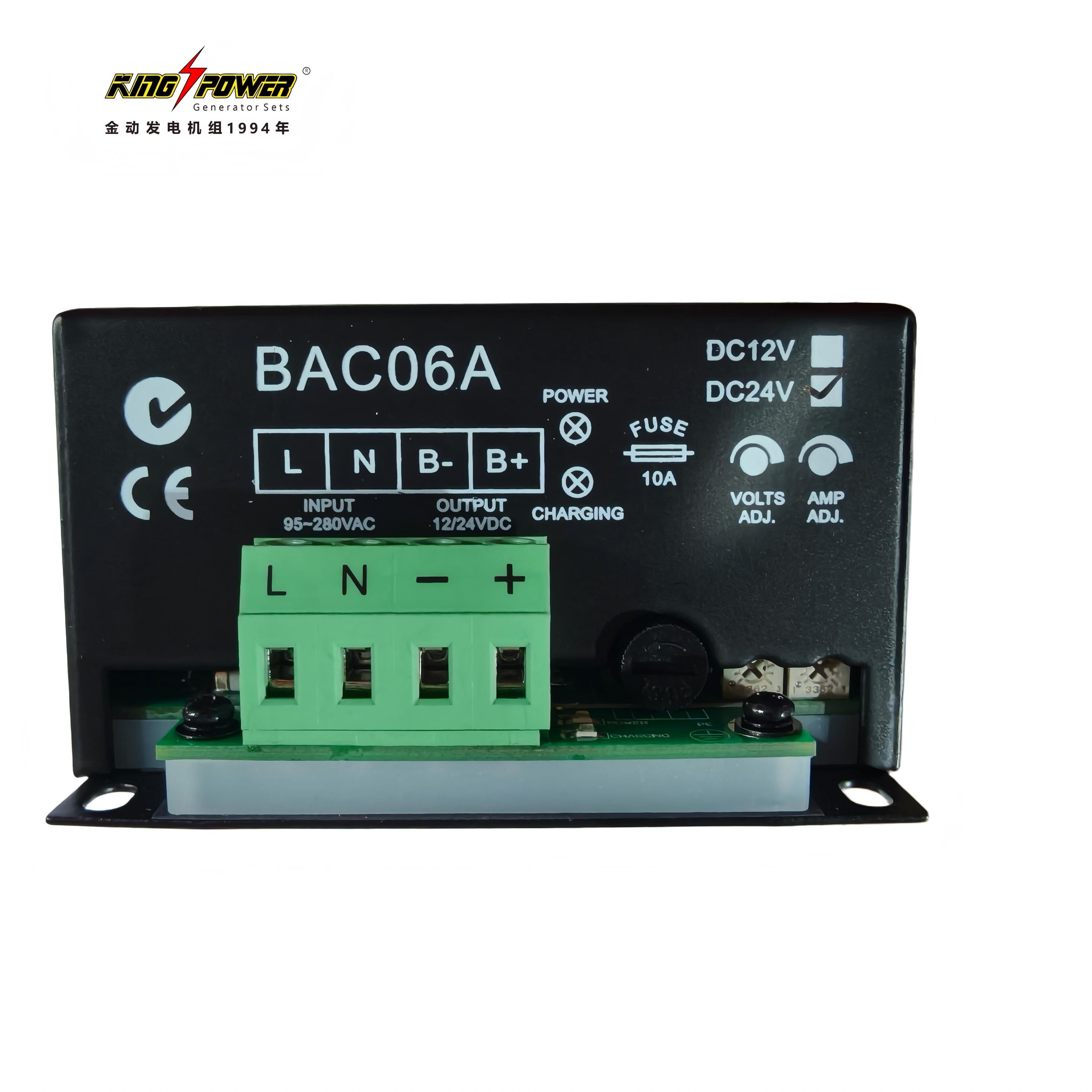

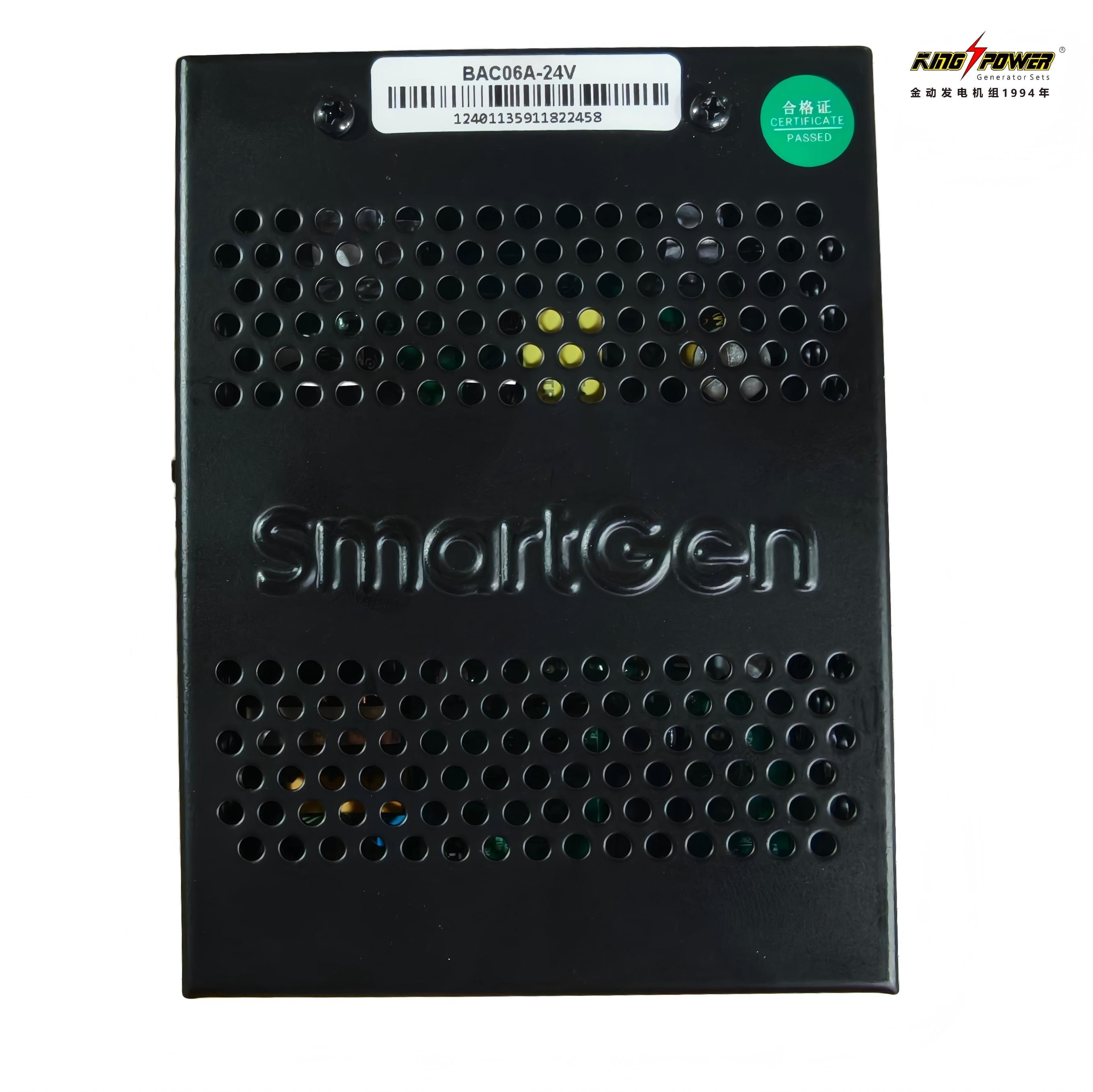

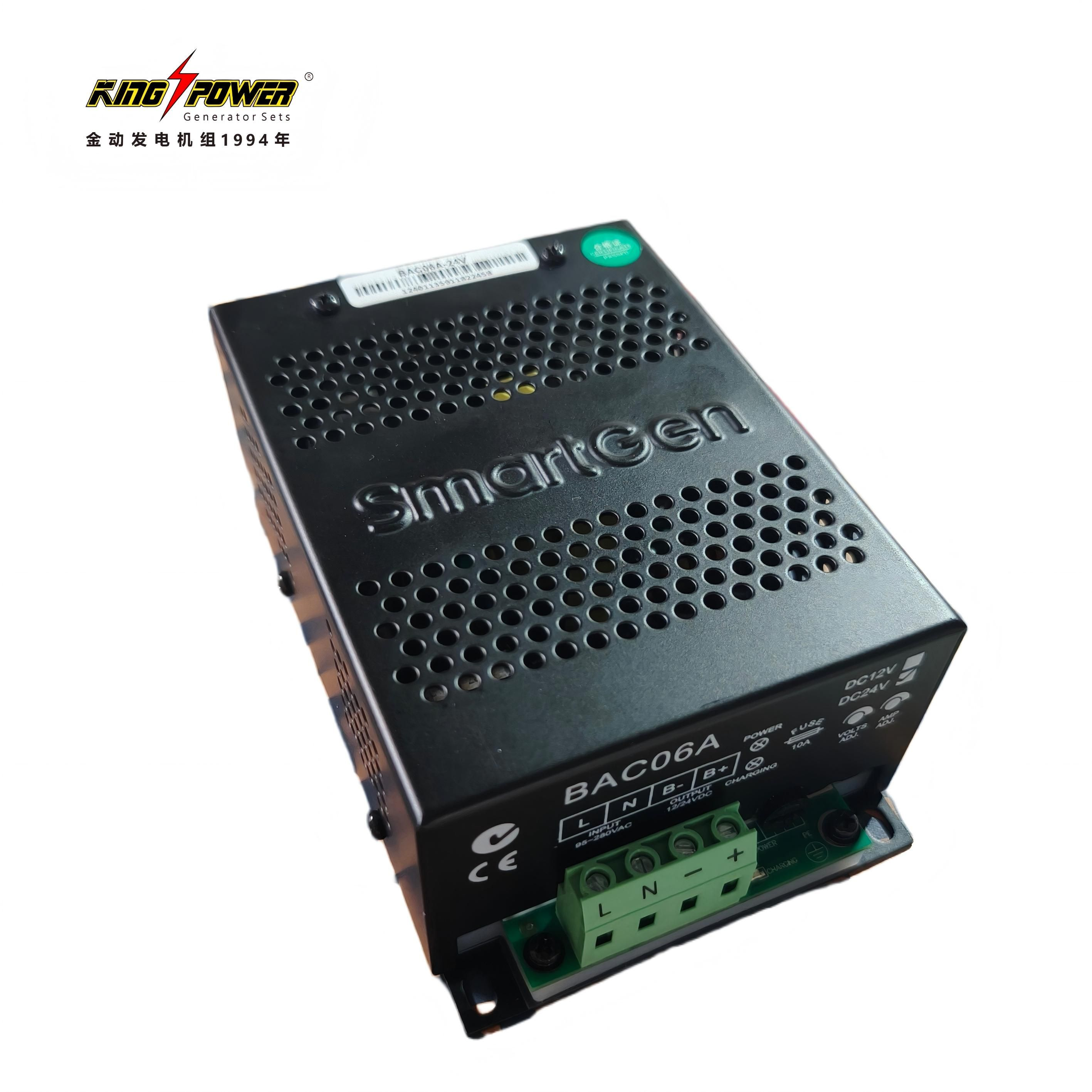

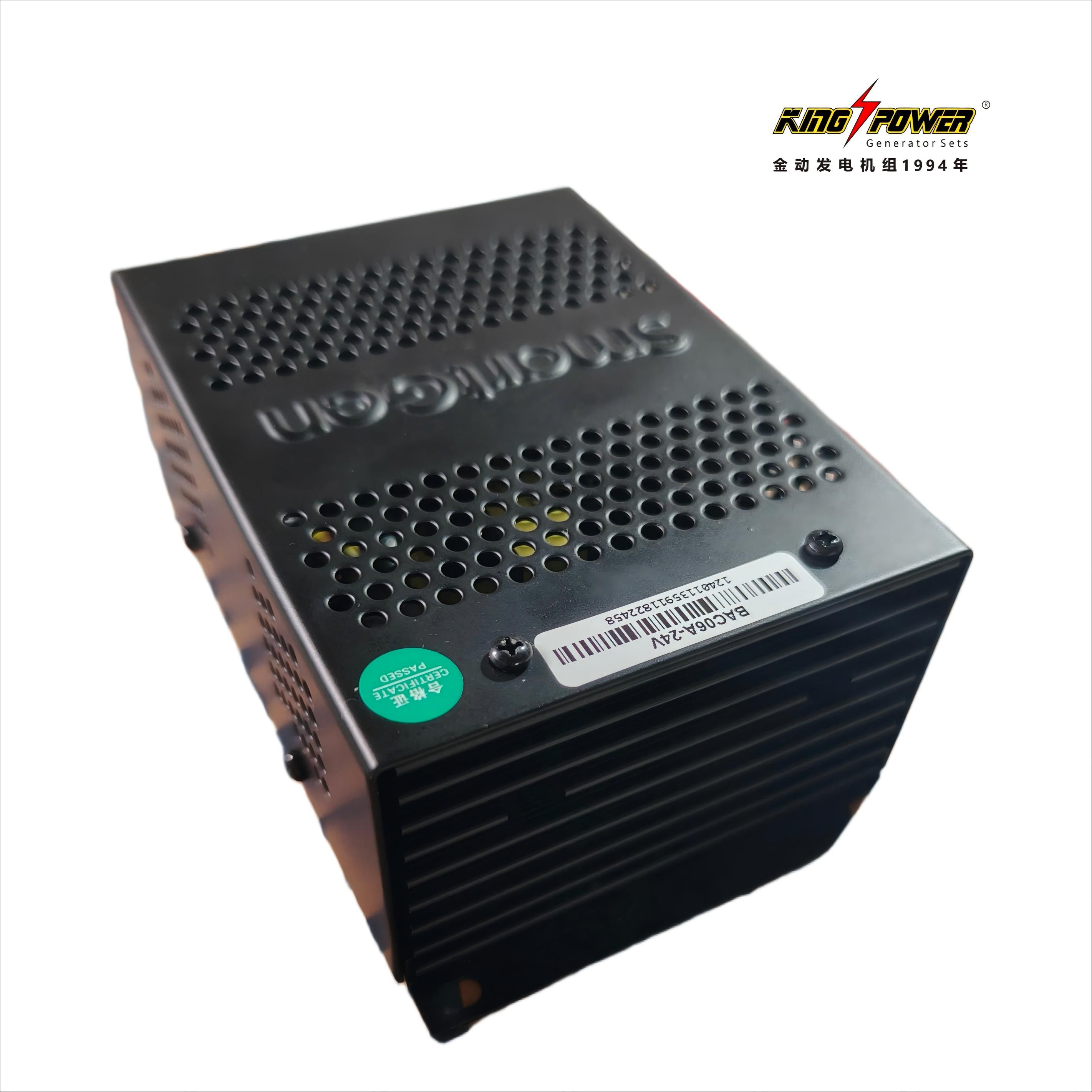

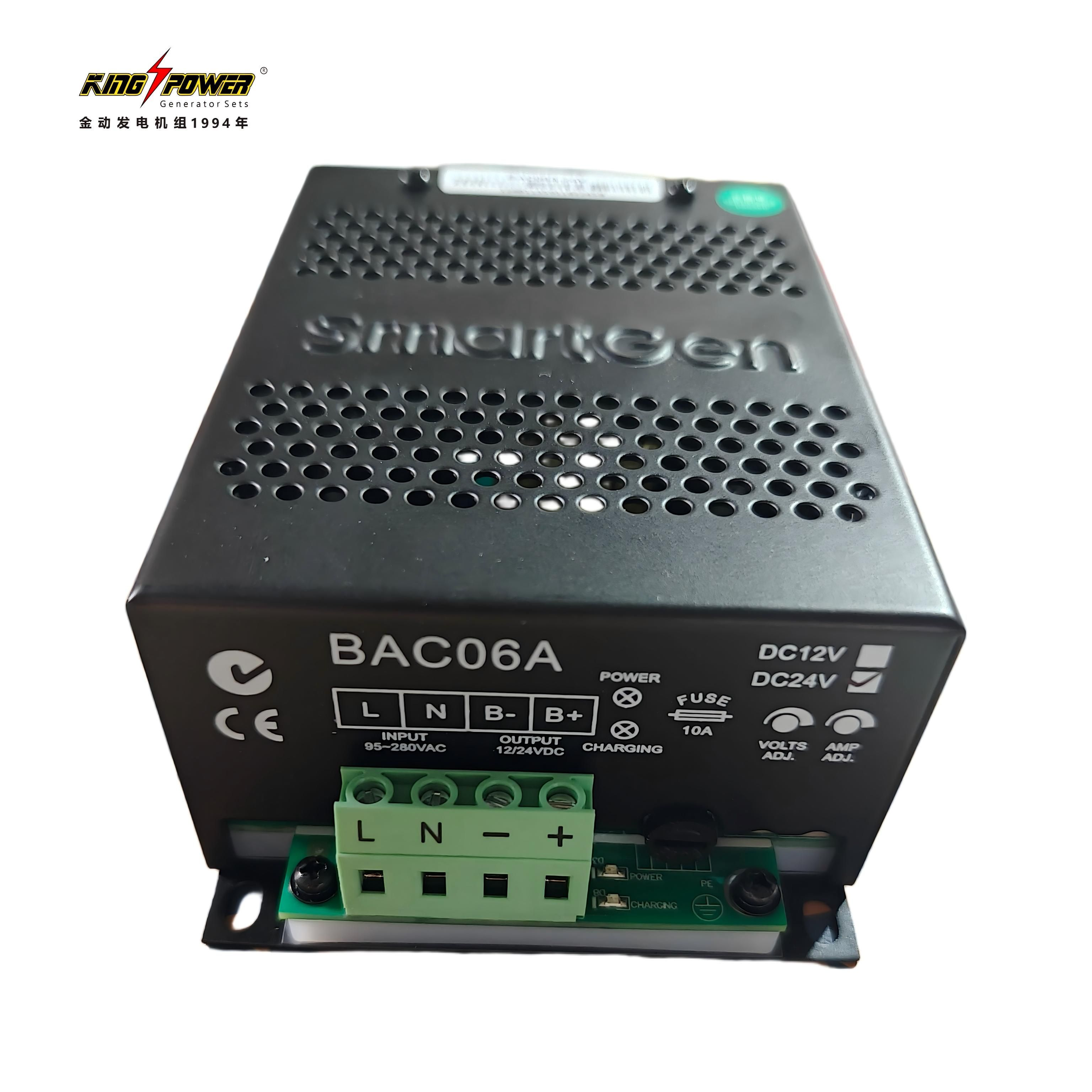

Float Charger Spare Parts for Diesel Generator Battery

Product Introduction

All standby diesel generator sets rely on 12V or 24V DC starter batteries to support core components including the starter motor, electronic governor and entire control cabinet. These batteries sit idle for long stretches under normal grid power and slowly lose power via natural self-discharge over time. That’s where a mains-powered battery float charger, or trickle charger, becomes an essential genset spare part. This steady floating charging mechanism sustains the battery’s full charge around the clock. It eliminates the risk of dead batteries and frustrating crank-no-start faults the second a sudden mains power failure hits, guaranteeing your diesel generator can fire up instantly for emergency backup power whenever required.

How Diesel Genset Battery Float Charger Operates

A complete floating charging assembly for standby diesel generators links directly to standard mains AC power such as 230V or 480V grid supply. The built-in battery float charger converts alternating mains current into stable, regulated 24V direct current for generator lead-acid starter batteries. It runs under a precise float voltage curve calibrated between 27.2V and 27.6V at 20°C ambient temperature. This targeted voltage level effectively offsets inherent battery self-discharge and preserves full chemical charge capacity, while staying low enough to avoid harmful electrolyte gassing and internal electrode corrosion. Different from high-current bulk charging or equalization charging modes, genset trickle float chargers supply minimal output current under 2A. This low trickle current continuously replenishes lost battery power and simultaneously energizes auxiliary equipment including the generator control panel and engine block heater for all standby power units.

Key Components & Core Features of 24V Diesel Genset Float Charger

Our heavy-duty 24V battery float charger for standby diesel generator sets comes equipped with all essential functional parts and premium performance features for long-term battery maintenance:

1. Built-in Automatic Voltage Regulation (AVR)

   Stabilizes DC output automatically to offset unstable mains voltage swings, delivering consistent charging power to genset starter batteries without voltage spikes.

2. Intelligent Temperature Compensation Function

   Dynamically tweaks floating voltage according to surrounding ambient temperature. It avoids overcharging in high-temperature environments and insufficient charging under cold weather.

3. Multi-layer Safety Protection Circuits

   Integrated short-circuit, reverse-polarity and overcurrent protection modules fully shield both the float charger unit and lead-acid starting batteries from irreversible damage.

4. Clear Visual Status Display Indicators

   Equipped with LED indicator lights or digital LCD screens that real-time display charging voltage, working current and trigger fault warning alerts for easy on-site inspection.

Advantages of Float Charger for Diesel Generators

I. Core Advantages for Diesel Generator Systems

1. Prevents starter battery self-discharge

   Standby diesel gensets stay idle most of the time. This trickle float charger delivers tiny constant current to offset natural power loss, fully eliminating crank-no-start faults once blackouts hit.

2. Extends lead-acid battery service life

   Precise adjustable float voltage with temperature compensation avoids overcharging, gassing and plate corrosion, greatly cutting battery replacement costs for generator users.

3. Stabilizes full generator control system

   Supplies steady DC power to the genset control panel, electronic governor and block heater under mains normal operation, keeping all electrical components ready.

4. Built-in multi-protection safe operation

   Equipped with AVR, short-circuit, reverse polarity and overcurrent protection. It safeguards batteries and the whole generator electrical circuit without manual supervision.

5. Fully automatic unattended maintenance

   No daily manual charging required. The charger runs 24/7 automatically, ideal for unmanned backup generator stations like data centers and telecom towers.

6. Wide voltage adaptability

   Works with global standard mains 230V/480V AC input, fits 12V and 24V DC battery systems of all diesel generator brands.
