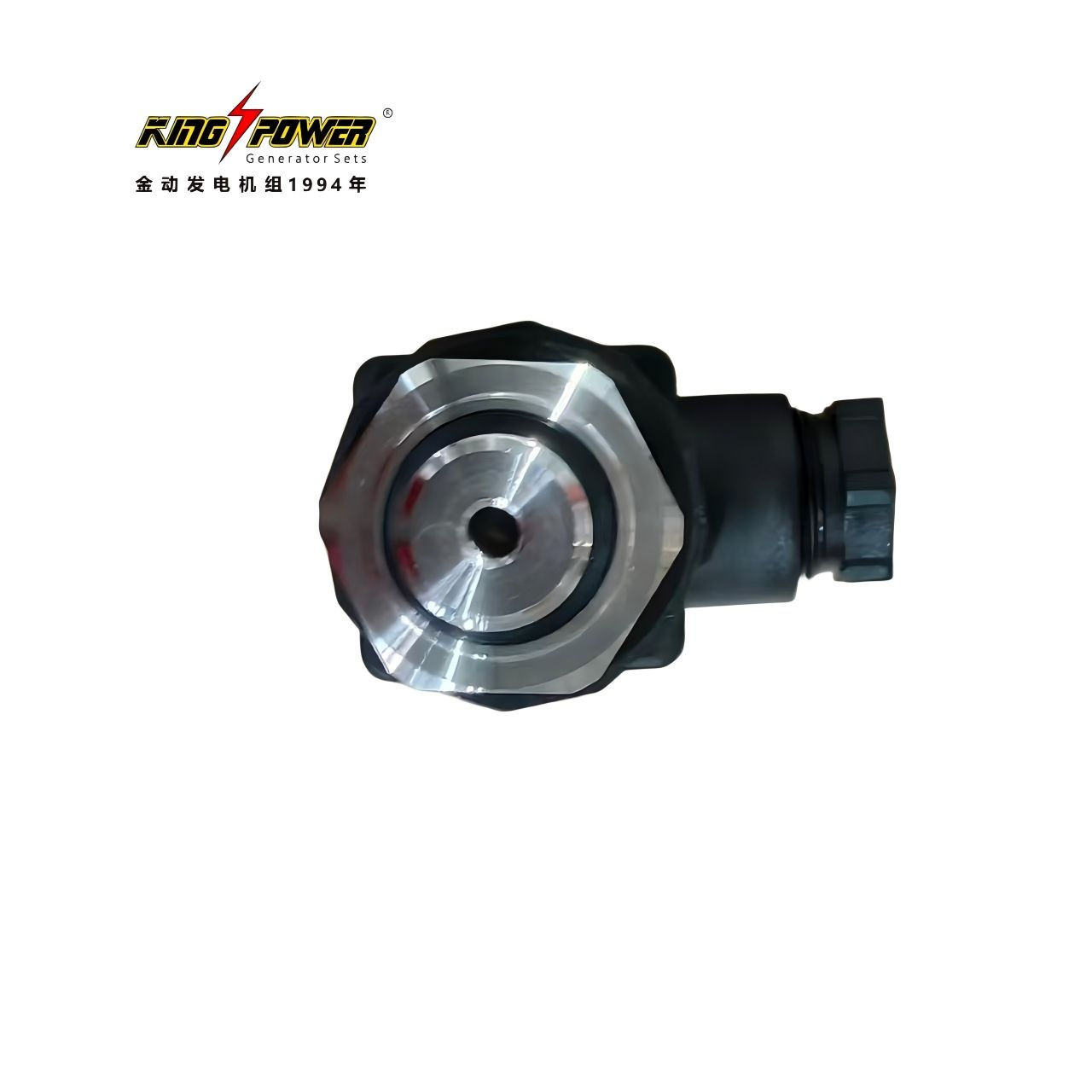

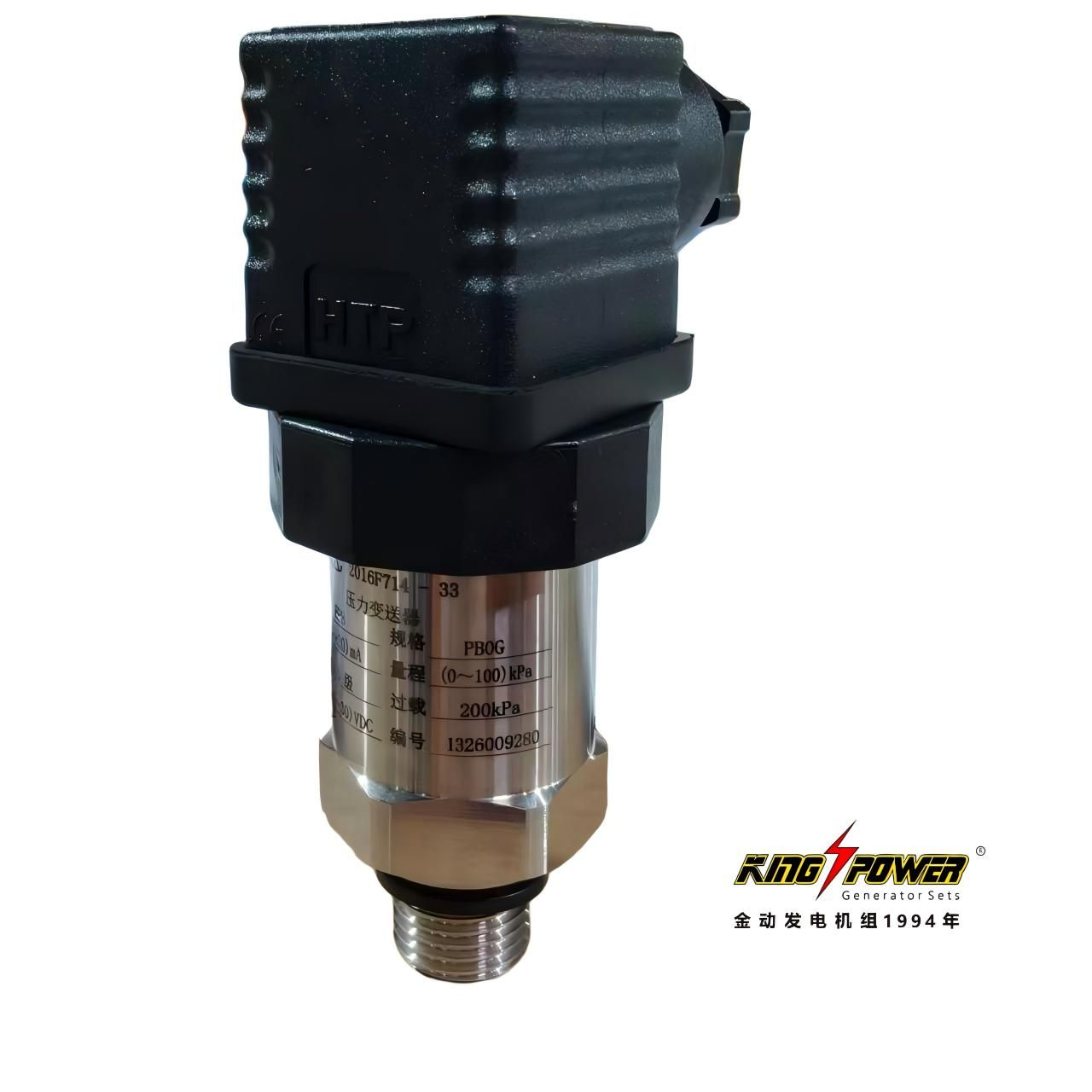

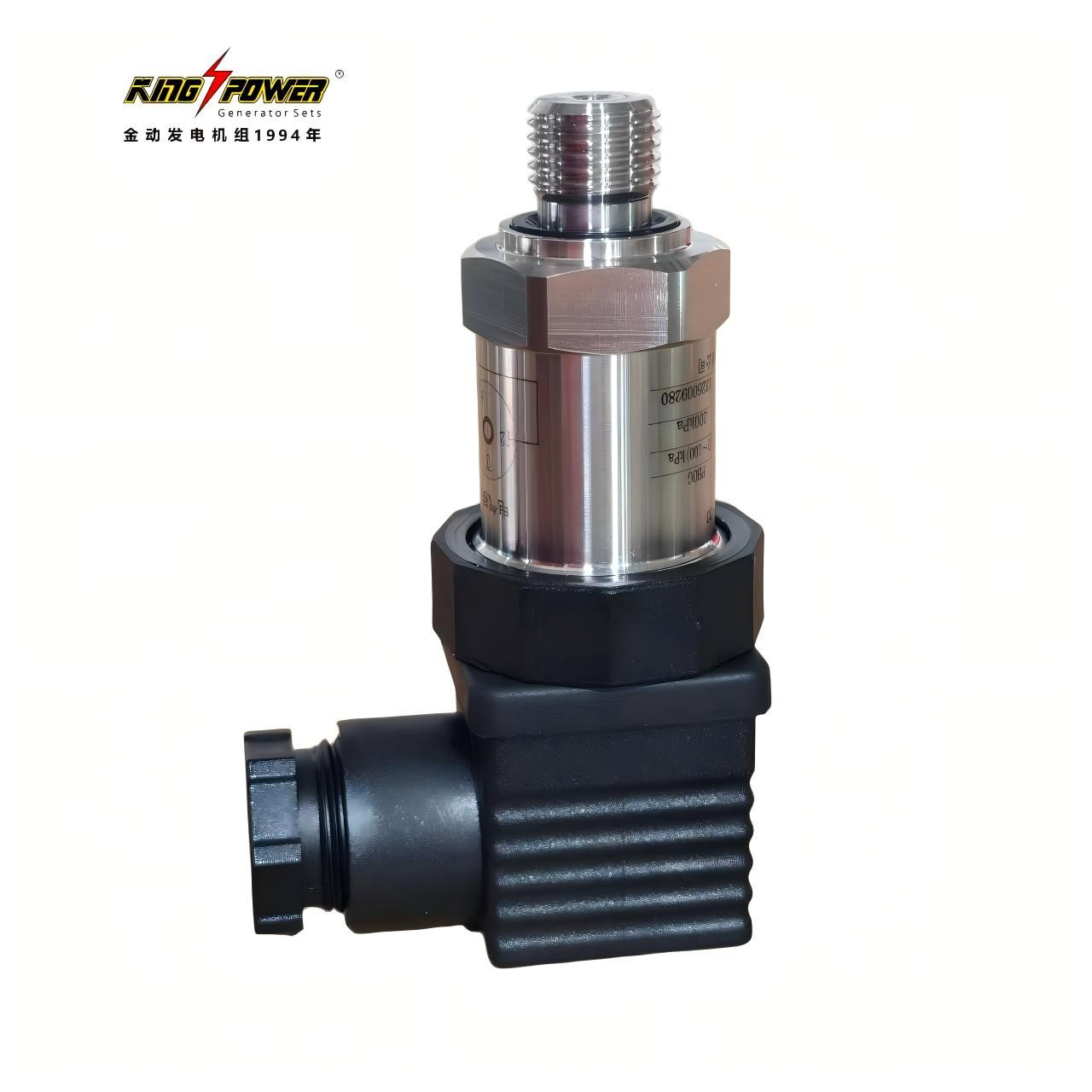

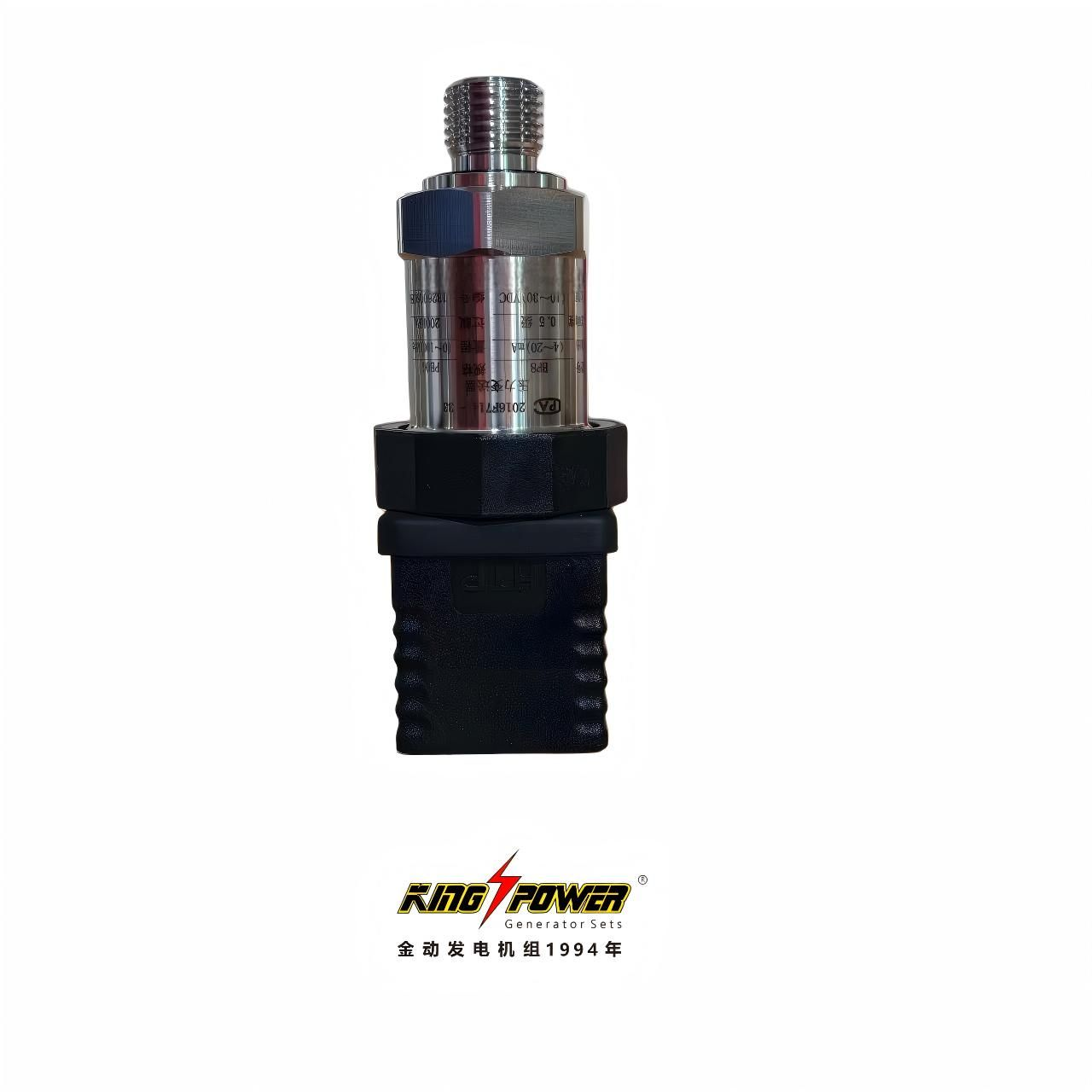

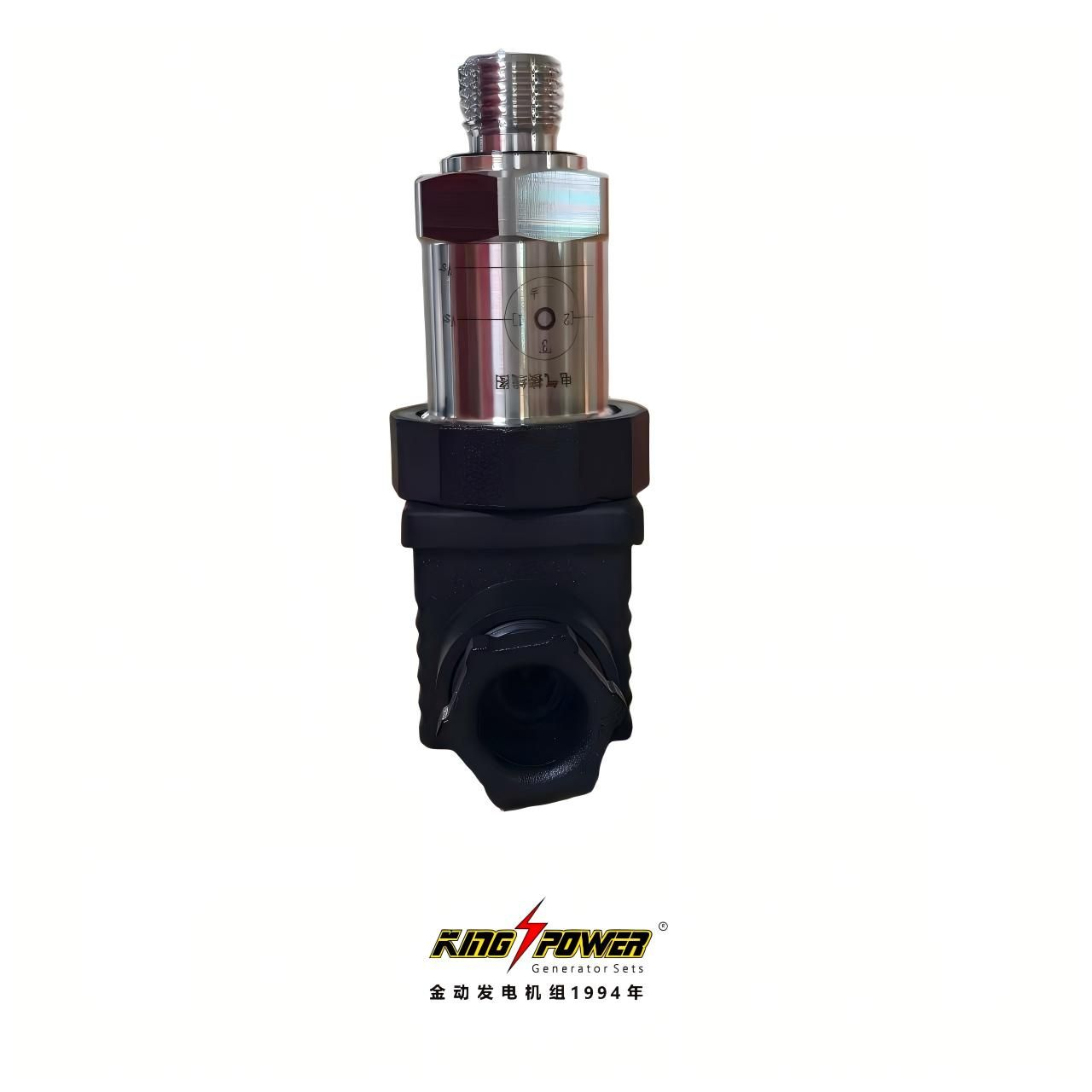

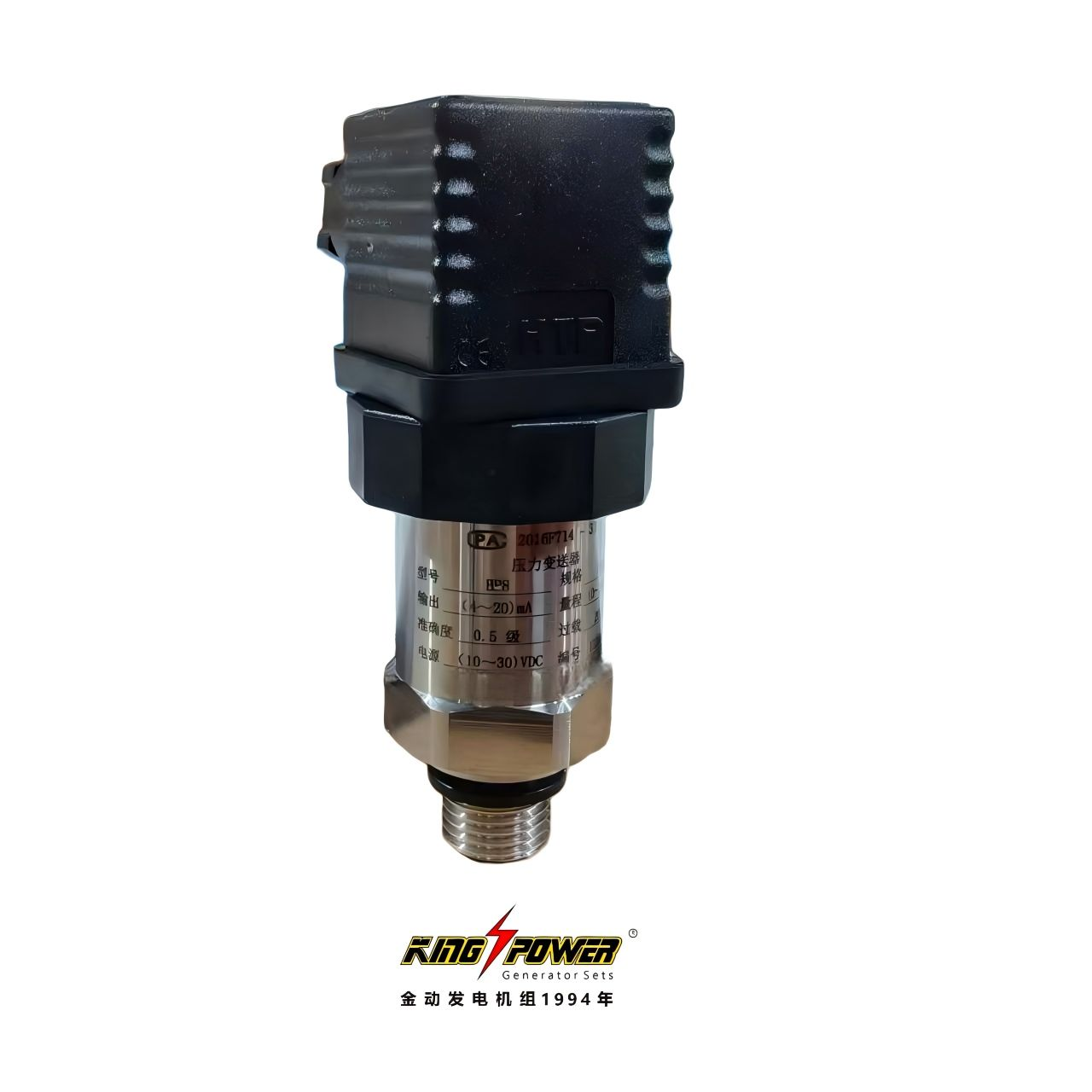

Genset Pressure Transmitter Full Product Knowledge

This high-precision genset pressure transmitter is a 4-20mA industrial sensor built for diesel, natural gas and biogas generator engines. Built around piezoresistive sensing, its stainless steel diaphragm creates controlled elastic deflection, turning physical pressure into linear electrical signals refined via onboard signal conditioning. It tracks lube oil, coolant, exhaust and fuel gas pressure to activate safety engine shutdowns during abnormal readings. Compatible with all mainstream genset brands, this heavy-duty transducer delivers stable, long-term pressure monitoring for secure, cost-effective power generation.

Technical Specifications & Working Mechanism

1. Working Principle

This generator pressure transducer utilizes mature piezoresistive sensing design. Embedded silicon strain gauges shift resistance proportionally under liquid or gas pressure, forming the core measurement foundation for power unit engine monitoring. Ultra-sensitive internal wafers capture minute pressure fluctuations instantly, producing consistent, repeatable readings to stabilize generator running performance.

2. Pressure Application Scenarios

This engine pressure sensor delivers round-the-clock monitoring of lubrication oil, biogas pipeline, exhaust back and cooling circuit pressure. It fits stationary diesel power units alongside natural gas and biogas gensets from all leading manufacturers. It covers every vital pressure measurement demand of power generation engines with cross-fuel universal compatibility.

3. Mechanical Deflection

A precision stainless steel isolation diaphragm creates tiny elastic deformation under pressure loads. Restrained mild bending avoids permanent material fatigue, sustaining steady sensing through unstable generator load cycles. The thin elastic metal membrane reacts smoothly to pressure spikes without wear, retaining precise measurement accuracy over years of continuous heavy operation.

4. Conversion to an Electrical Signal

Diaphragm bending modifies resistance inside the internal Wheatstone bridge, translating physical pressure force into weak raw electrical signals with linear proportionality to actual pressure values. It turns invisible mechanical pressure into measurable digital data to feed generator control panels and fault alert systems.

5. Signal Conditioning

Onboard circuit modules filter signal noise, amplify weak raw data and complete precision calibration, outputting standardized 4–20mA DC signals compatible with genset controllers, industrial PLCs and generator data loggers. Unstable raw detection signals are refined into universal industry-standard output for seamless integration with all generator monitoring automation hardware.

Core Applications on Diesel & Gas Generator Sets

Pressure transmitters act as the real-time sensing “eyes” of genset control systems, tracking shifting pressure metrics, supplying accurate electrical feedback, and protecting uninterrupted, safe power generation.

Applications for Diesel Generator Sets

• Engine Lubrication Pressure Monitoring: Identifies abnormal oil pressure to trigger alarms or automatic shutdowns and prevent costly engine friction damage.

• Diesel Fuel System Pressure Tracking: Reads pipeline pressure and tank hydrostatic pressure to deliver constant, accurate fuel level data.

• Exhaust Back Pressure Detection: Detects blocked piping and carbon buildup to retain engine power and reduce fuel waste.

• Cooling System Pressure Supervision: Monitors coolant circuit pressure to stop overheating shutdowns during heavy load operation.

Applications for Gas Generator Sets (Natural Gas / Biogas)

• Inlet Fuel Gas Pressure Monitoring: Maintains stable air-fuel mixing; low pressure causes power dropouts while high pressure signals regulator malfunction.

• Gas Pipeline Fault Early Warning: Detects subtle pressure shifts to spot hidden pipe leaks or faulty valve components.

• Engine Lubrication Protection: Sustains steady lube pressure to extend the service lifespan of gas engine internal parts.

• Hazardous Zone Safe Operation: Explosion-proof transmitter variants eliminate spark risks for flammable biogas and natural gas working environments.
