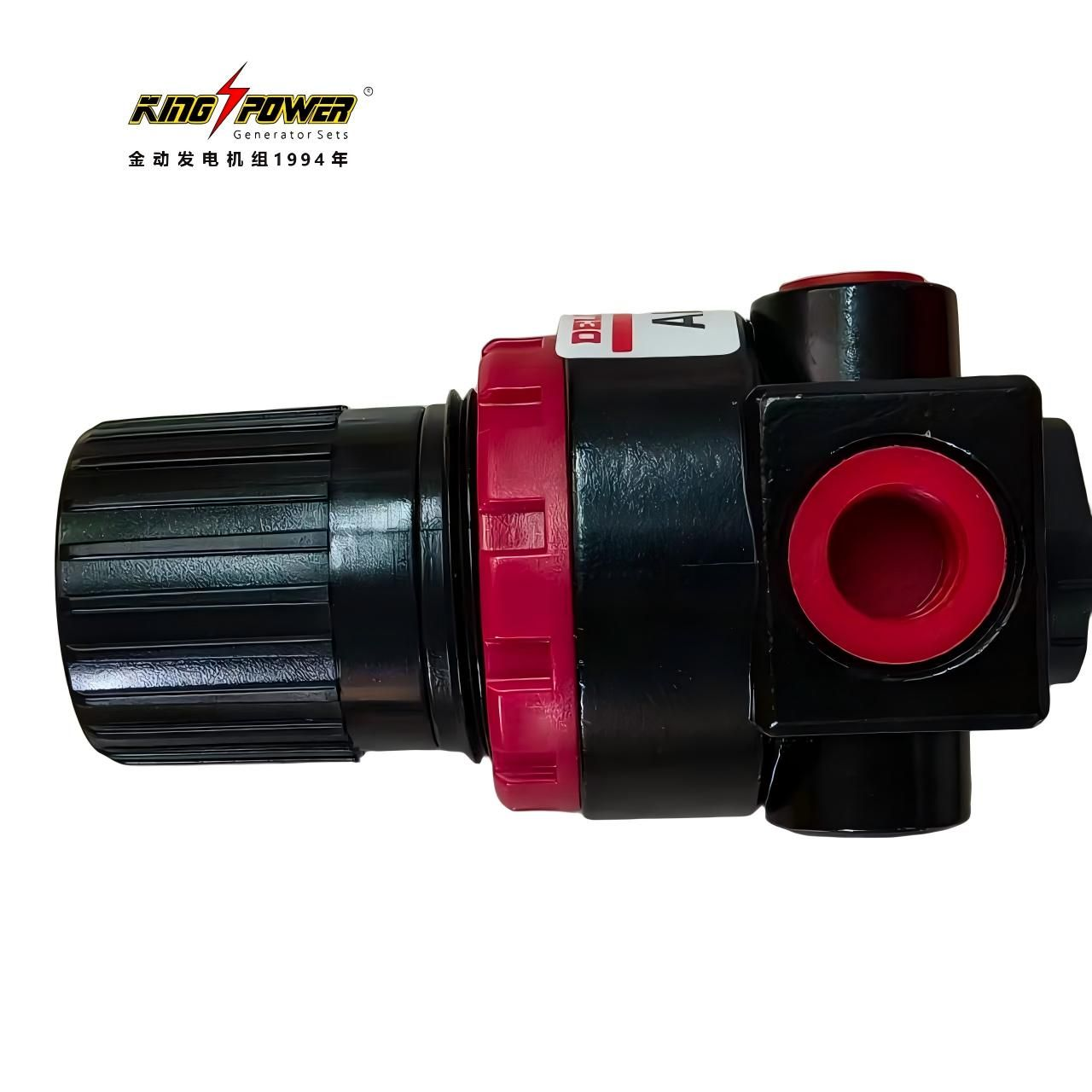

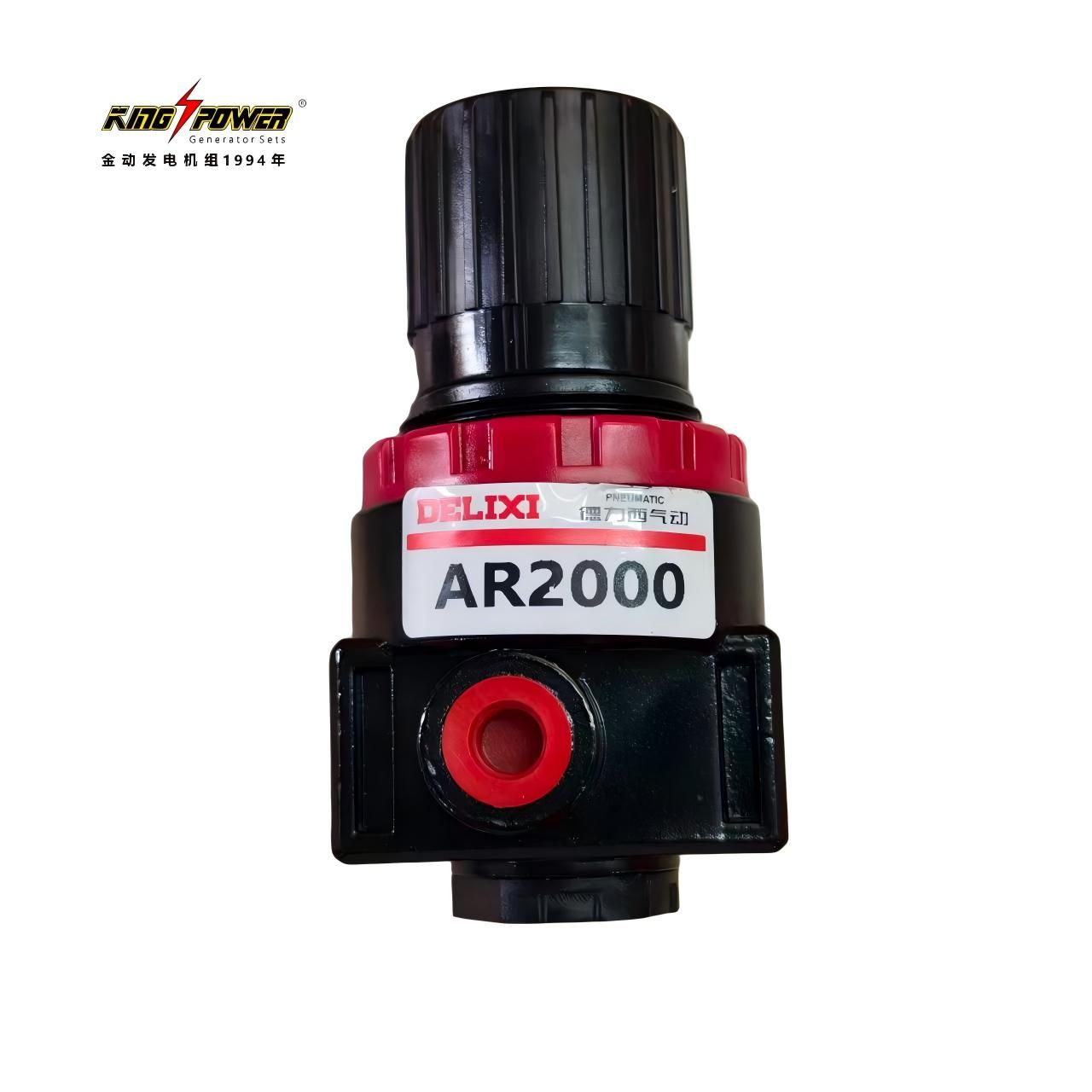

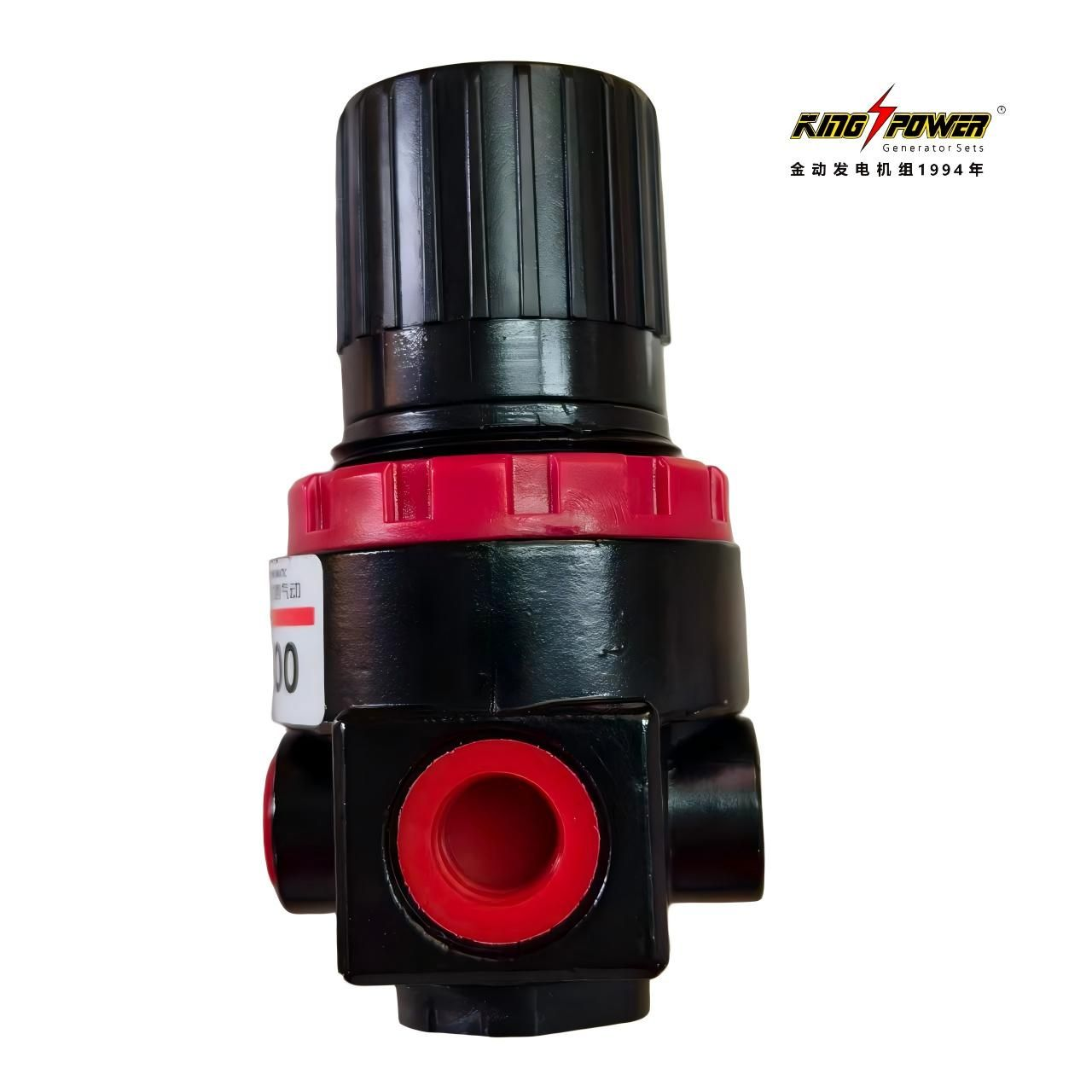

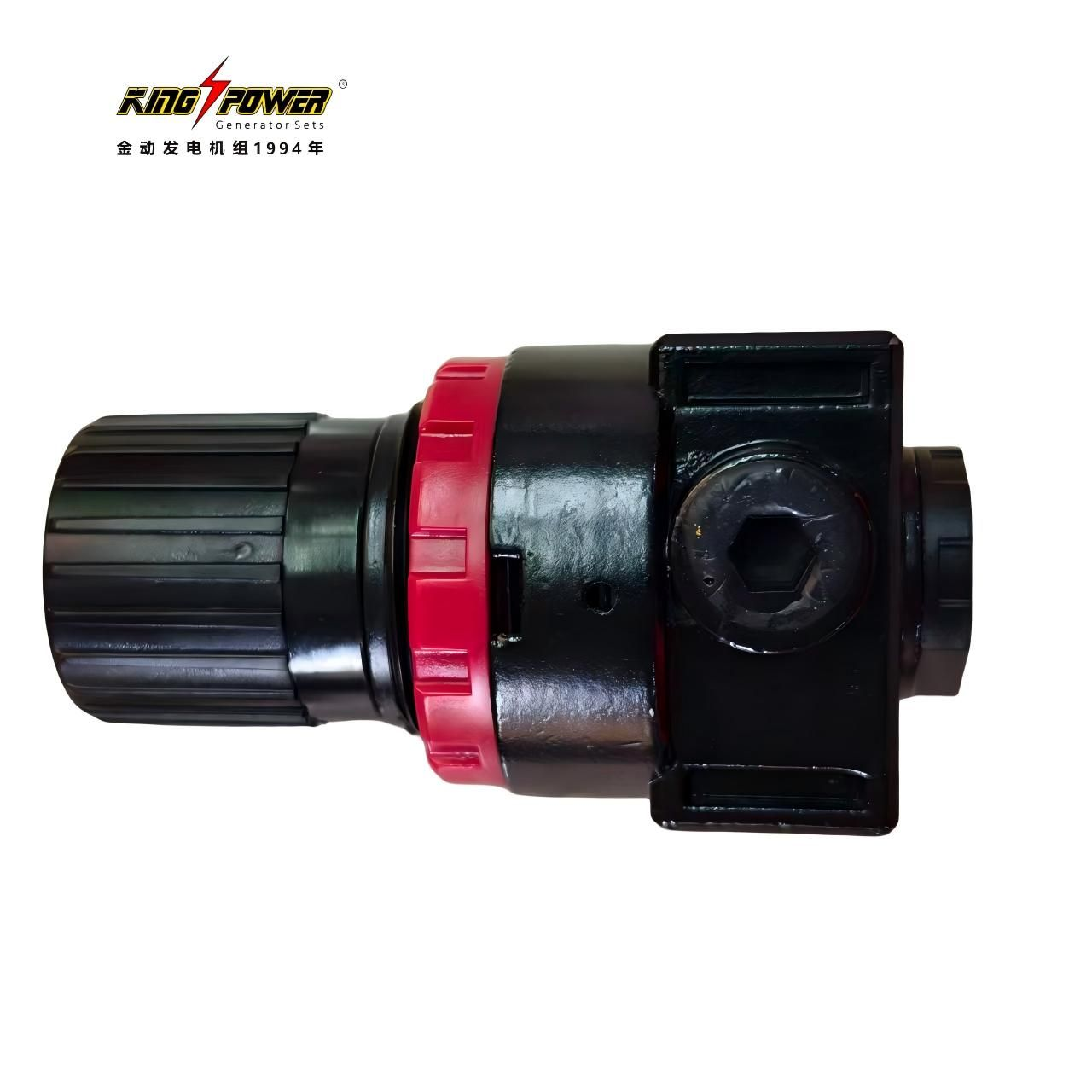

Pneumatic Pressure Regulator for Gas Generators

Product Introduction

Industrial pneumatic gas pressure regulator serves as critical genset hardware to lower and balance incoming fuel gas pressure within gas engine pipeline systems. This gas pressure reducing component maintains steady preset output pressure for downstream generator machinery, even when inlet gas supply surges or fuel consumption levels shift constantly. Units supporting a 0–150 kPa working range belong to high-precision gas engine spare parts, perfectly suited for low-pressure industrial power equipment that demands strict, accurate fuel pressure control during continuous operation.

Working Principle

The working mechanism of a pneumatic gas pressure reducing valve follows a force balance rule relying on the interplay between built-in springs and fuel gas force applied to the internal diaphragm. This gas engine pressure regulator assembly includes a valve main body, sensing diaphragm, adjustment spring and flow control poppet valve.

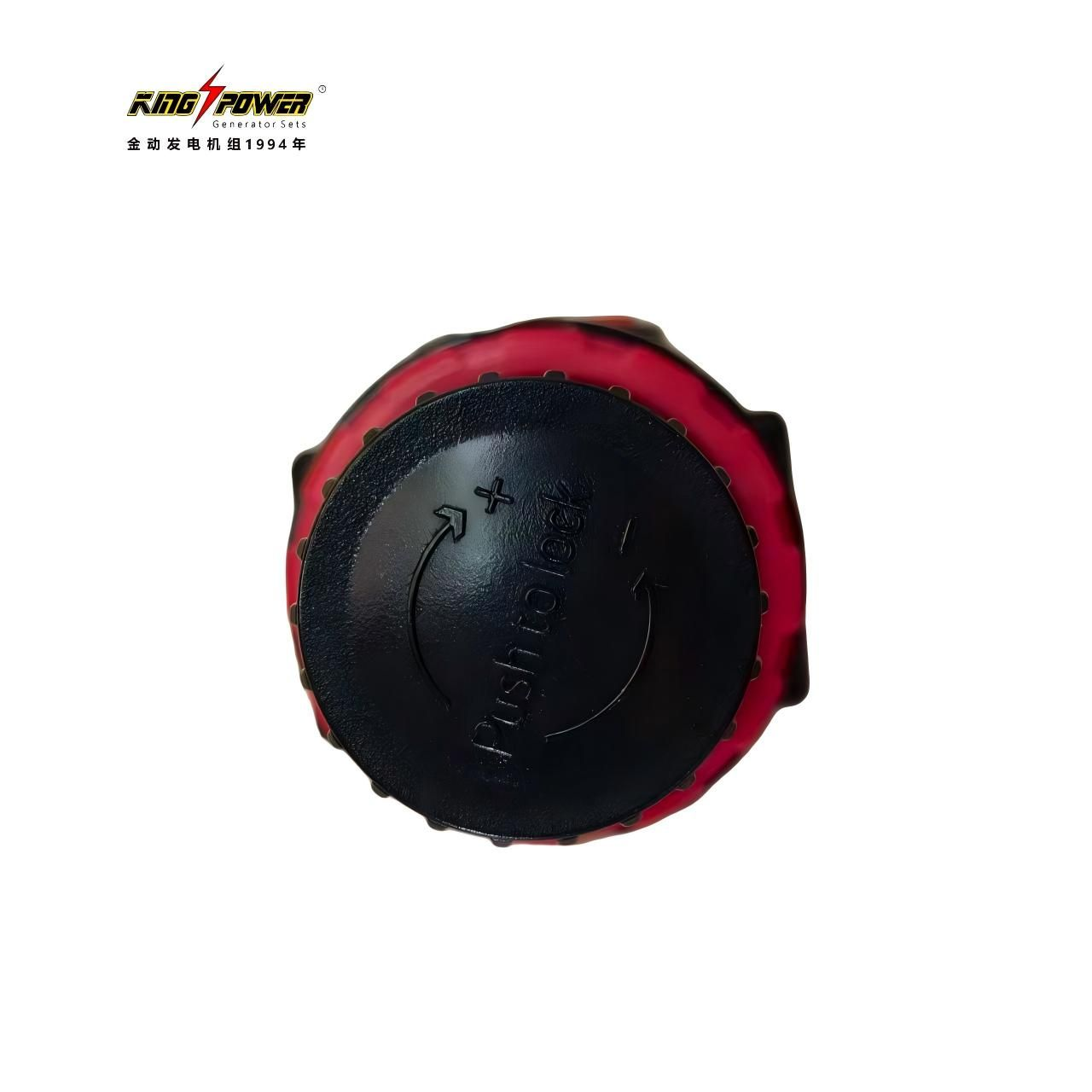

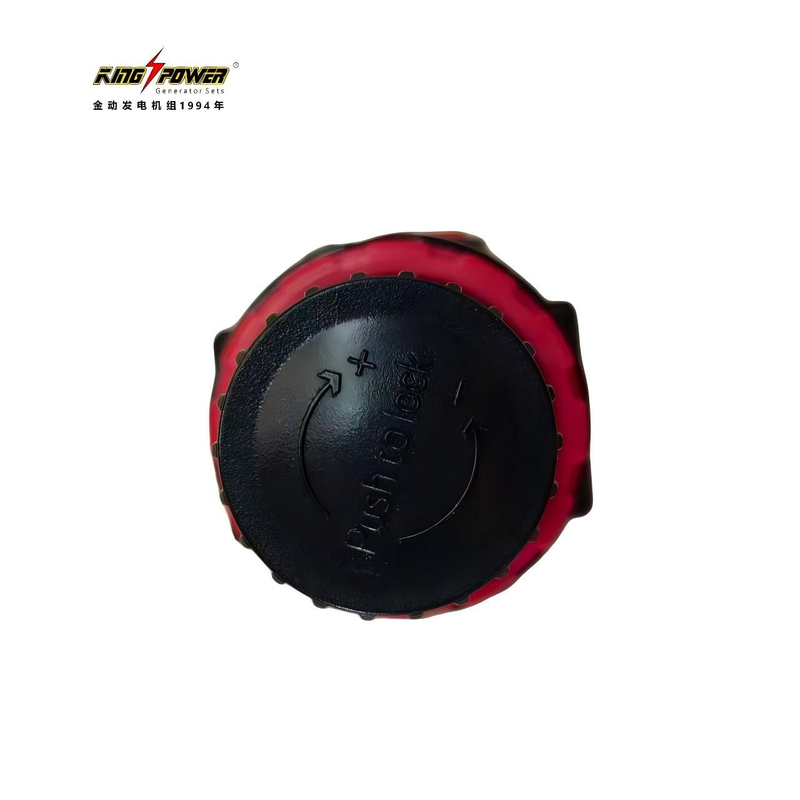

Rotating the adjustment knob compresses the inner spring, which drives the diaphragm to lift the poppet valve and deliver steady fuel gas toward downstream generator components. Outlet gas pressure circulates back via a built-in sensing passage to the diaphragm’s bottom surface. When output pressure climbs close to your preset value, counter gas force pushes the diaphragm upward against spring tension, partially shutting the poppet to limit gas throughput.

Rising fuel demand from gas genset machinery will pull down outlet pressure; weaker counterforce on the diaphragm lets the spring push the membrane down and reopen the valve to recover stable working pressure. Once outlet gas surpasses your set standard (caused by downstream pipeline blockages or equipment stall), surplus gas pressure lifts the diaphragm and releases extra pressure via the integrated relief vent. This real-time feedback cycle keeps fuel gas output pressure consistently stable for continuous gas generator operation.

Applications for Gas Generator Sets

For industrial gas gensets and gas turbine power units, pneumatic fuel gas pressure regulators get installed on fuel supply pipelines to deliver steady, calibrated gas pressure to internal combustion assemblies. The 0–150 kPa working specification fits low-pressure gas pipeline assemblies that feed generator burners and pilot ignition modules perfectly.

This pressure reducing component downgrades high inlet fuel pressure into accurate low-pressure output to support secure, high-efficiency fuel combustion. It offsets unstable incoming gas pressure and shifting fuel consumption demands, keeping the gas genset running under optimal performance parameters.

Besides fuel delivery pipelines, this pneumatic regulating component also serves generator sealing oil circuits and pneumatic actuator control assemblies. Consistent gas and air pressure maintained by the regulator is essential to guarantee long-term stable operation of the whole power generation unit.

Advantage

• Stable Fuel Gas Output Pressure

  This pneumatic pressure reducing valve balances fluctuating inlet gas supply, delivering constant calibrated pressure to gas engine combustion parts. It eliminates pressure surges that damage burners, protecting your gas generator set and extending unit service life.

• Boost Generator Combustion Efficiency

  By precisely lowering gas pressure to the 0–150 kPa ideal range, the regulator enables full fuel combustion. It cuts gas waste, reduces fuel costs, and keeps gas turbine gensets running at optimal power output without power dips.

• Automatic Pressure Compensation & Overpressure Protection

  Built-in diaphragm feedback structure self-adjusts gas flow as fuel demand rises or falls. A relief vent releases excess pressure during pipeline blockages to avoid pipe rupture and prevent gas engine shutdown failures.

• Multi-Scenario Compatibility for Genset Systems

  Works seamlessly on fuel gas pipelines, sealing oil loops and pneumatic actuator control circuits of all gas generator models. Suitable for biogas, natural gas and industrial mixed fuel gas low-pressure gas trains.

• Low Maintenance & High Precision

  Compact all-in-one valve body with durable diaphragm and adjustment spring offers long service cycles. It maintains ultra-accurate low-pressure control with minimal wear, lowering your genset spare part replacement frequency.

• Improve Overall Unit Operational Safety

  Steady controlled gas pressure avoids incomplete combustion, backfire and abnormal heat inside the gas engine. It stabilizes pilot burner operation to reduce hidden safety hazards for continuous power generation.

Conclusion

In summary, the pneumatic pressure regulating valve stands as an essential precision component for modern gas generator sets and gas turbine power systems, delivering accurate, stable, and reliable fuel gas pressure control throughout continuous industrial operation. Built on a reliable spring and diaphragm force-balance working principle, this high-performance pressure reducing valve effectively stabilizes fluctuating inlet gas pressure, automatically adjusts gas flow output, and relieves overpressure conditions to maintain consistent 0–150 kPa low-pressure working standards for genset combustion systems. By precisely regulating fuel gas supply for generator burners and pilot ignition units, the equipment eliminates unstable pressure issues, optimizes fuel combustion efficiency, reduces energy waste, and prevents common operational faults such as engine backfire, power output fluctuation, and pipeline overload. Beyond core fuel gas pipeline regulation, this versatile pneumatic control part also supports stable operation of generator sealing oil systems and pneumatic actuator control assemblies, ensuring the entire power generation unit runs safely and smoothly under varying load and supply conditions. Featuring durable structure, automatic feedback adjustment, low maintenance requirements, and wide compatibility with natural gas and biogas genset equipment, this pneumatic gas pressure regulator greatly improves overall generator operational safety, working efficiency, and service lifespan. As a critical gas engine spare part, it remains an indispensable solution for stable, cost-effective, and long-term industrial power generation system operation.
