How It Works

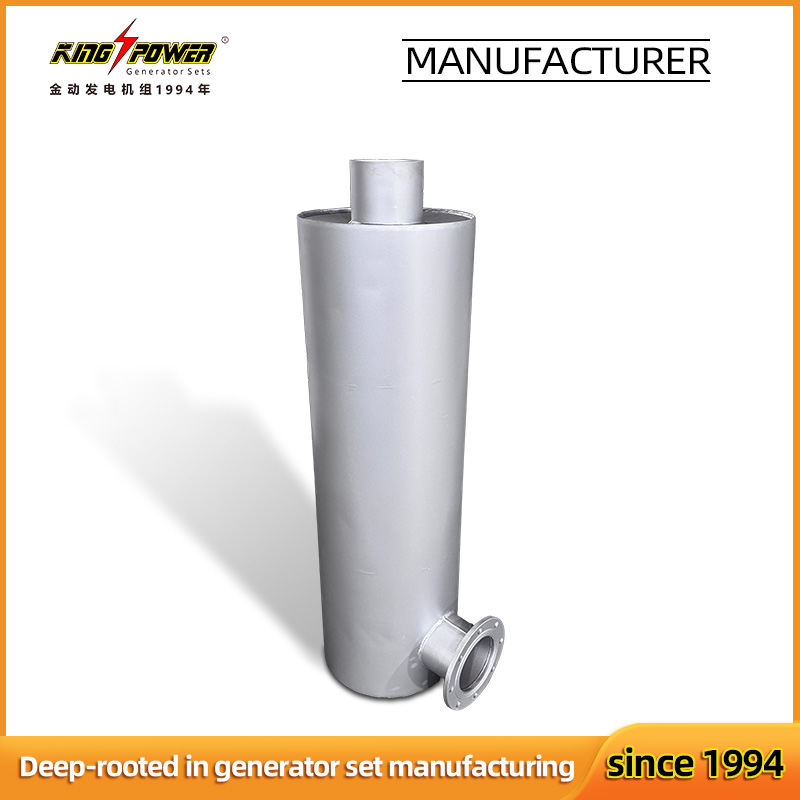

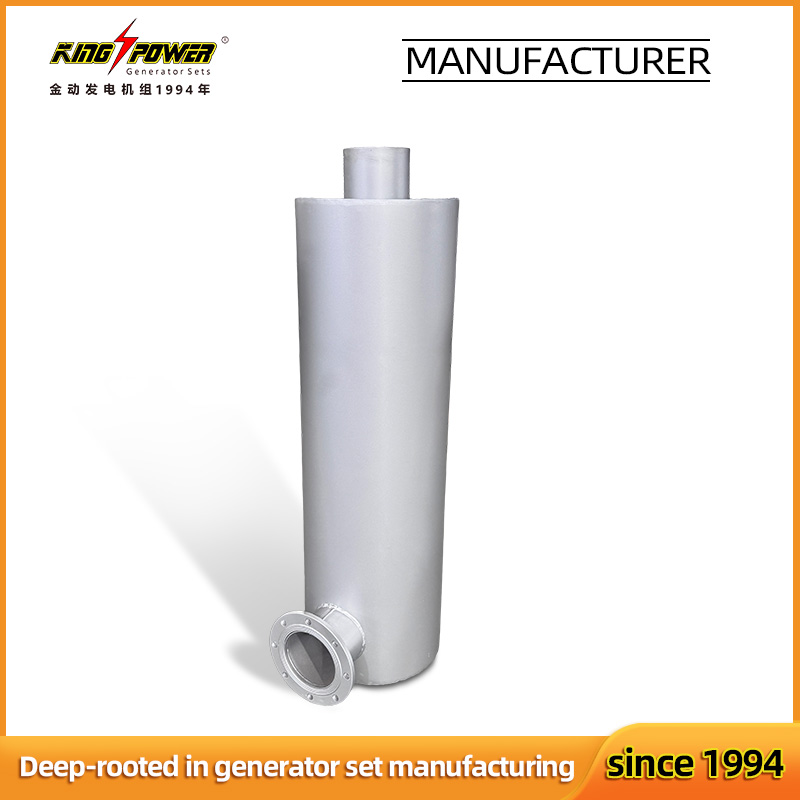

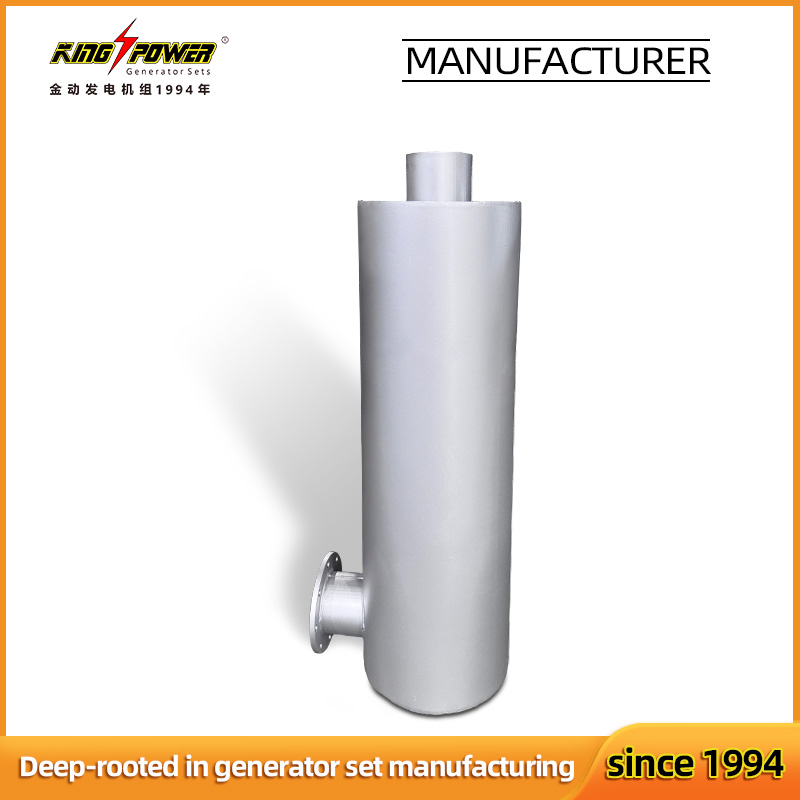

Our high-efficiency industrial generator muffler (silencer) cuts exhaust noise for gas and diesel gensets by leveraging three core acoustic attenuation technologies: dissipative sound absorption, reactive wave reflection, and phase destructive interference. This triple-stage design balances powerful noise suppression with minimal exhaust backpressure to preserve generator performance.

(1) Dissipative Sound Absorption (Combination Absorptive-Reactive Design)

Inside the industrial silencer, perforated flow tubes wrap thick porous acoustic fill including high-temperature fiberglass and mineral wool. When hot, pressurized exhaust from gas or diesel generator engines streams through perforated openings, sound pressure waves penetrate the fibrous media. Continuous friction between air particles and absorbent fibers converts harmful acoustic energy into mild thermal energy, effectively dampening sharp mid-to-high frequency exhaust roar typical of running gensets.

(2) Reactive Sound Reflection (Multi-Chamber Reactive Architecture)

The muffler’s internal layout features segmented baffles, expansion voids and redirect chambers tailored for generator exhaust systems. As exhaust gas expands, twists and collides against internal metal walls, engine-originated sound waves bounce backward toward the combustion source. This reflective mechanism targets deep low-frequency rumble from diesel and gas generator operation, forming passive noise cancellation identical to commercial active sound reduction tech.

(3) Phase Destructive Wave Interference

Precision-split flow ducts route generator exhaust into multiple pathways with custom unequal lengths. This design creates sound pressure waves offset by a full 180-degree phase shift as gas streams travel separate internal routes. Upon merging downstream, opposing wave peaks and troughs neutralize one another, eliminating dominant engine noise frequencies and delivering comprehensive noise attenuation across the full operating spectrum of industrial generator sets.

Core Functions of High-Efficiency Industrial Generator Muffler & Silencer

A heavy-duty exhaust silencer, widely known as a generator muffler, serves an irreplaceable role for gas and diesel generator sets by suppressing loud exhaust noise created during continuous engine running. Conventional diesel genset power units like Cummins 4BT produce intense pressure pulses from fast-released combustion waste gas. Operating a generator without a matched industrial silencer will push noise readings up to 100–110 decibels, which damages workers’ hearing and fails local environmental noise emission standards.

Below are four vital integrated functions of our generator exhaust muffler:

1. Powerful Exhaust Noise Attenuation

   This industrial silencer cuts harsh engine noise to compliant decibel ranges. Based on different silencer efficiency grades, it can lower operating sound volume to a safe 70–90 dB, meeting workplace and outdoor power station noise control demands.

2. Safe Redirection of Hot Exhaust Fumes

   The muffler’s structured pipeline guides high-temperature exhaust gas far from generator equipment, on-site staff and surrounding facilities, avoiding heat scald risks and toxic gas accumulation.

3. Built-In Spark Arrestor (Optional Spec Models)

   Select generator silencer variants come with integrated spark arrestment structures. They trap glowing carbon particles and open sparks before exhaust discharge, effectively cutting fire risks for construction sites, mines and flammable working zones.

4. Controlled Exhaust Backpressure Regulation

   Precision internal chamber design balances exhaust backpressure within a reasonable range. It eliminates excessive gas resistance to sustain stable genset power output, optimize combustion efficiency and lower extra fuel consumption for both diesel and gas generator sets.
